BMX Seats & Seatposts Explained

BMX Seating Quick Guide

Pivotal: The most common modern BMX seat system, with the seat angle adjustable using the teeth in the seat and post.
Stealth Pivotal: A cleaner Pivotal setup where the fixing bolt is accessed from underneath the seat.
Tripod: A lightweight, clean-looking alternative to Pivotal using a different mounting system.
Railed: Traditional seat rails with a compatible railed seatpost.
Combo: The seat and post are combined as one unit.
Seat thickness: BMX seats are commonly described as slim, mid or fat.
Seatpost diameter: 25.4mm is the standard size on most modern freestyle BMX frames, but other diameters are available.

BMX Seats

BMX seats come in hundreds of shapes, colours and designs, but the first thing to check is the mounting system. A Pivotal seat needs a compatible Pivotal post, a Tripod seat needs a Tripod post, and a railed seat needs a railed post.

You'll also see BMX seats described as slim, mid or fat. A slim seat keeps things minimal and out of the way, while mid and fat seats provide more material between your legs and can be easier to grip with your knees during tricks.

Seat thickness is largely down to riding style, comfort and the look you prefer.

SHOP BMX SEATS →

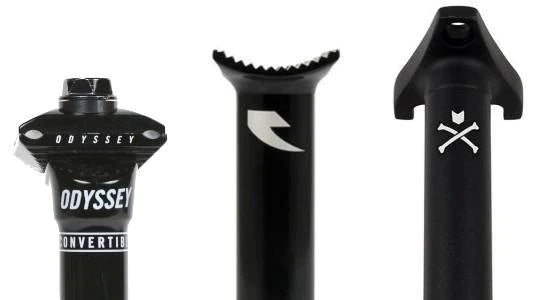

Pivotal Seats & Seatposts

Pivotal is the most common seat and seatpost system on modern freestyle BMX bikes.

The seat and post have matching teeth which allow the seat angle to be adjusted before the centre bolt is tightened. This gives you plenty of adjustment whether you prefer the seat level, nose up or nose down.

Traditional Pivotal seats have an access hole through the top of the seat so the fixing bolt can be tightened with an Allen key.

SHOP BMX SEATS →   |   SHOP BMX SEATPOSTS →

Stealth Pivotal

Stealth Pivotal uses the Pivotal mounting system but moves access to the fixing bolt underneath the seat. This removes the need for the traditional access hole through the top of the seat and gives a cleaner finish.

Stealth Pivotal posts can also be compatible with regular Pivotal seats, making them a useful option if you want to change between the two styles.

Always check the individual seat and post description if you're unsure about compatibility.

Tripod Seats & Seatposts

Tripod is another BMX-specific seat mounting system designed to give a simple, lightweight and clean-looking setup.

Tripod seats need to be used with a compatible Tripod seatpost. They aren't interchangeable with Pivotal or railed systems.

Tripod offers less angle adjustment than Pivotal, but for riders who know how they want their seat positioned it provides a very neat setup.

Railed Seats & Seatposts

Railed seats use the traditional twin-rail system found on bikes for decades. A compatible railed seatpost clamps around the rails underneath the seat.

Although less common on modern freestyle BMX bikes than Pivotal, railed seats are still used for old school builds, race bikes and riders who prefer the extra adjustment a railed system can offer.

Some premium railed BMX seats also use lightweight materials such as titanium rails.

Seat & Seatpost Combos

A seat and seatpost combo combines the seat and post into one unit. They're simple, lightweight and remove the need to match a separate seat to a seatpost system.

The trade-off is that the seat can't normally be swapped independently from the post and adjustment is limited compared with systems such as Pivotal.

SHOP SEAT & SEATPOST COMBOS →

BMX Seatpost Diameter

25.4mm is the standard seatpost diameter used by most modern freestyle BMX frames and seatposts.

However, not every BMX, race, dirt jump or MTB-style frame uses 25.4mm. Other diameters are available, including larger diameter posts such as Gusset MTB Pivotal seatposts.

Always match the outside diameter of the seatpost to the seat tube size required by your frame. If you're unsure, check the frame specification before ordering.

SHOP SEATPOSTS →

Seatpost Length

BMX seatposts are available in a wide range of lengths. Short posts are ideal if you want to run the seat low or slammed, while longer posts give you much more height adjustment.

Longer posts can be particularly useful on larger BMX bikes, race bikes, dirt jump bikes or when you want to raise the seat for cruising.

Remember that a seatpost still needs enough of the post inserted into the frame to be used safely – always follow the post's minimum insertion marking.

Layback Seatposts

A layback seatpost positions the seat further back than a straight post.

They're particularly popular on old school BMX builds and can also be useful when a rider wants a little more room between the seat and handlebars. As with any post, check the diameter and seat mounting system before buying.

BMX Seat Clamps

The seatpost needs to be held securely inside the frame. How this is done depends on the frame design.

An integrated seat clamp is built directly into the frame, so you don't need to fit a separate clamp around the outside of the seat tube.

Other frames use a separate seat clamp which fits around the top of the frame and tightens onto the seatpost.

Many modern BMX frames use a simple seat pin to pull the frame together and secure the seatpost, while some specialist frames and setups may use other systems such as a wedge post.

Check the frame before ordering a separate clamp – if the frame already has an integrated seat clamp, you don't need one.

SHOP SEAT CLAMPS & BOLTS →

Before Buying a BMX Seat or Seatpost

Check these three things first: seat mounting system, seatpost diameter and how your frame clamps the post.

If you're replacing only the seat, make sure it matches your existing post. If you're replacing the post, check both the seat system and the diameter required by your frame.

If you're still unsure, contact Waller BMX and we'll help you work out what fits.
