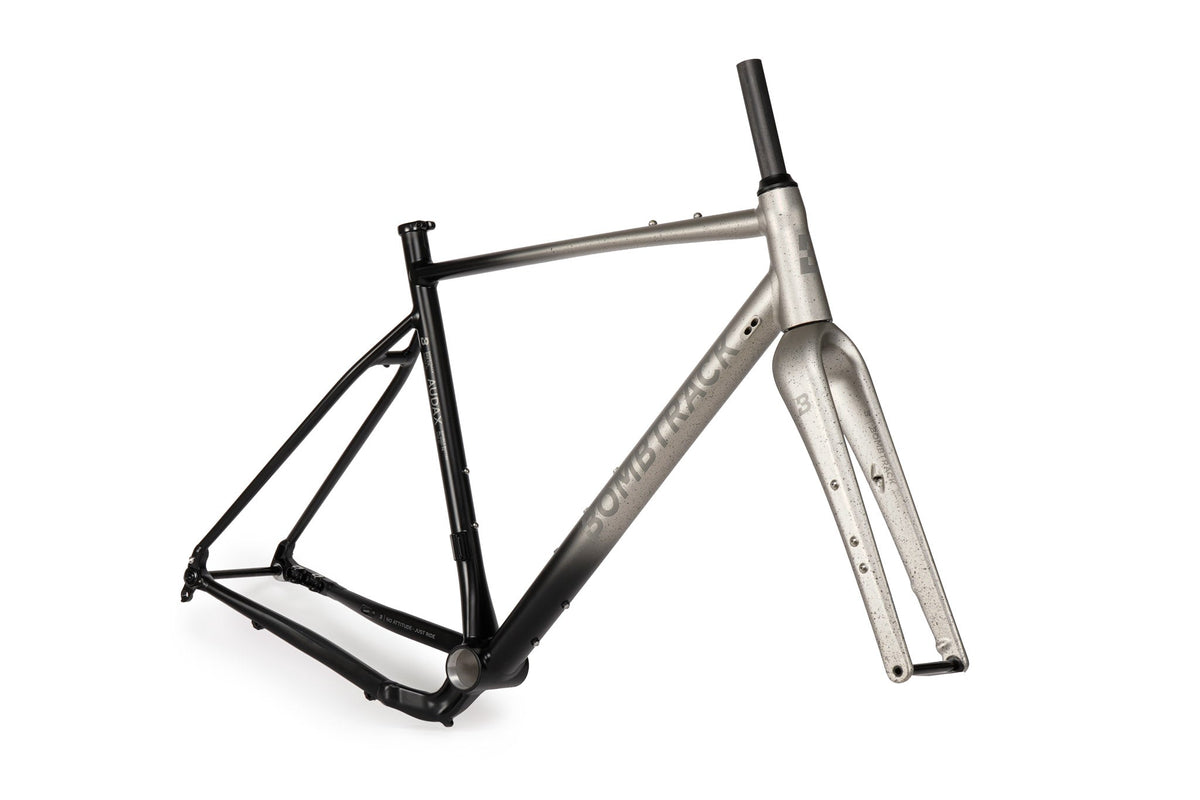

BOMBTRACK Audax AL Frame Fork Set
£979.00
Dispatch & delivery
Checking dispatch time…
Then add UK courier delivery:
Standard tracked: 2–4 working days after dispatch
FedEx Express: 1–2 working days after dispatch
Express delivery does not shorten this wait.
Currently out of stock Use “Notify me when available” below to be notified when this item is back in stock.
The BOMBTRACK Audax AL Frame Fork Set is a lightweight aluminium road and endurance frame set designed for fast riding over mixed road surfaces. It combines a double-butted aluminium frame with a full carbon fork and supports wide tyre clearance, multiple mounting points, and modern thru-axle standards for stability and efficiency.
- Frame material: 6061-T6 double-butted aluminium
- Fork material: full carbon
- Bottom bracket: T47 (86.5 mm shell width)
- Headset standard: IS42 / 28.6 and IS52 / 40 (1 1/8" – 1 1/2")
- Headset type: sealed integrated headset
- Headset crown race angle: 36°
- Front axle: 12 × 100 mm thru-axle
- Rear axle: 12 × 142 mm thru-axle
- Seatpost diameter: 27.2 mm
- Seat clamp: 31.8 mm (Bombtrack Prime)
- Max rider weight: 120 kg (including luggage)
- Riding category: ASTM condition 2 / Road standard
- Frame weight: 1810 g (size M, incl. hardware)
- Fork weight: 530 g (incl. thru-axle)
- Mounts: mudguard mounts on frame and fork
- Additional mounts: multiple cargo/bottle cage mounting points
- Max tyre clearance (frame/fork): 650B × 50C or 700C × 35C
- Max chainring (1x): 42T (45 mm chainline)
- Max chainring (2x): 50/34T (43.5 mm chainline)
- Front derailleur compatibility: yes
- Brake mounts: Flat Mount front and rear (140 / 160 mm)
- Max rotor size: 160 mm front and rear
- Derailleur hanger: BT-DH-018
- Front thru-axle: BT-TA-F-601
- Rear thru-axle: BT-TA-R-601
- Frame small parts: BT-CR-013
