BOMBTRACK Arise Complete Bike - Previous Model
£1,279.00
Dispatch & delivery
Checking dispatch time…
Then add UK courier delivery:
Standard tracked: 2–4 working days after dispatch
FedEx Express: 1–2 working days after dispatch
Express delivery does not shorten this wait.
Currently out of stock Use “Notify me when available” below to be notified when this item is back in stock.

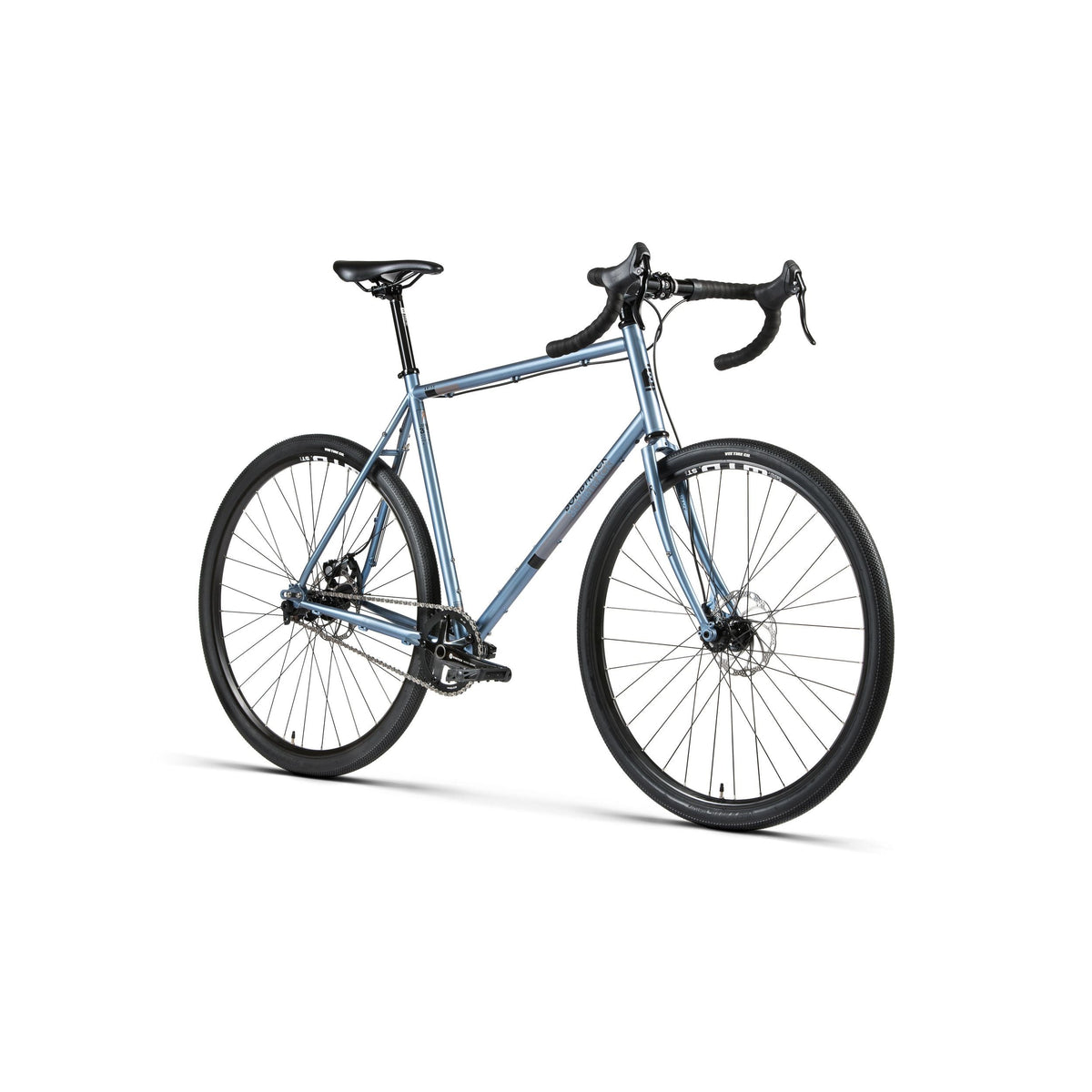

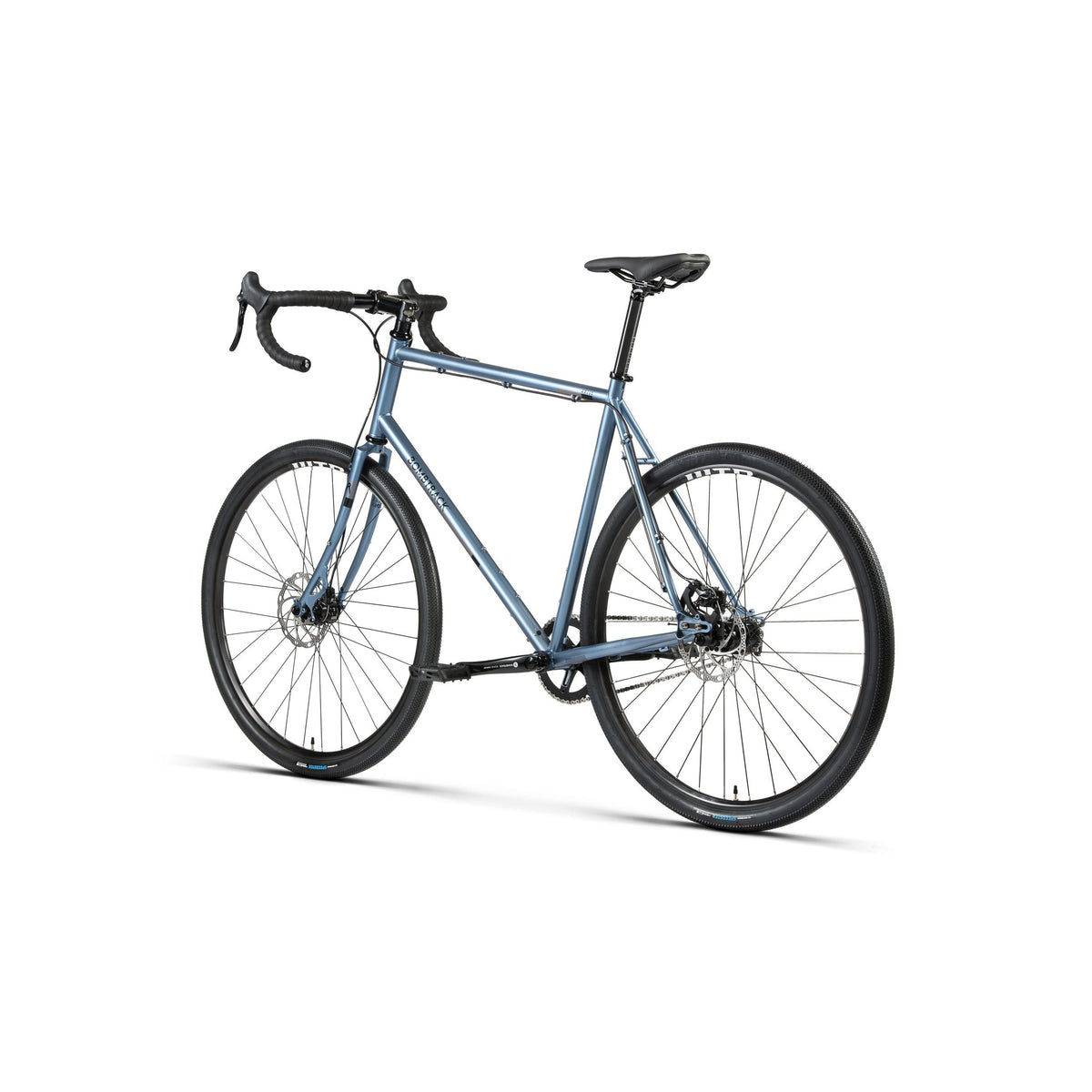

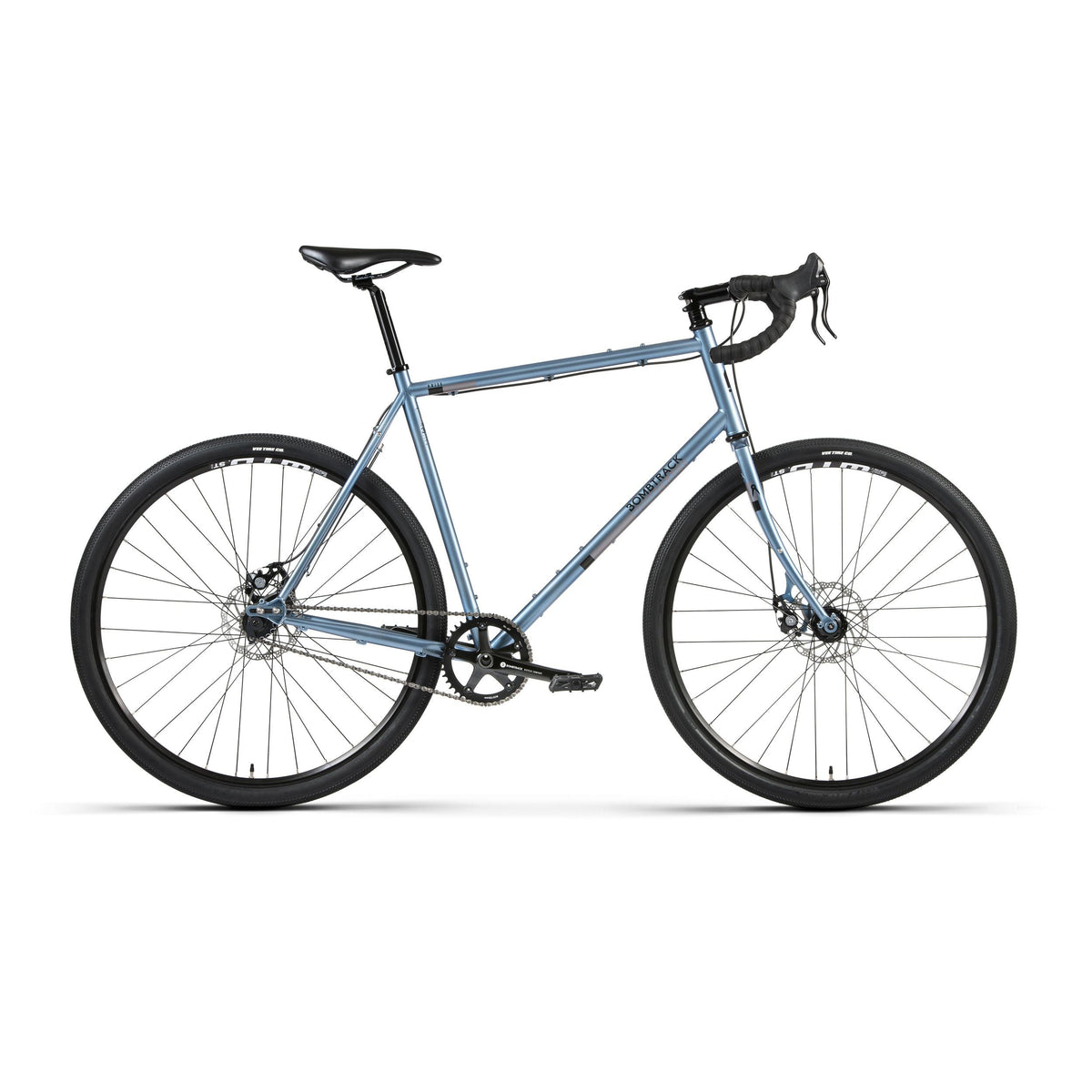

A previous model Bombtrack Arise single-speed drop bar bike, with a 4130 double-butted chromoly frame and fork and Tektro Mira mechanical disc brakes.

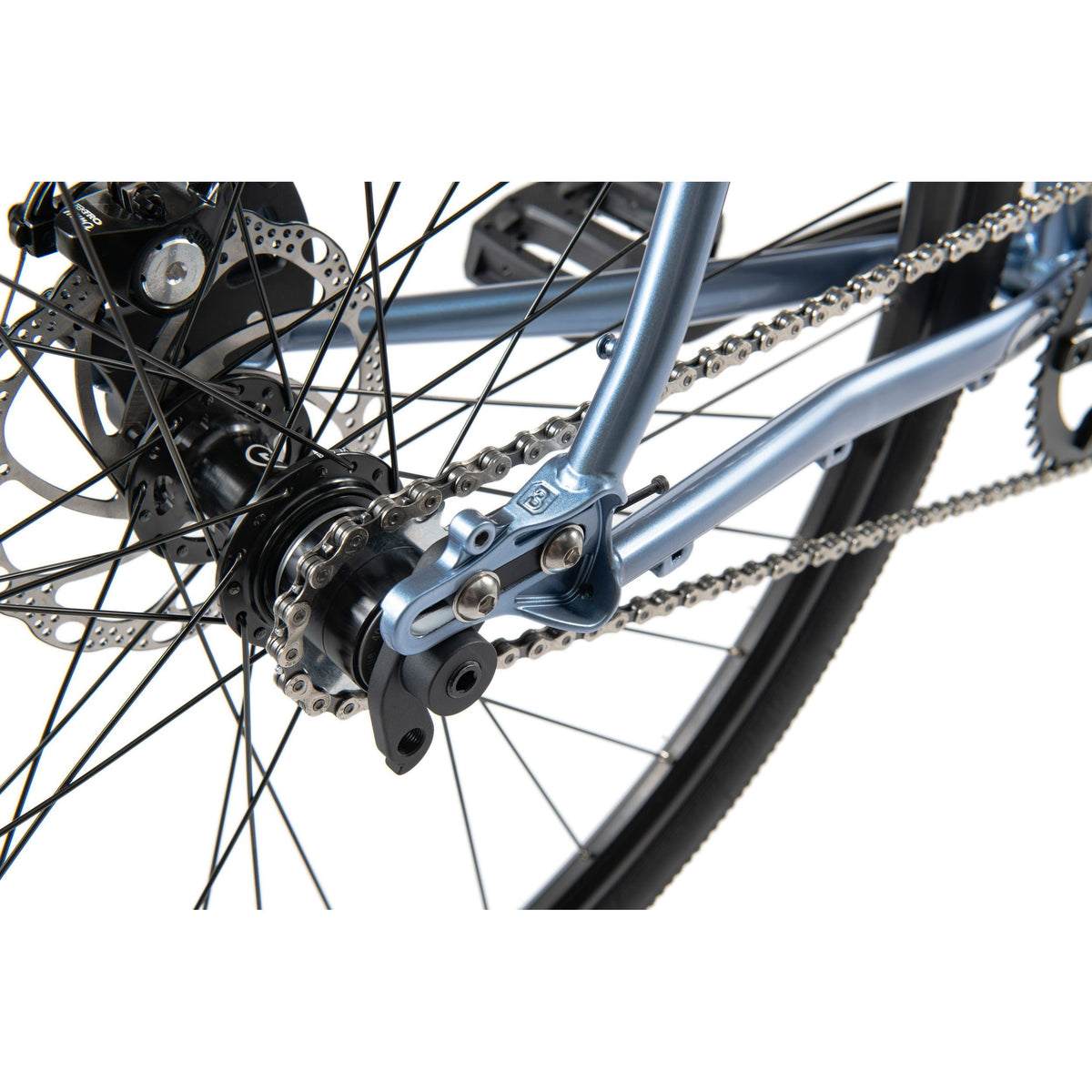

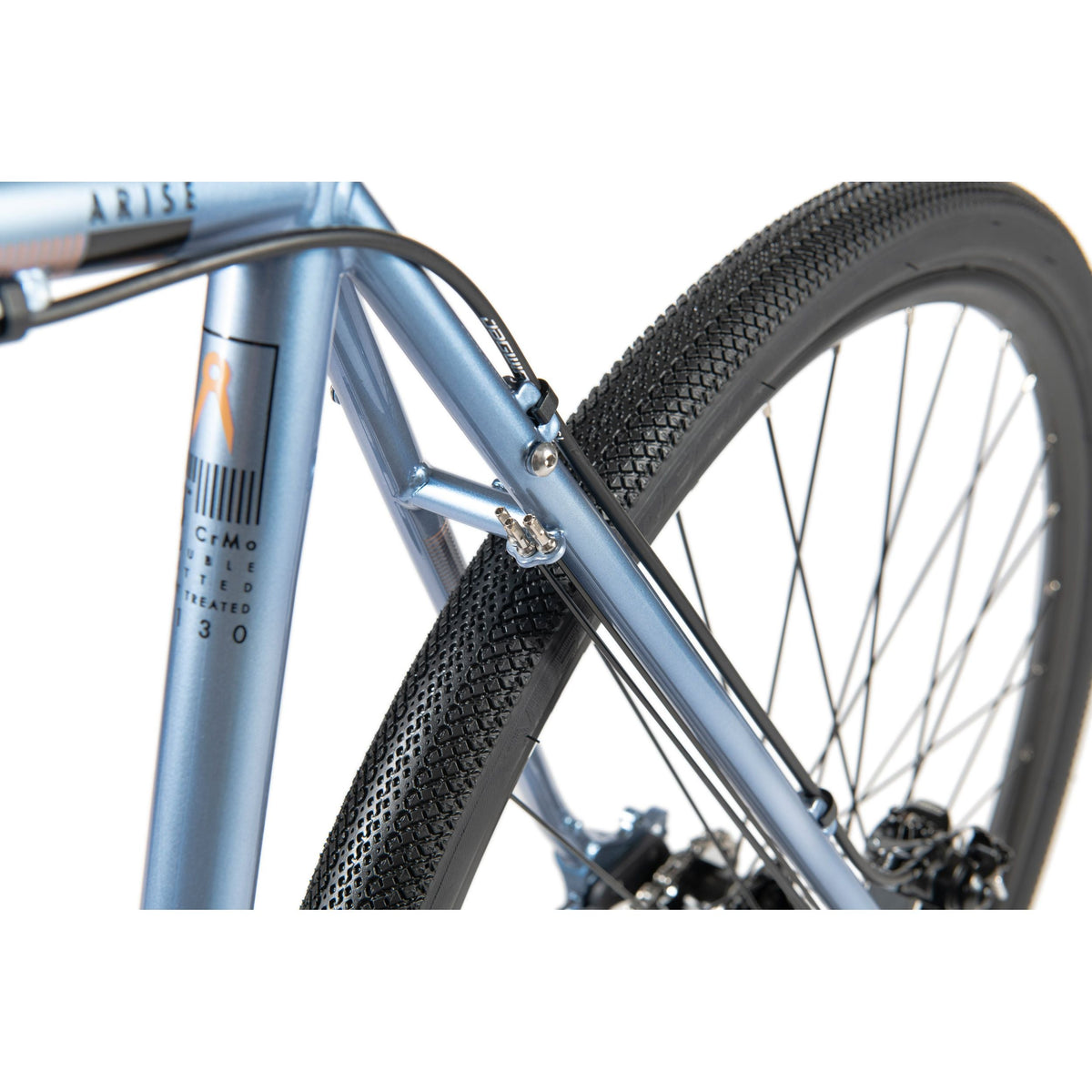

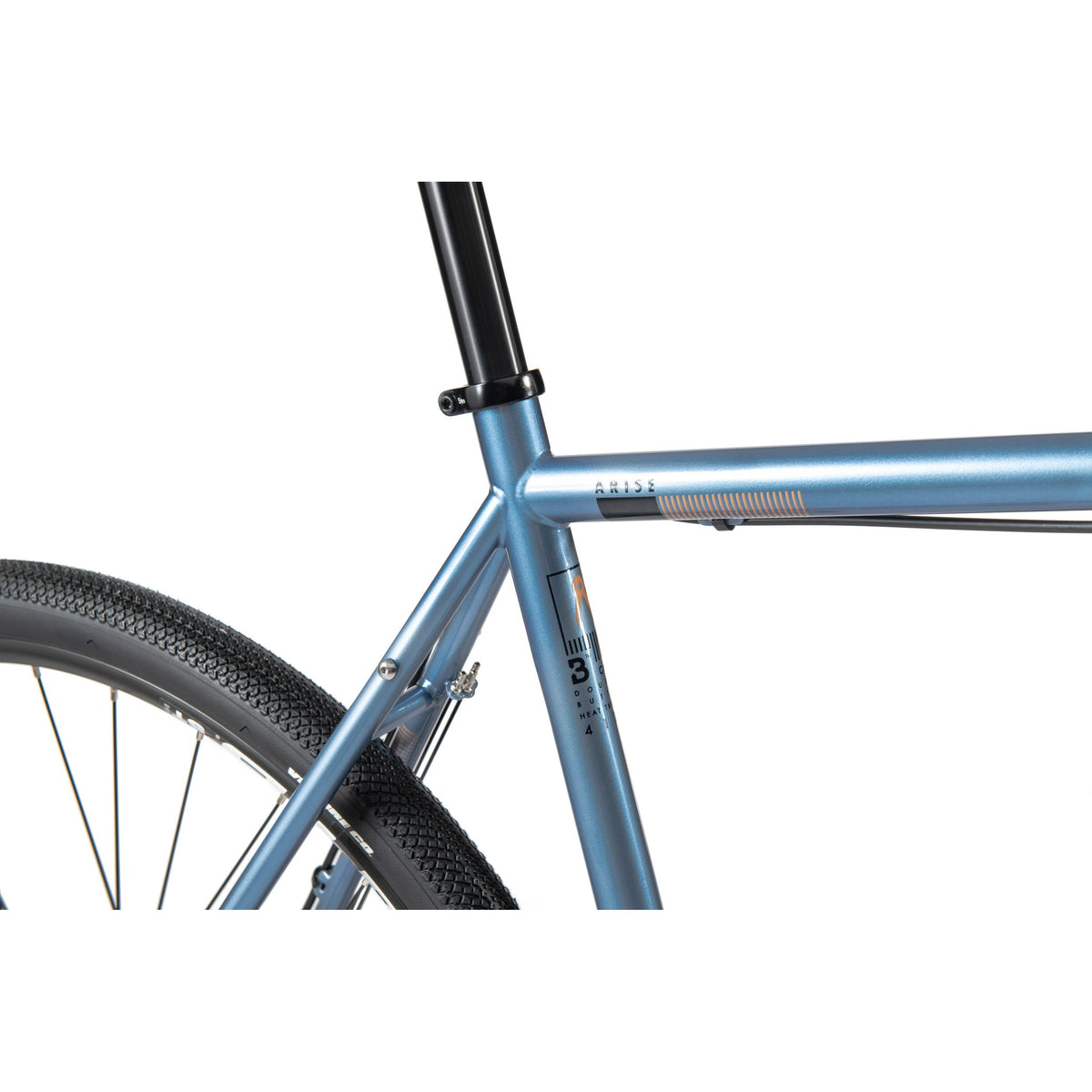

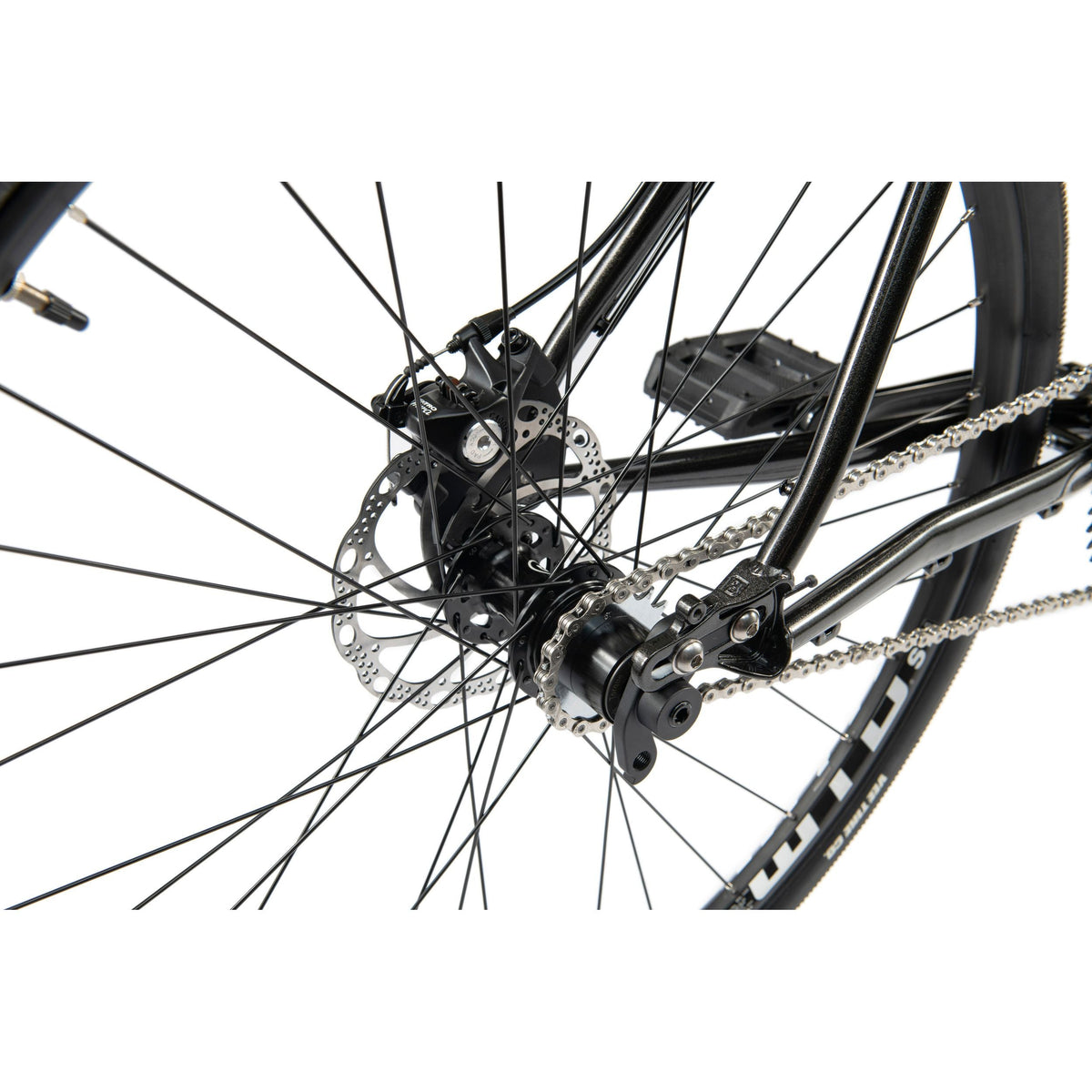

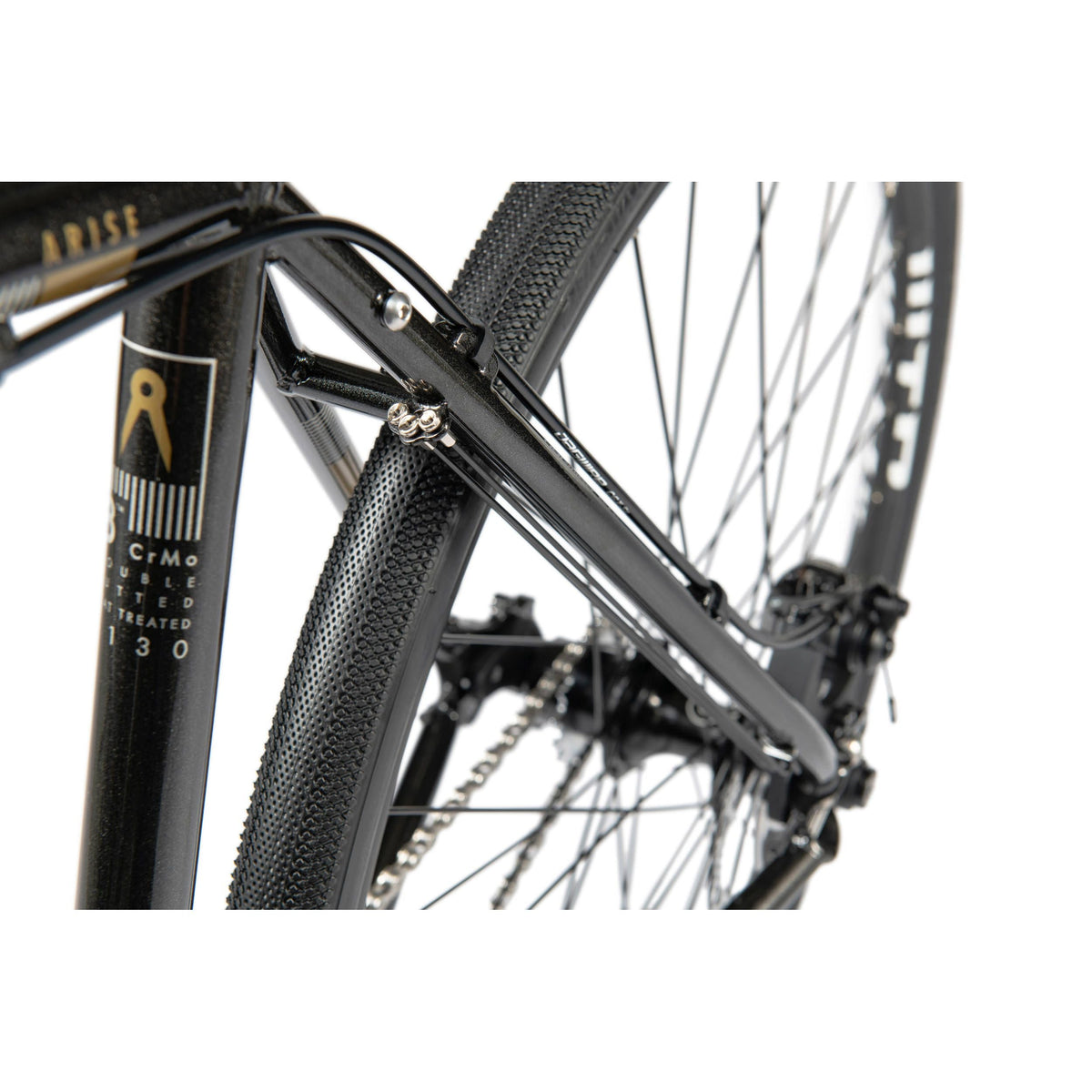

| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / mudguard mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / mudguard mounts, internal hub dynamo cable routing |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | BOMBTRACK CONTROL bar tape |
| Stem | BOMBTRACK ROAM forged aluminium stem, -7° |

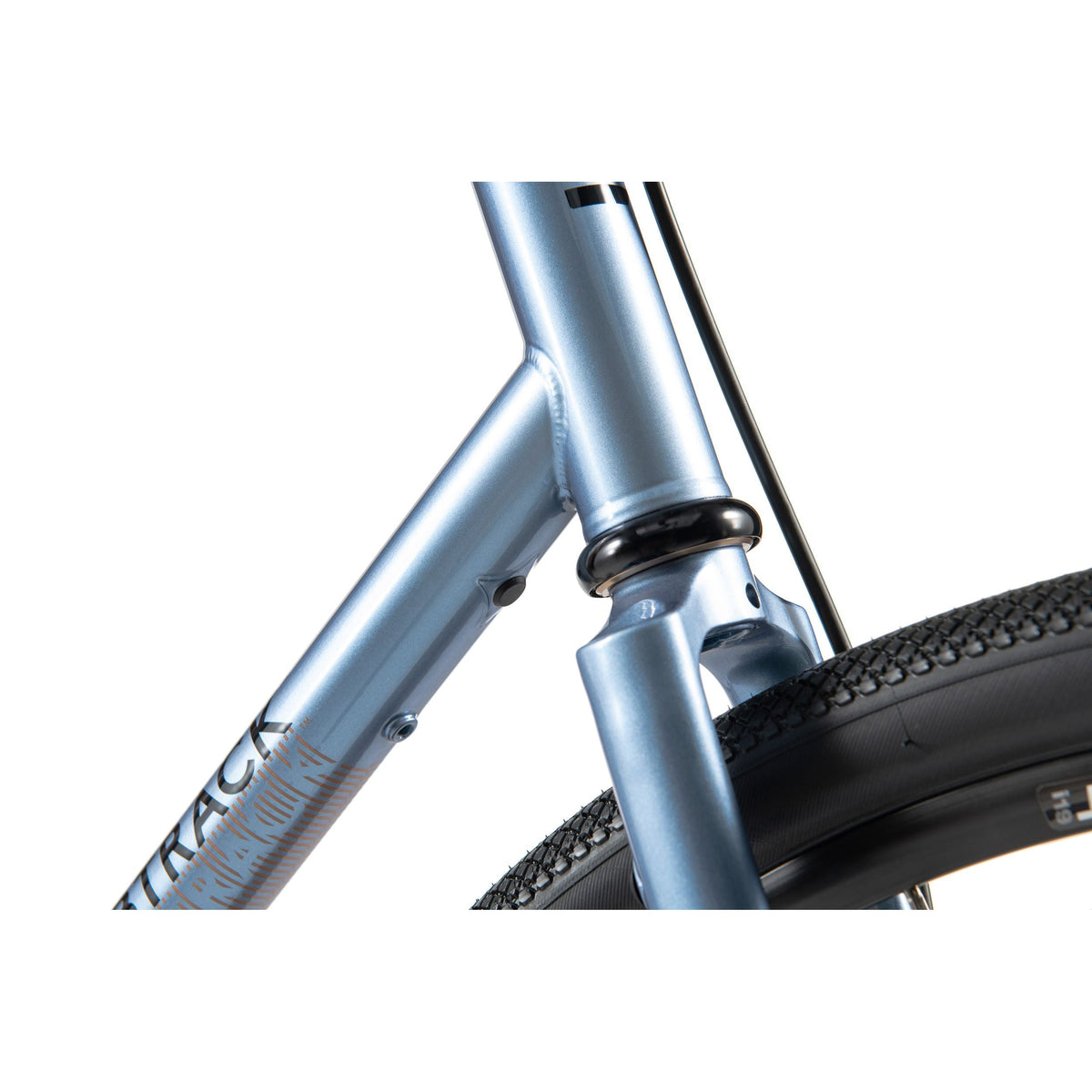

| Headset | NECO H282 sealed external aheadset, 1.1/8'' |
| Levers | TEKTRO RL-340 brake levers |

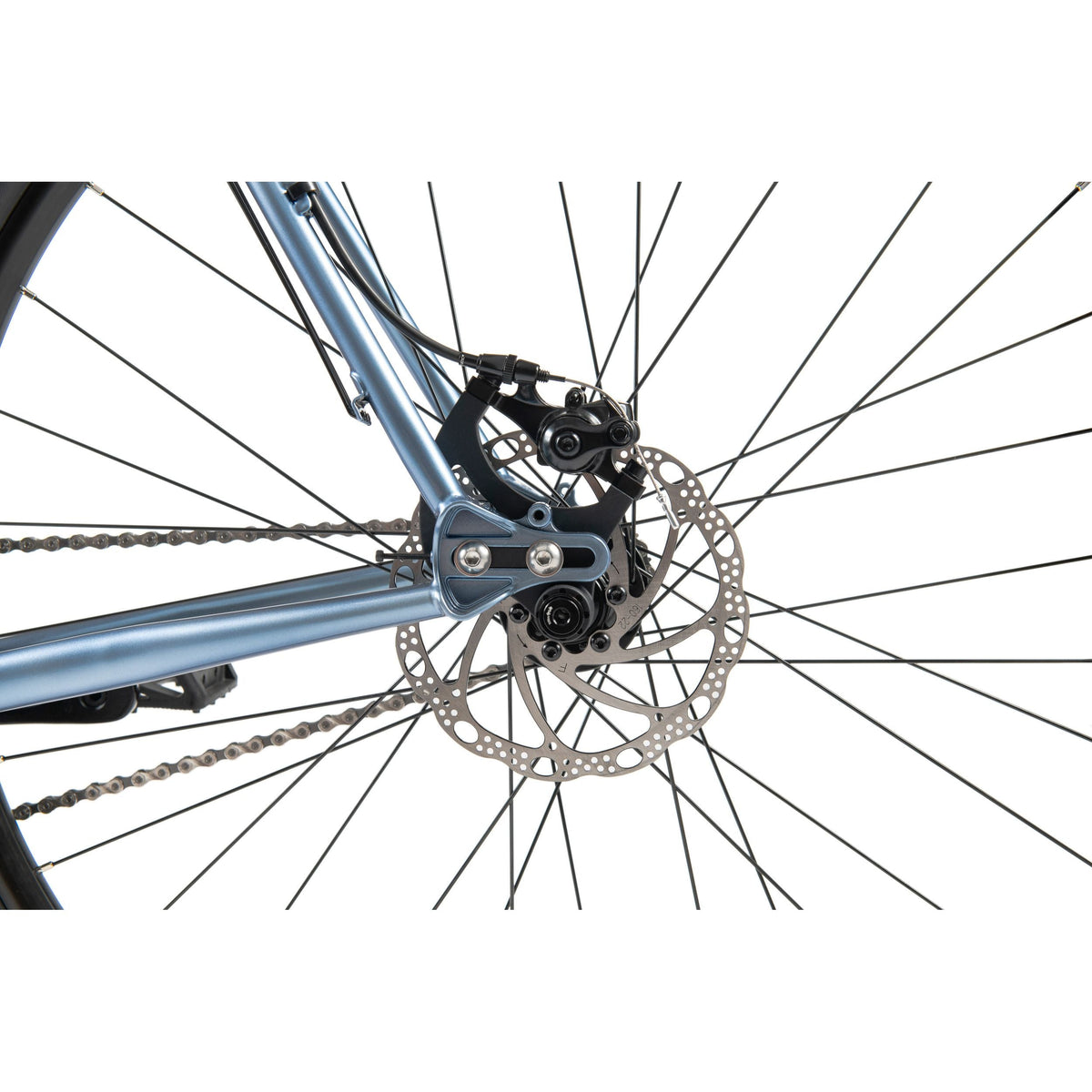

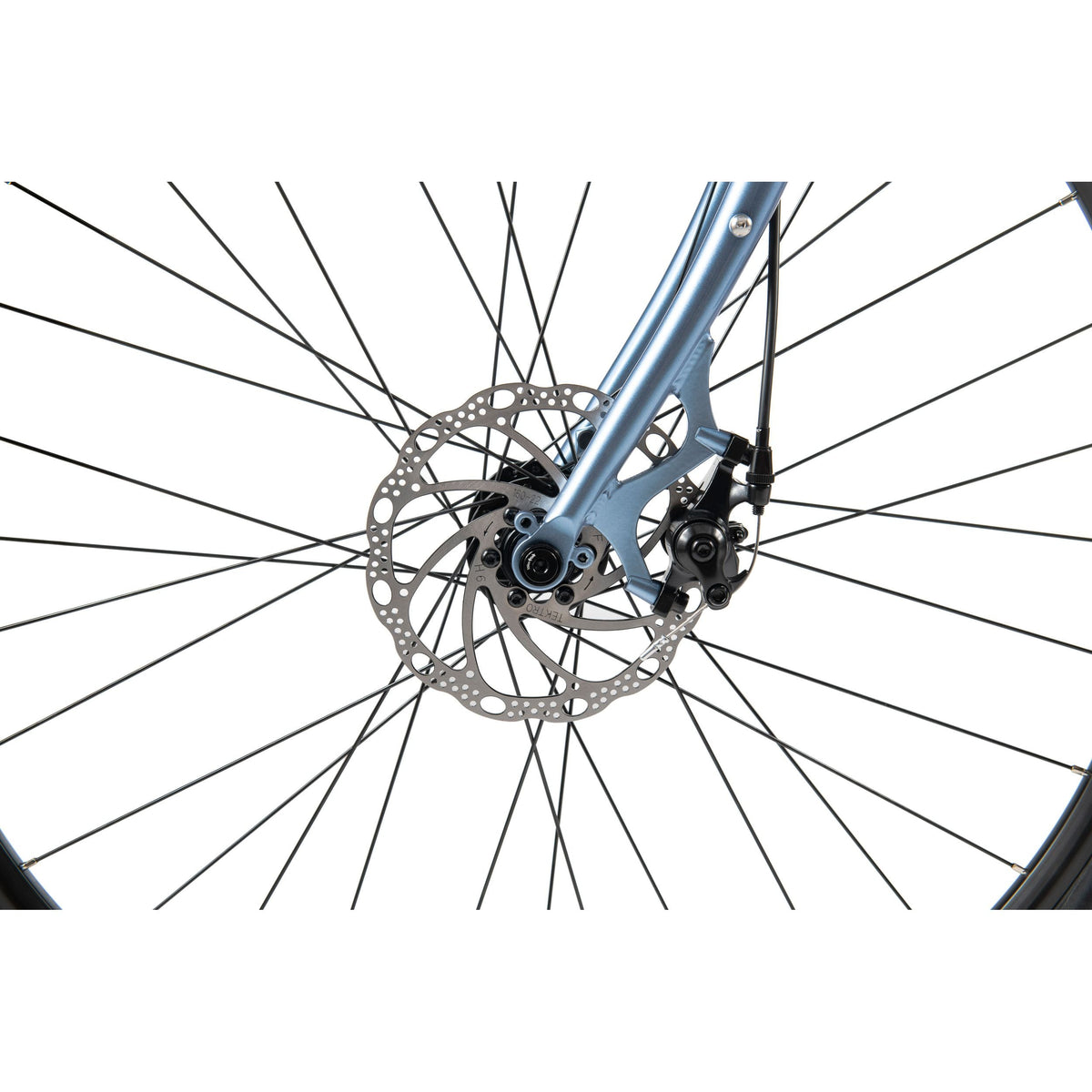

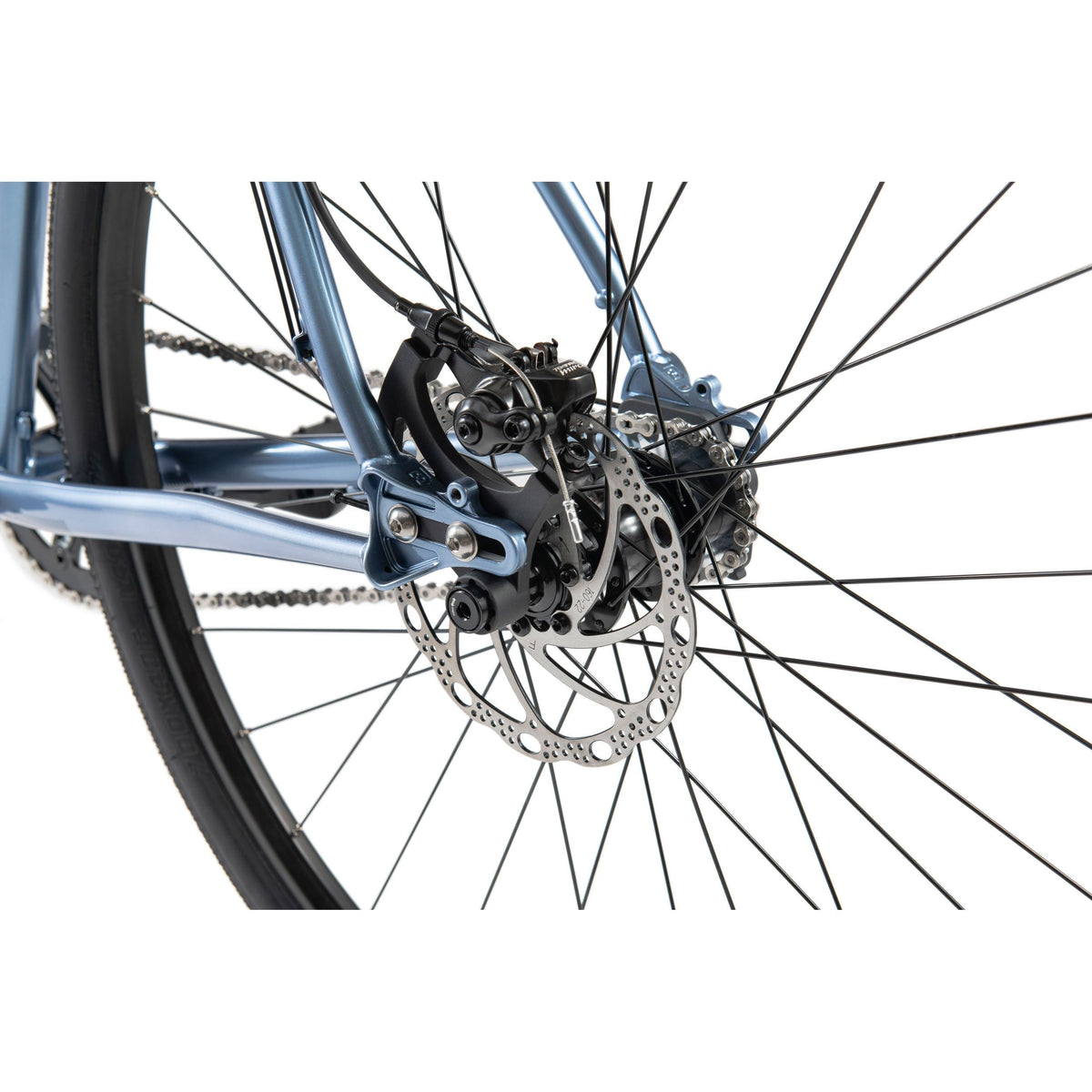

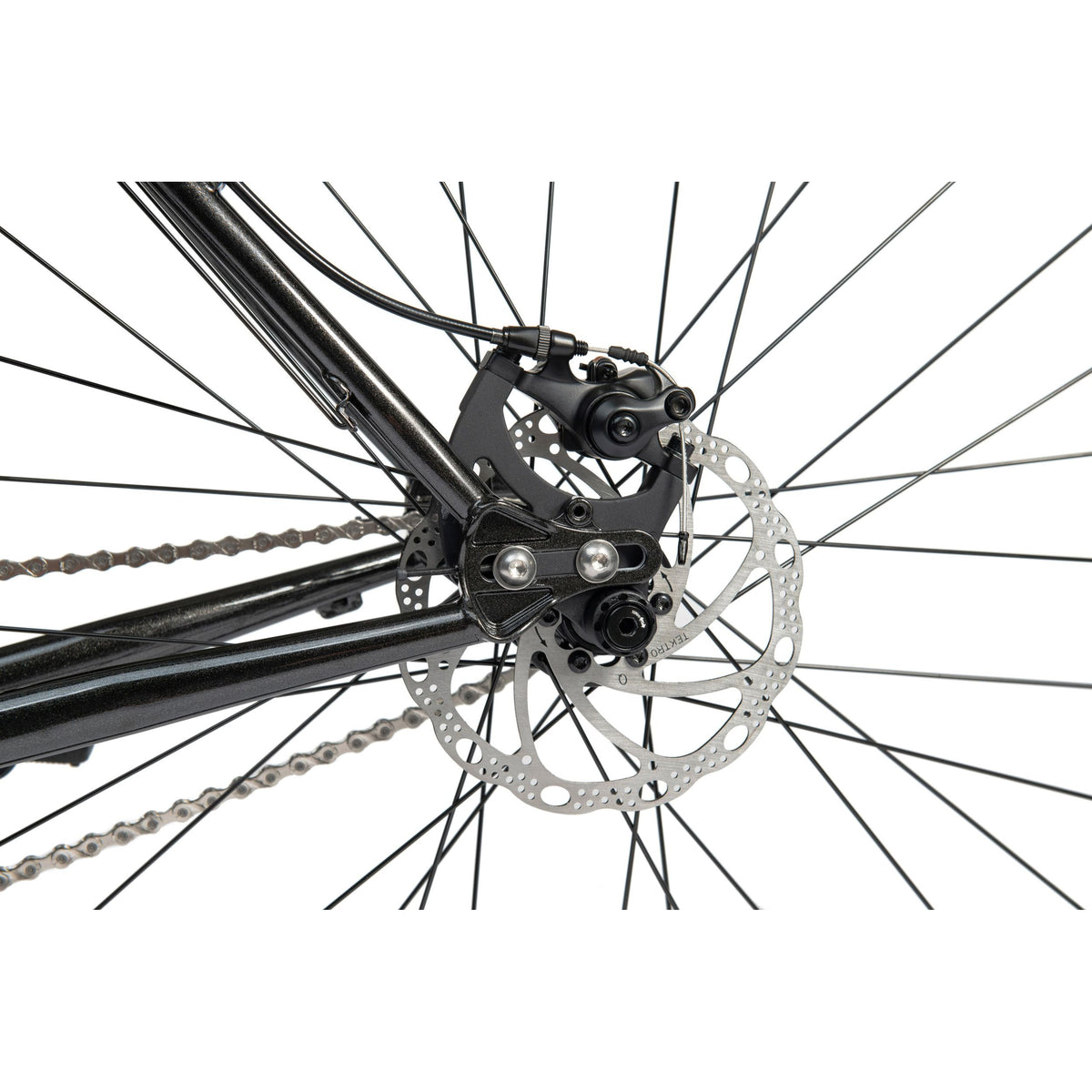

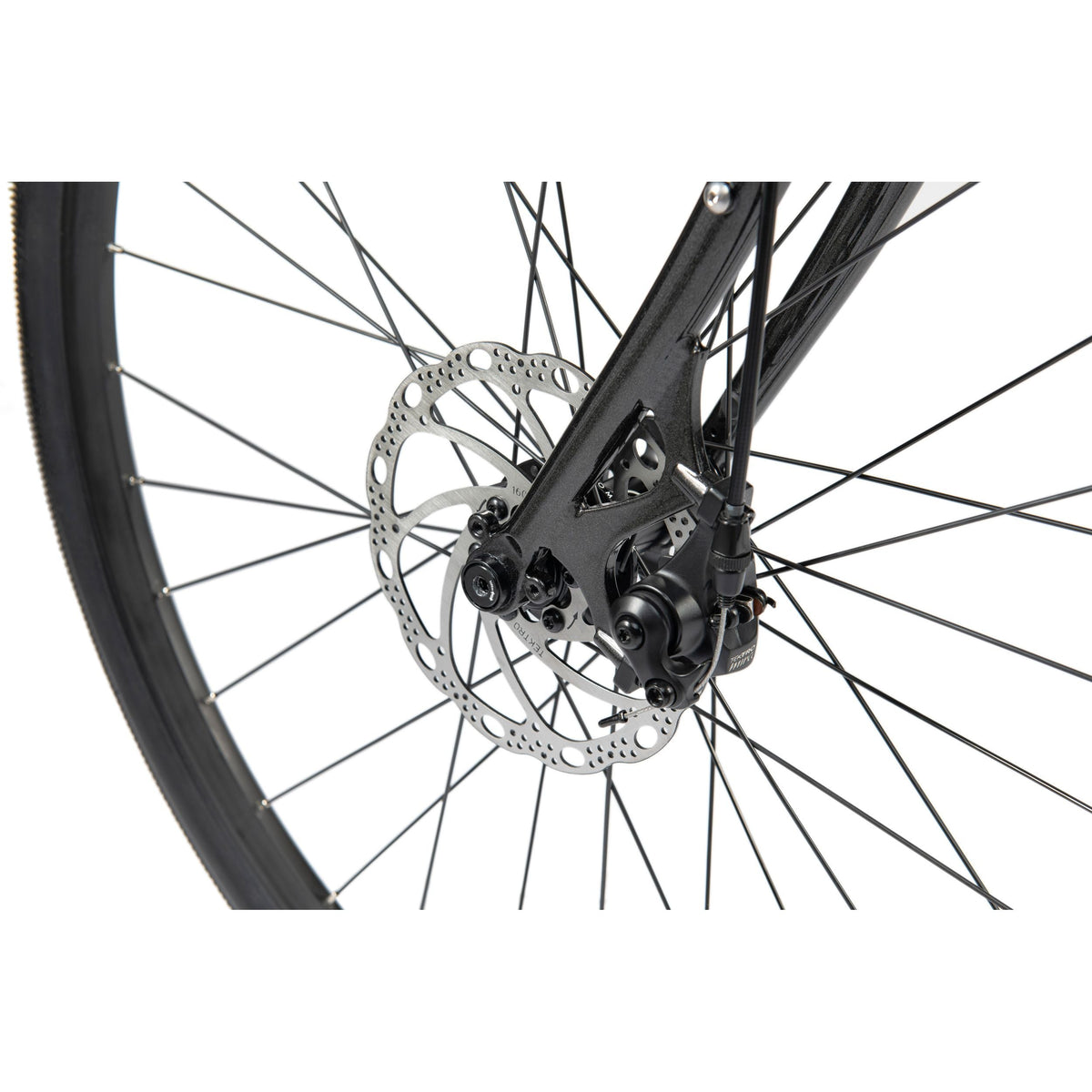

| Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors |

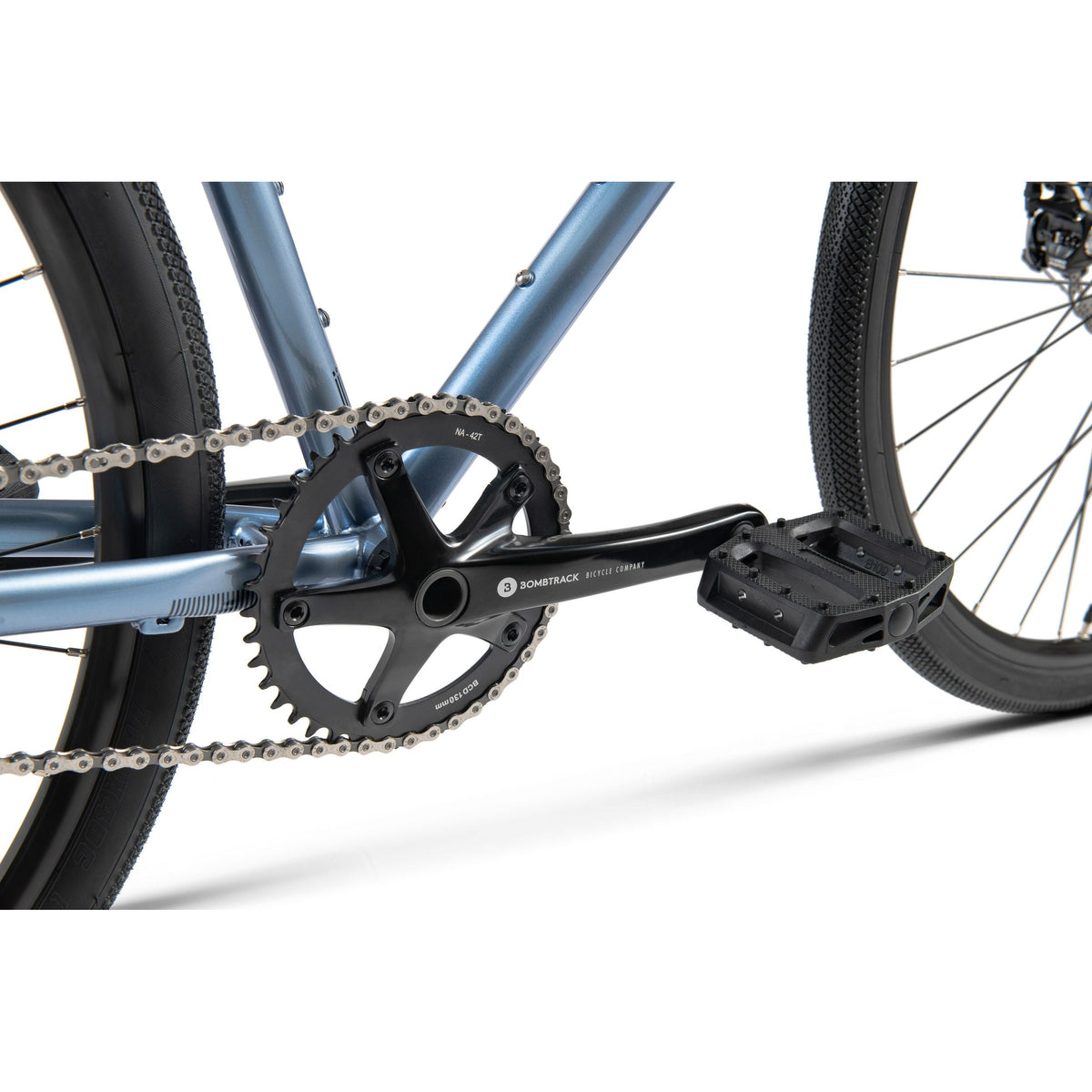

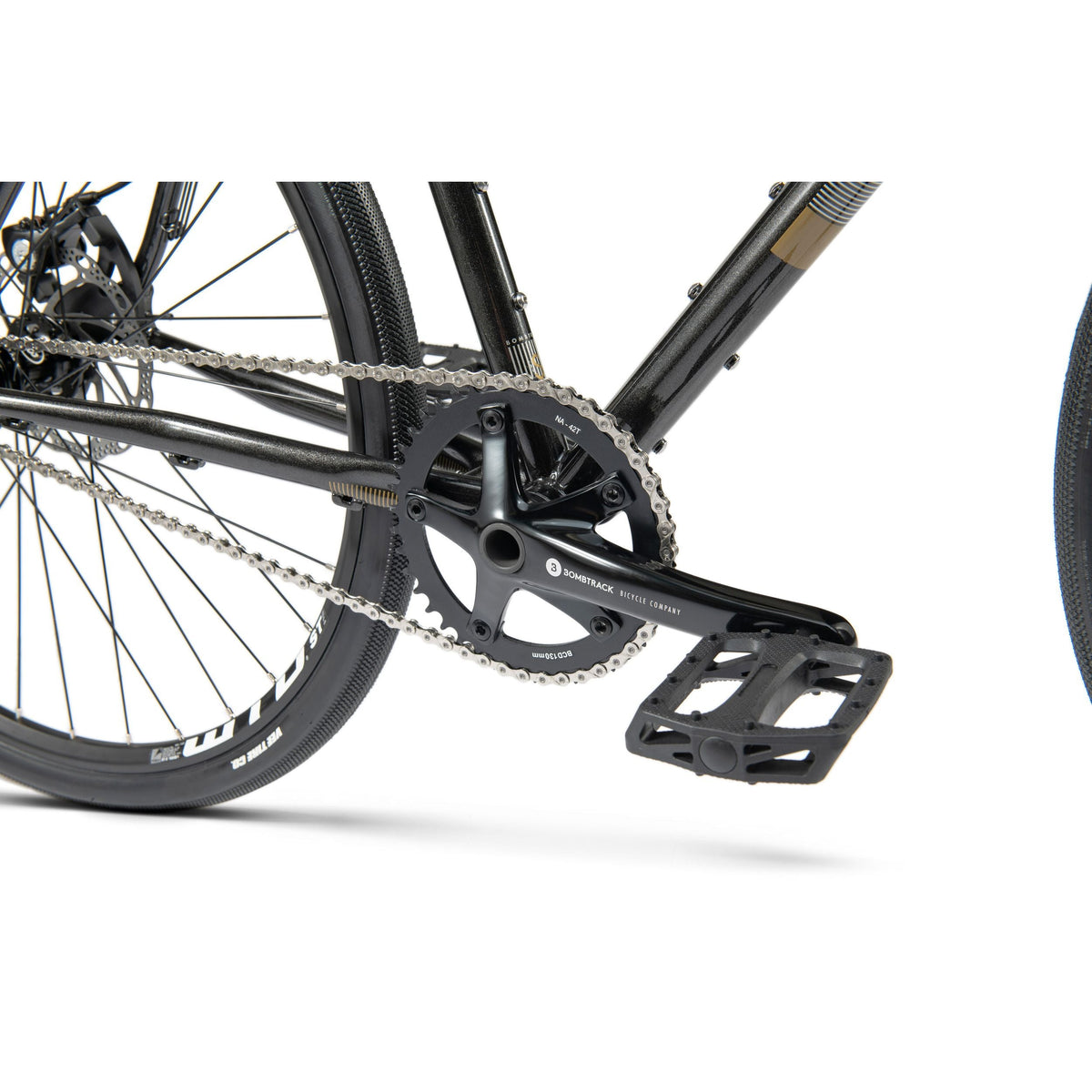

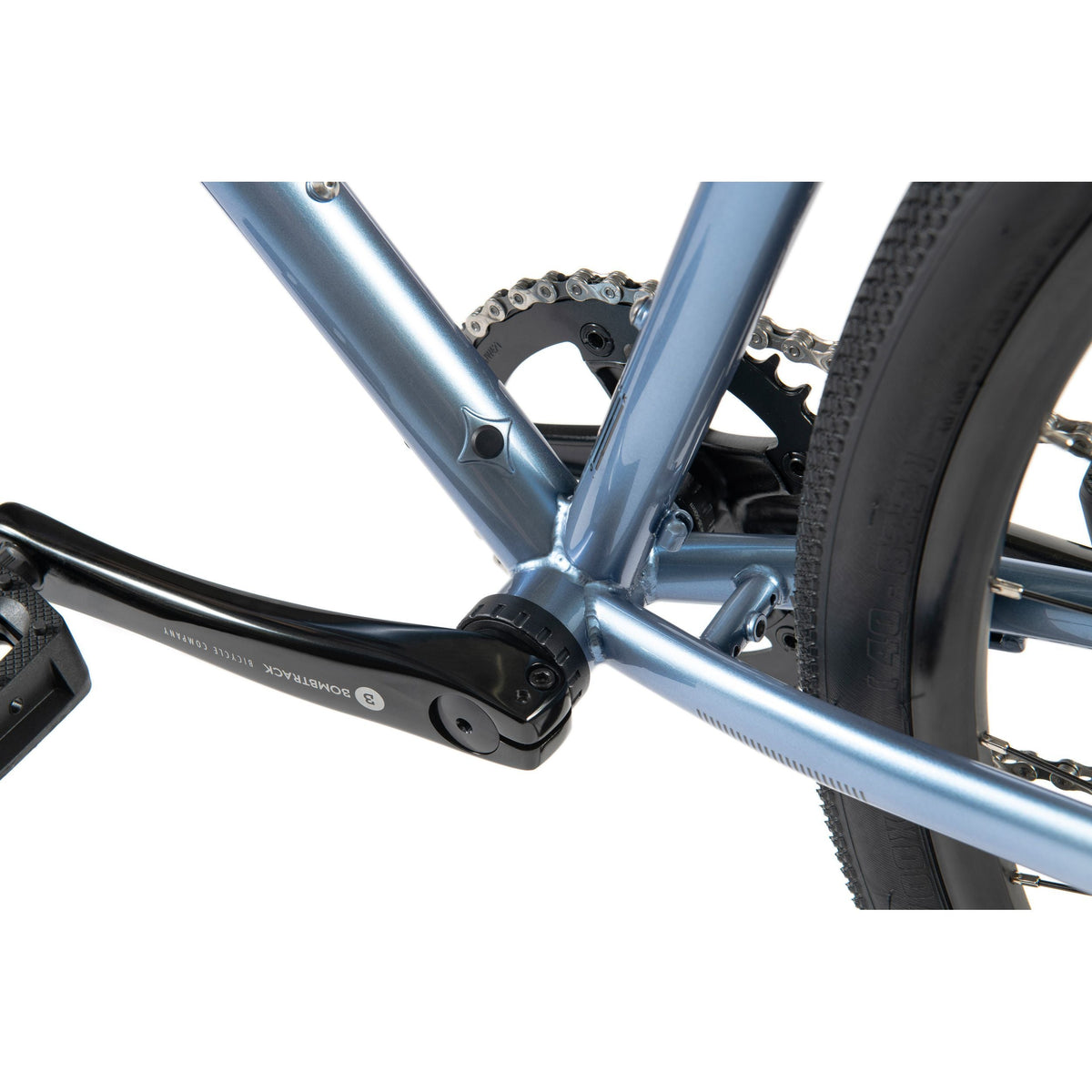

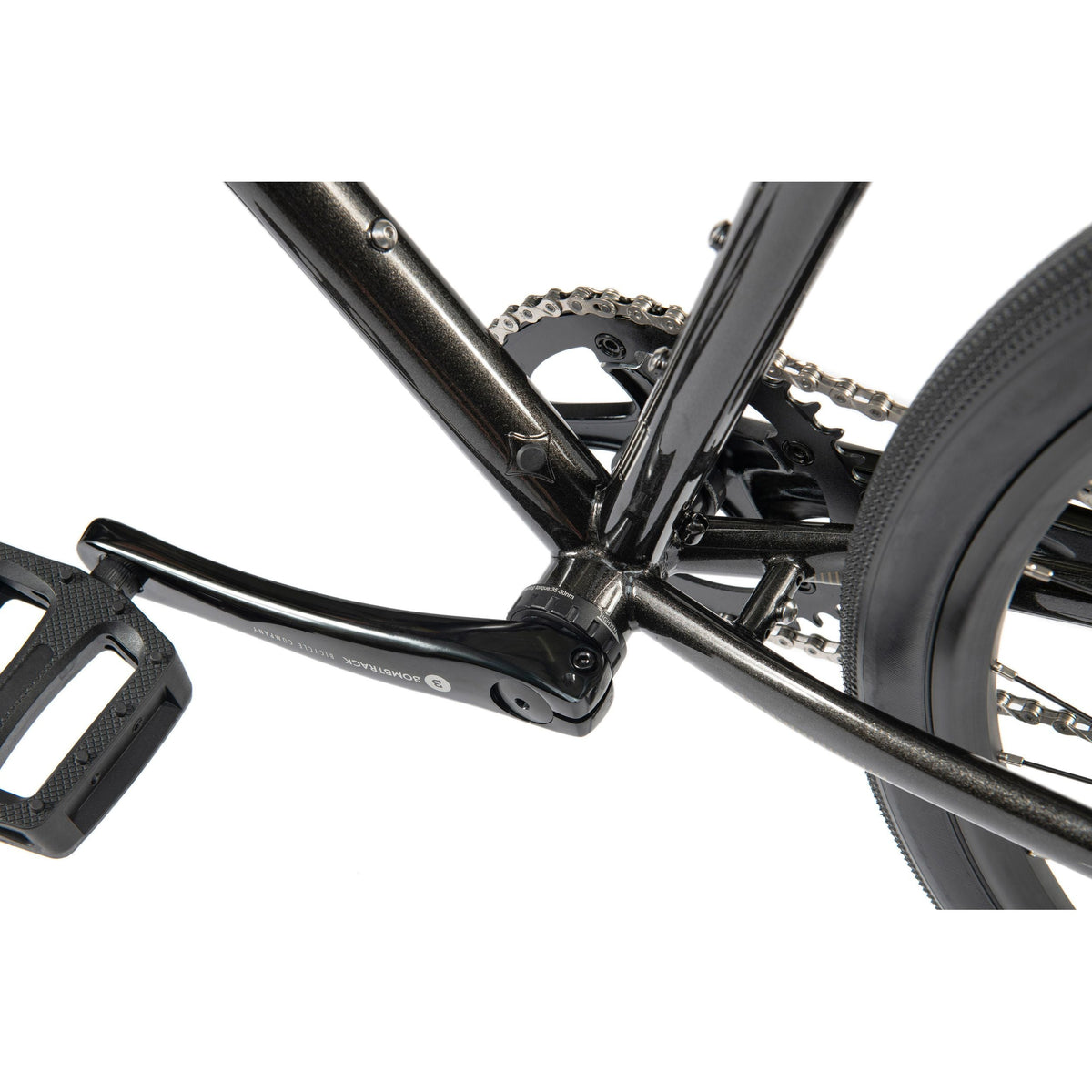

| Crankset | BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | WELLGO B109N flat pedal |
| Chain | KMC X9 chain, 1/2'' x 11/128'', 98L |
| Chainring | BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42 T |
| Cassette | 16 T heat treated crmo, 1/2'' x 11/128'' |

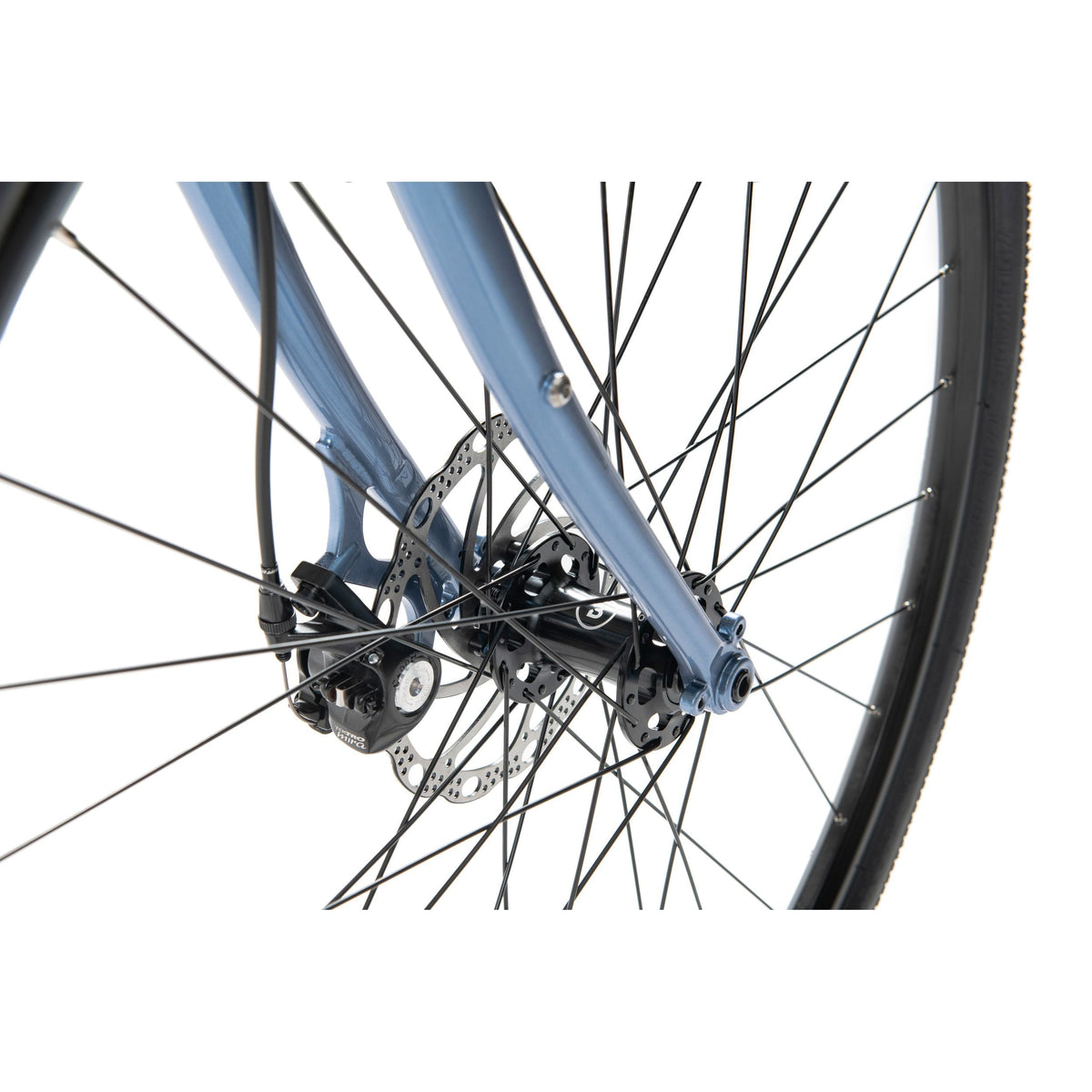

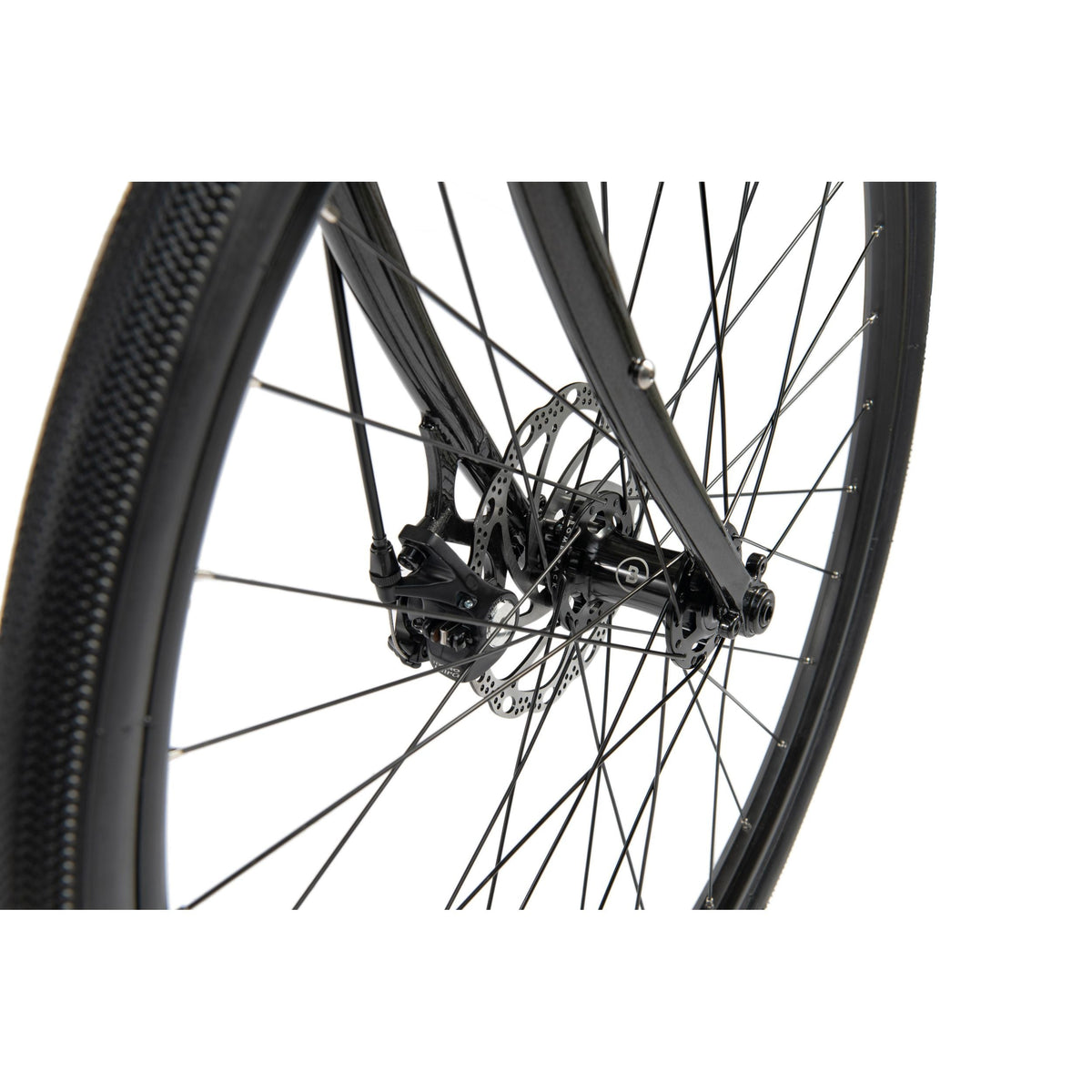

| Front hub | BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |

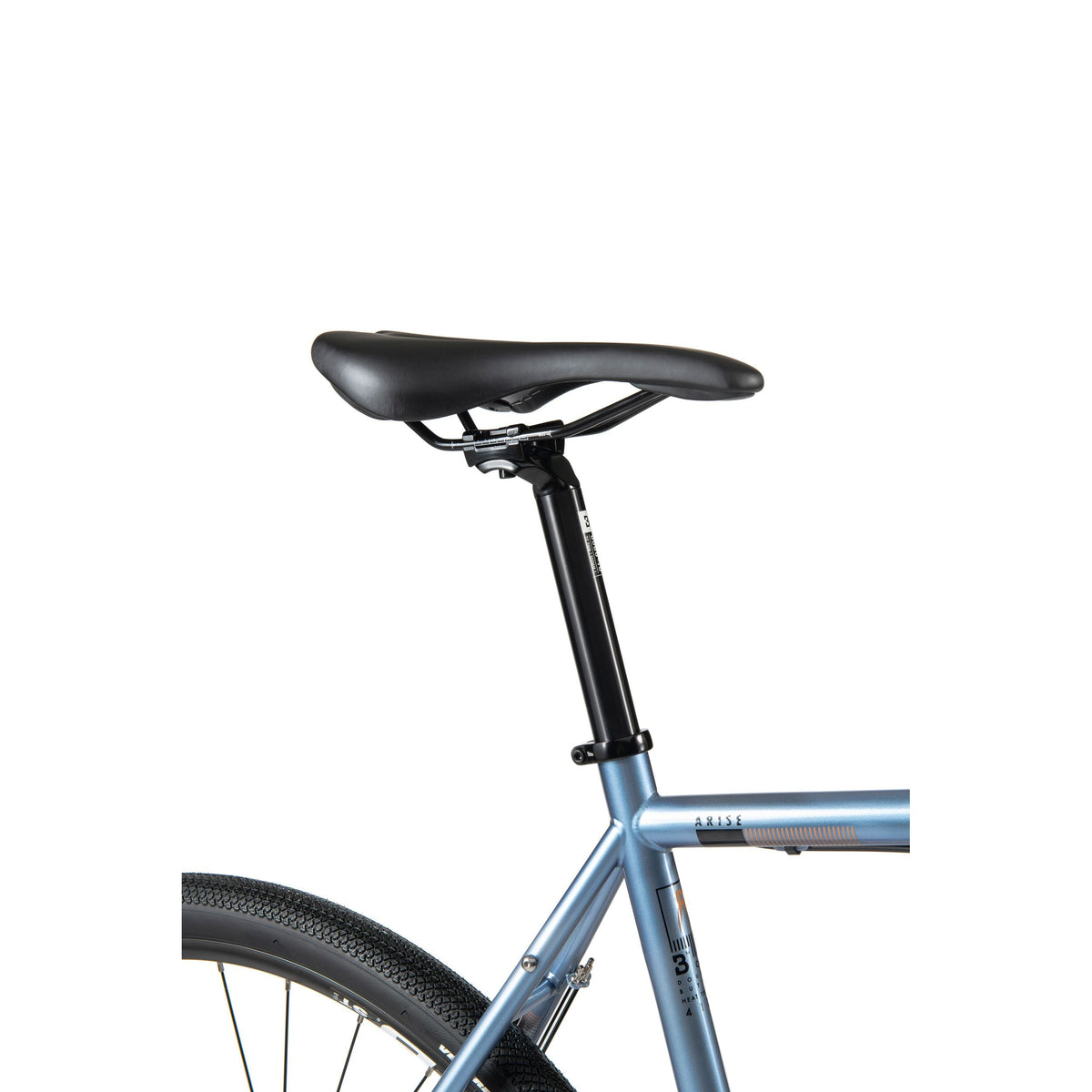

| Saddle | BOMBTRACK ORIGIN saddle |
| Seat post | BOMBTRACK BEECH 27.2 mm x 300 mm |
| Seat clamp | BOMBTRACK ORIGIN 29.8 mm |
| Front tyre | XS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Rear tyre | XS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Weight | 11.4 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
