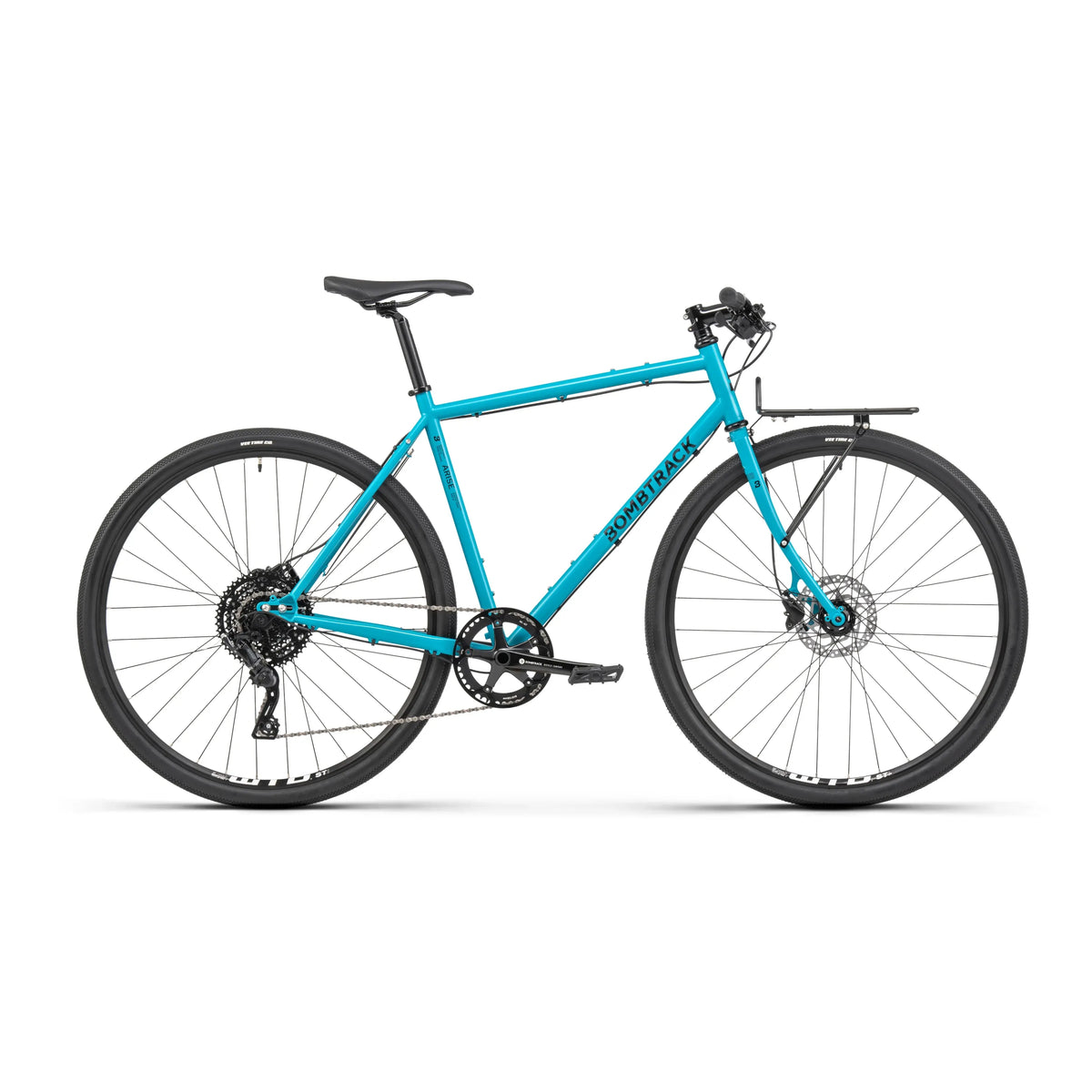

BOMBTRACK Arise Geared Complete Bike
£1,550.00
Dispatch & delivery
Checking dispatch time…
Then add UK courier delivery:
Standard tracked: 2–4 working days after dispatch
FedEx Express: 1–2 working days after dispatch
Express delivery does not shorten this wait.
Currently out of stock Use “Notify me when available” below to be notified when this item is back in stock.
The Bombtrack Arise Geared works as a commuter, a delivery bike or a practical work bike. It uses the same double-butted steel frame as the other Arise models, with a Bombtrack Deck front rack, Microshift Advent 1x9 drivetrain with an 11-42T cassette, flat bars and Shimano hydraulic brakes. Wide Vee Tire Speedster tyres suit urban roads, parks and towpaths.
Specification
| Colour 1 | Metallic black |
| Colour 2 | Matt petrol blue |
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / mudguard mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / mudguard mounts, internal hub dynamo cable routing |
| Handlebar | Bombtrack Origin flat bar, 31.8 mm, 8° backsweep |
| Grips | Bombtrack Scroll grips |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Shimano BL-MT200 hydraulic brake levers |
| Shifter | Microshift Advent SL-M8195-R shifter 1 x 9 |
| Brakes | Shimano BR-MT200 post mount hydraulic disc brake |
| Rotor | Shimano SM-RT26 160 mm rotors |
| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | Wellgo B109N flat pedal |
| Chain | KMC X9 chain, 1/2'' x 11/128'', 114L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 42 T, incl. chainguard |
| Cassette | Microshift Advent CS-H093 9-speed, 11 - 42 T |
| Rear derailleur | Microshift Advent RD-M6195M wide range, clutch |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tyre | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tyre | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rack | Bombtrack Deck frontrack, aluminium |
| Weight | 12.6 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
FRAME GEOMETRY
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 700C | 700C | 700C |
| Seat Tube Length | 460 | 490 | 520 | 550 | 580 |
| Horizontal TT length | 506 | 529 | 554 | 578 | 602 |
| Seat Angle | 73.5° | 73.5° | 73° | 73° | 73° |
| Head Angle | 70° | 70.5° | 70.5° | 71° | 71° |
| Headtube Length | 100 | 130 | 150 | 180 | 210 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 420 | 420 | 435 | 435 | 435 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
| Trail | 64 | 60 | 68 | 65 | 65 |
| Wheelbase Length | 995 | 1016 | 1045 | 1065 | 1090 |
| Standover | 733 | 762 | 799 | 828 | 857 |
| Reach | 351 | 370 | 379 | 394 | 409 |
| Stack | 508 | 538 | 572 | 602 | 631 |
| Front Center | 582 | 602 | 619 | 639 | 664 |
| Axle to Crown | 390 | 390 | 390 | 390 | 390 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
