BOMBTRACK Beyond+ Complete Bike
£1,950.00
Dispatch & delivery
Checking dispatch time…
Then add UK courier delivery:
Standard tracked: 2–4 working days after dispatch
FedEx Express: 1–2 working days after dispatch
Express delivery does not shorten this wait.
Currently out of stock Use “Notify me when available” below to be notified when this item is back in stock.
The Bombtrack Beyond+ is a rigid adventure bike that is also at home on technical singletrack. The double-butted steel frame is suspension corrected with a quad-butted ovalised down tube and a matching Seido steel BPS fork, and both carry multiple mounting points, including offset triple cage mounts on the seat stays. SRAM SX Eagle gearing with an 11-50T cassette and SRAM Level brakes complete the build.
Specification:
| Colour 1 | Matt blue |
| Frame | 4130 double butted crmo, TA, rack / mudguard mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell |
| Fork | Seido BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', mudguard / rack / triple cage mounts, internal hub dynamo cable routing |

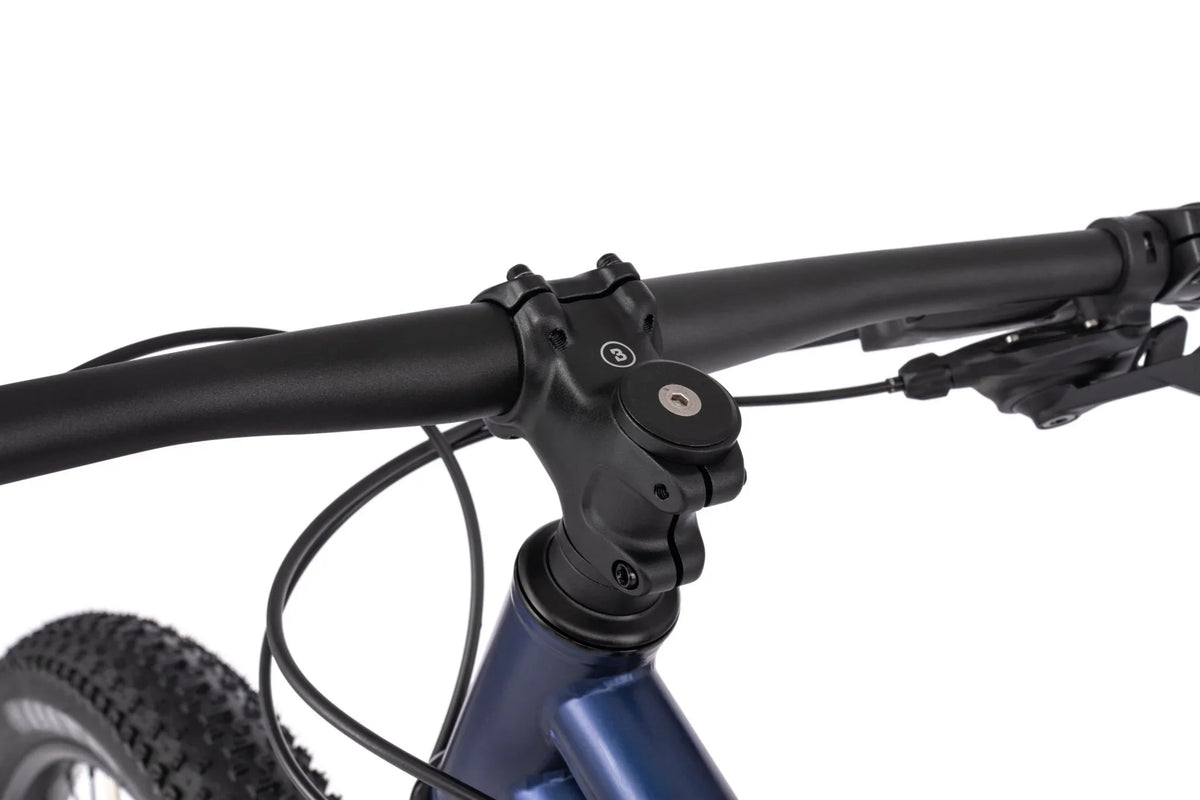

| Handlebar | Bombtrack Trail flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise |
| Grips | Bombtrack Scroll grips |
| Stem | Seido Tramp forged aluminium stem, 3° |
| Headset | Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8'' |
| Levers | SRAM Level hydraulic |
| Shifter | SRAM SX-Eagle 12-speed shifter |

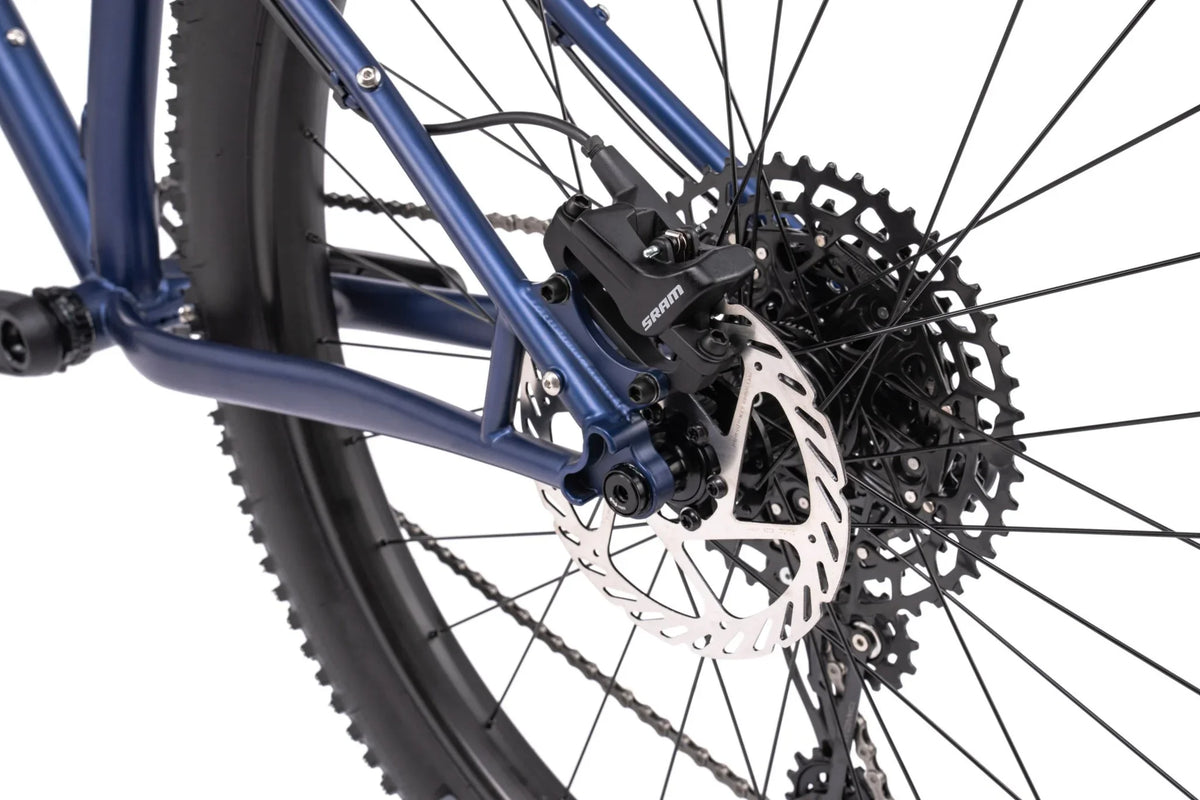

| Brakes | SRAM Level hydraulic disc brakes |
| Rotor | SRAM G2 Cleansweep 180 mm front and 160 mm rear rotor |
| Crankset | Truvativ Stylo 6K aluminium crank, Boost DUB |
| BB | SRAM DUB BSA 73 mm |
| Chain | SRAM NX Eagle chain, 1/2'' x 11/128'', 116L |
| Chainring | SRAM Eagle X-Sync 2, narrow-wide, 30 T |
| Cassette | SRAM PG-1210 Eagle 12-speed, 11 - 50 T |

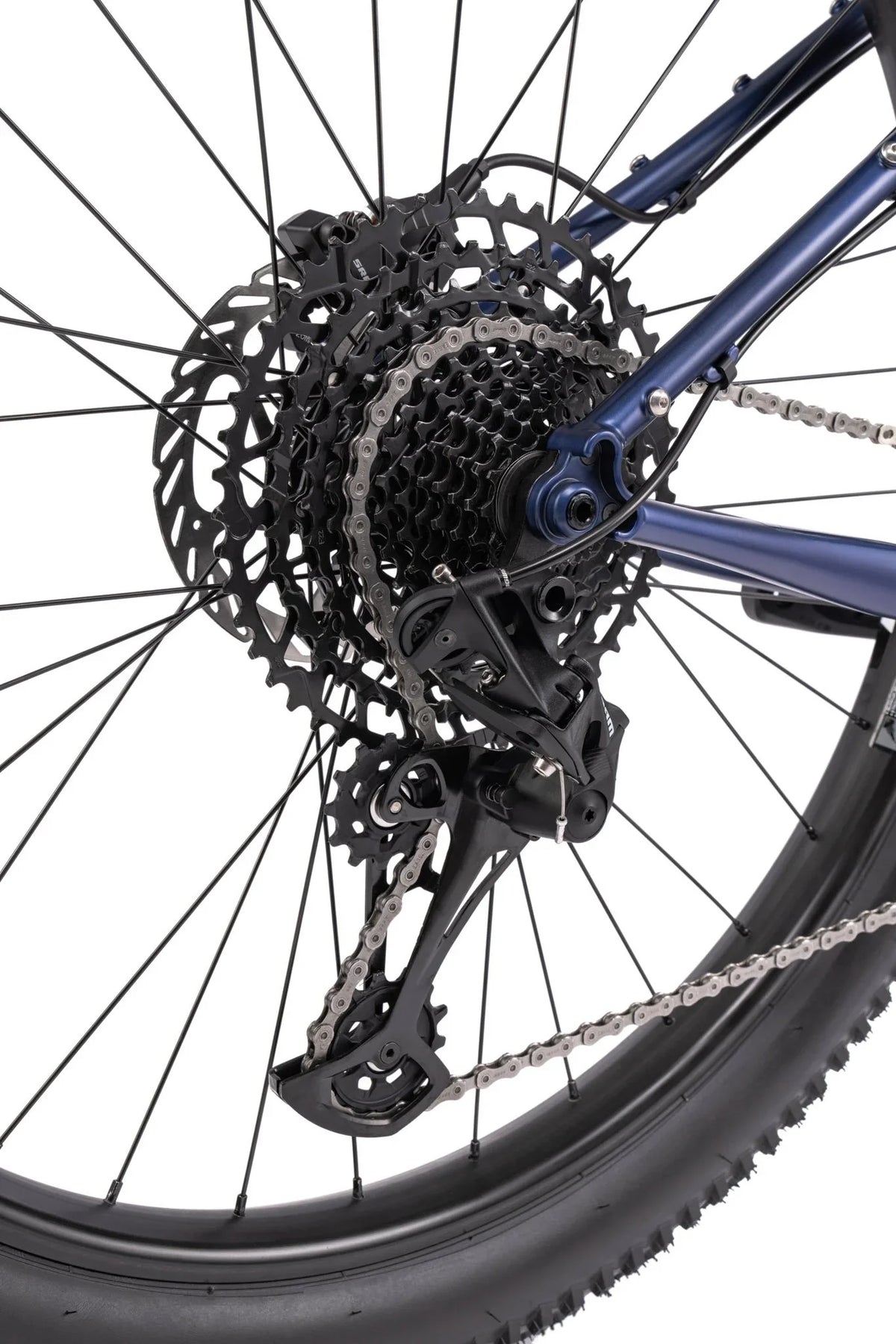

| Rear derailleur | SRAM SX Eagle, clutch, long cage |
| Front hub | Seido Grad Boost sealed hub, 6-bolt disc |
| Rear hub | Seido Grad Boost sealed hub, HG driver, 6-bolt disc |
| Through axle | 15 x 110 mm / 12 x 148 mm |
| Front rim | WTB ST i35 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i35 double wall, TCS 2.0, 32h |

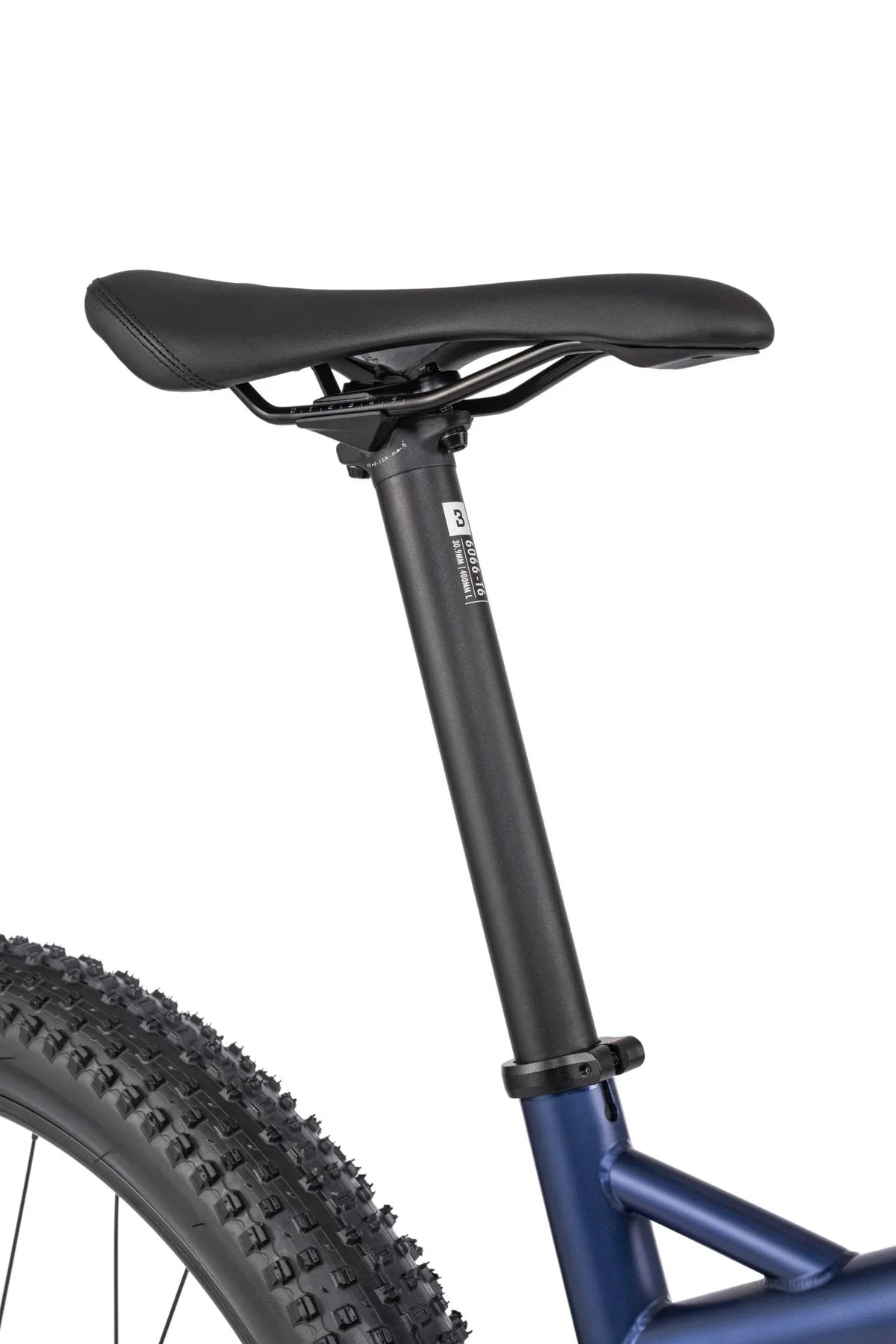

| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Yew aluminium seatpost, 30.9 mm x 400 mm |
| Seat clamp | Bombtrack Origin 34.9 mm |
| Front tyre | WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready |
| Rear tyre | WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready |
| Weight | 14.4 kg (size M) |
| Weight frameset | 2910 g frame (size M, incl. TA, hanger) |
| Maximum rider weight | 165 kg incl. luggage |
| ASTM riding condition | 3 |
FRAME GEOMETRY
| Bike Size | S | M | L | XL |
| Wheel size | 27.5'' | 27.5'' | 27.5'' | 27.5'' |
| Seat Tube Length | 406 | 457 | 508 | 559 |
| Horizontal TT length | 575 | 598 | 622 | 651 |
| Seat Angle | 72.0° | 72.0° | 72.0° | 72.0° |
| Seat Angle effective | 73.8° | 73.8° | 73.7° | 73.7° |
| Head Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Headtube Length | 100 | 110 | 125 | 135 |
| BB Drop | 70 | 70 | 70 | 70 |
| Chainstay Length | 450 | 450 | 450 | 450 |
| Fork Offset | 51 | 51 | 51 | 51 |
| Trail | 87 | 87 | 87 | 87 |
| Wheelbase Length | 1111 | 1135 | 1160 | 1188 |
| Standover | 750 | 778 | 809 | 836 |
| Reach | 395 | 415 | 434 | 459 |
| Stack | 621 | 630 | 644 | 653 |
| Front Center | 670 | 694 | 718 | 745 |
| Axle to Crown | 500 | 500 | 500 | 500 |
| Minimum rider height ¹ | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1710 | 1810 | 1900 | 1990 |
