Fairdale Elevator 29" Frame
£664.99

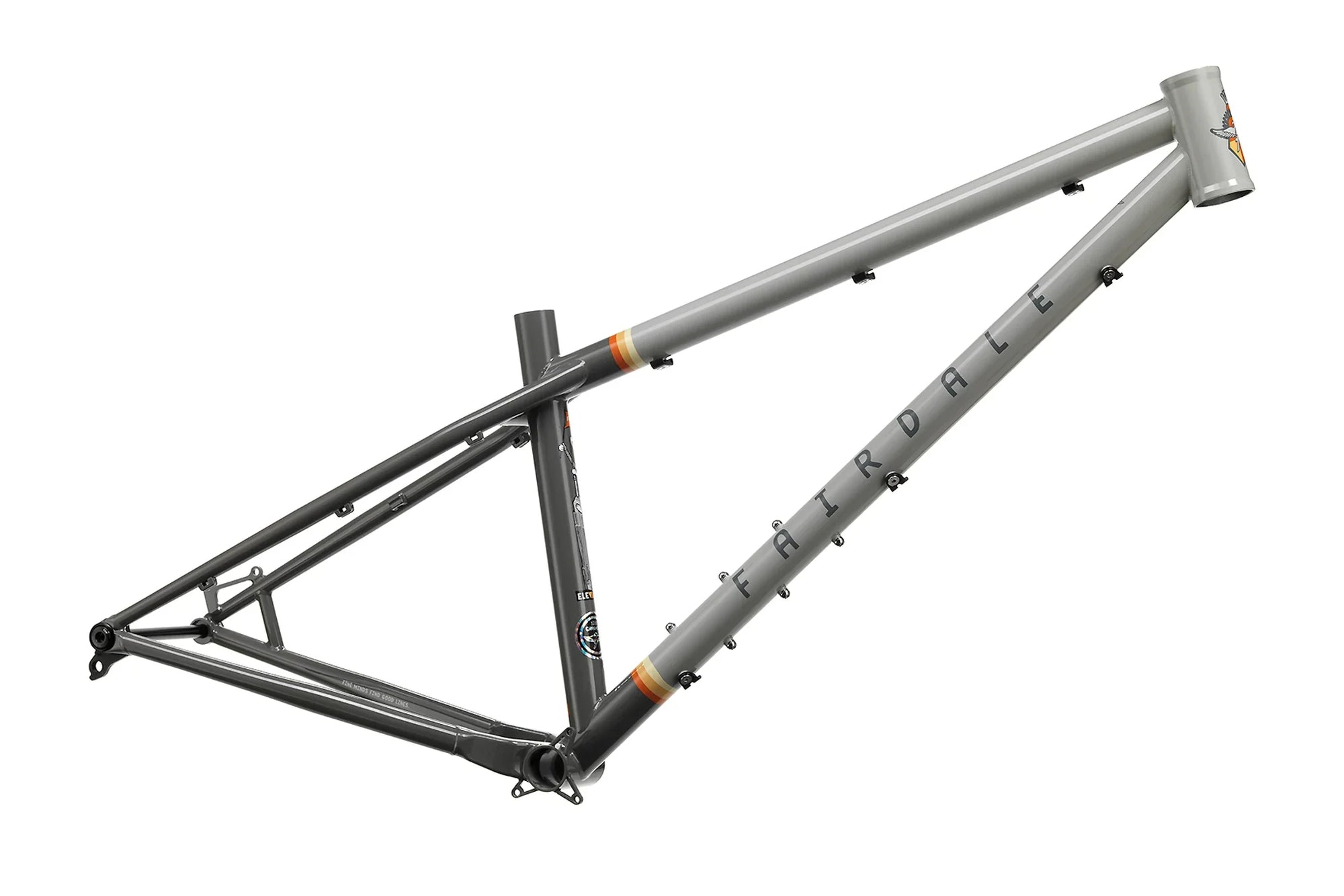

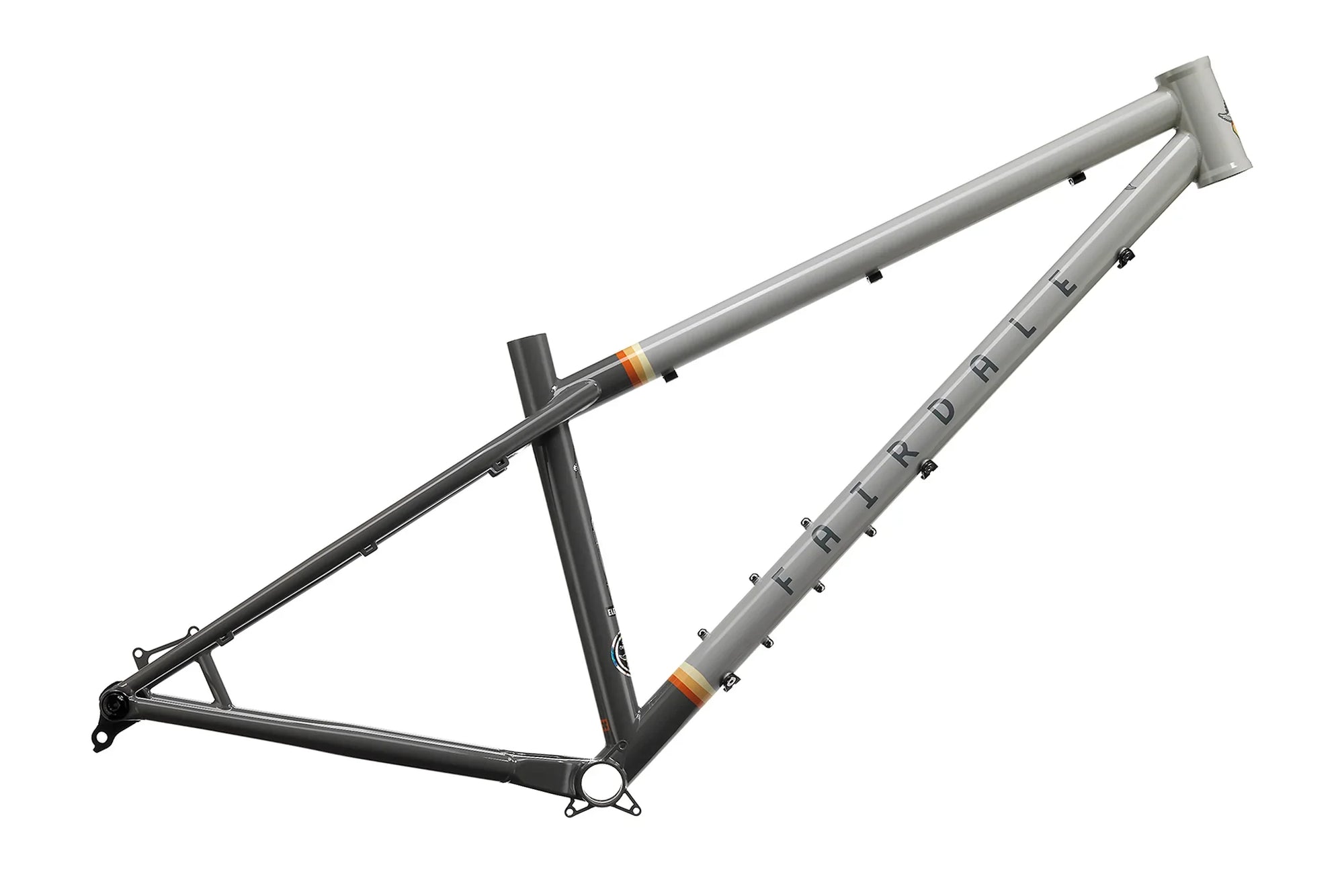

Fairdale Elevator 29" Frame
Introducing the Fairdale Elevator.
The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.
As always, making the ride fun is our main priority. This is a frame that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.
Frame kit includes sealed FSA Orbit ITA headset (not shown), UDH derailleur hanger, and Boost thru-axle.
Features
- 100% 4130 chromoly 29” rigid frame
- Butted top tube, down tube, and seat tube
- Highly maneuverable BMX-inspired geometry
- Investment cast yoke allows for extra short chain stays and 2.5” tire clearance
- External brake, derailleur, and dropper post routing with removable hardware
- Extensive hardware for bottles, accessories and ISCG mounting
Sizing
Medium Reach: 5'7" - 5'11" height
Large Reach: 5'10" - 6'2" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Geometry
| Size |
Medium | Large |
| Fork Travel | 130mm | 130mm |
| Fork Axle-to-Crown | 541mm | 541mm |
| Fork Offset | 44mm | 44mm |
| Wheelbase | 1177mm | 1200mm |
| Front-Center Length | 776mm | 799mm |
| Top Tube (Effective) | 620mm | 639mm |
| Seat Tube (BB Center to TT Center) |
380mm | 400mm |
| Seat Tube Angle | 76° | 76° |
| Head Tube Length | 102mm | 112mm |
| Head Tube Length w/Lower Headset Cup |
115mm | 125mm |
| Head Tube Angle | 65.5° | 65.5° |
| Chain Stay Length | 406mm | 406mm |
| Standover | 729mm | 745mm |
| Stack | 627mm | 636mm |
| Reach | 463mm | 482mm |
| BB Drop | 50mm | 50mm |
| Rear Dropout Spacing (Boost Thru-Axle) |
12x148mm | 12x148mm |
| Derailleur Hanger | SRAM UDH | SRAM UDH |
| BB Type | 73mm threaded | 73mm threaded |
| Seat Post (Dropper Ready) |
31.6mm | 31.6mm |
| Max Post Insertion (With OneUp Dropper) |
280mm | 300mm |
| Seat Clamp | 35mm | 35mm |
| Rear Tire Max Clearance | 29x2.50" | 29x2.50" |
| Sprocket Max Clearance | 32-T round | 32-T round |
| Brake Rotor Clearance (IS Mount) |
203mm | 203mm |
| Wheel Size | 29" | 29" |
