Radio MTB Sonar Freecoaster Hub
£156.99
Dispatch & delivery
Checking dispatch time…
Then add UK courier delivery:
Standard tracked: 2–4 working days after dispatch
FedEx Express: 1–2 working days after dispatch
Express delivery does not shorten this wait.
Currently out of stock Use “Notify me when available” below to be notified when this item is back in stock.
Radio MTB Sonar Freecoaster Hub
"The wait is over. Our MTB specific Sonar Freecoaster Hubs are here. We worked with Wethepeople BMX to utilise their new patented “HYBRID” Freecoaster system creating a totally new type of freecoaster hub that functions unlike anything else whilst being fully convertible into a regular cassette hub with no extra parts.
Based on a similar construction to a regular cassette hub, the Radio Sonar Freecoaster Hub offers a super lightweight, simple to adjust Freecoaster hub with the durability advantages of a cassette hub. With a much larger (and fully adjustable) slack system, and a “MagnaDrive” magnetic pawl retention system, the Sonar Freecoaster requires little to no maintenance compared to the heavy and unreliable clutch style freecoasters of the past.
Despite the advantages of a Freecoaster hub, the Sonar Freecoaster Hub weighs 33% less than most Freecoaster hubs and offers zero friction and resistance making it one of the smoothest and fastest rolling hubs out there, no matter if you’re going forwards or backwards.
We’ve been working extremely hard with Radio MTB team rider Niklas Tilk for over 4 years now to get this thing perfect. Available with 135mm spacing, a disc mount and an option of a 10t 1pc and 12t cog driver; these hubs have been a huge amount of work but we are well and truly stoked and pleased with the end result."
- RADIO BIKES
SONAR FREECOASTER HUB SPECS
MATERIAL • 6061-T6 Alloy hub shell & 7075-T6 axle, stainless bolts
SIZE • 135mm x 10mm, 32h
BEARINGS • x5 sealed high-grade stainless bearings
DRIVER • 10t 1pc or 12t cog (mini hg) driver
COLOUR • black & nebula purple
DIMENSIONS • PCD (DISC) 58mm, PCD (R) 58mm, Flange Spacing 67.75mm, Flange Offset (DISC) 32.21mm, Flange Offset (DRIVE) 35.54mm
FEATURES
MTB specific freecoaster hub with 135mm spacing
First hub of its kind in MTB, exclusive to Radio Bikes

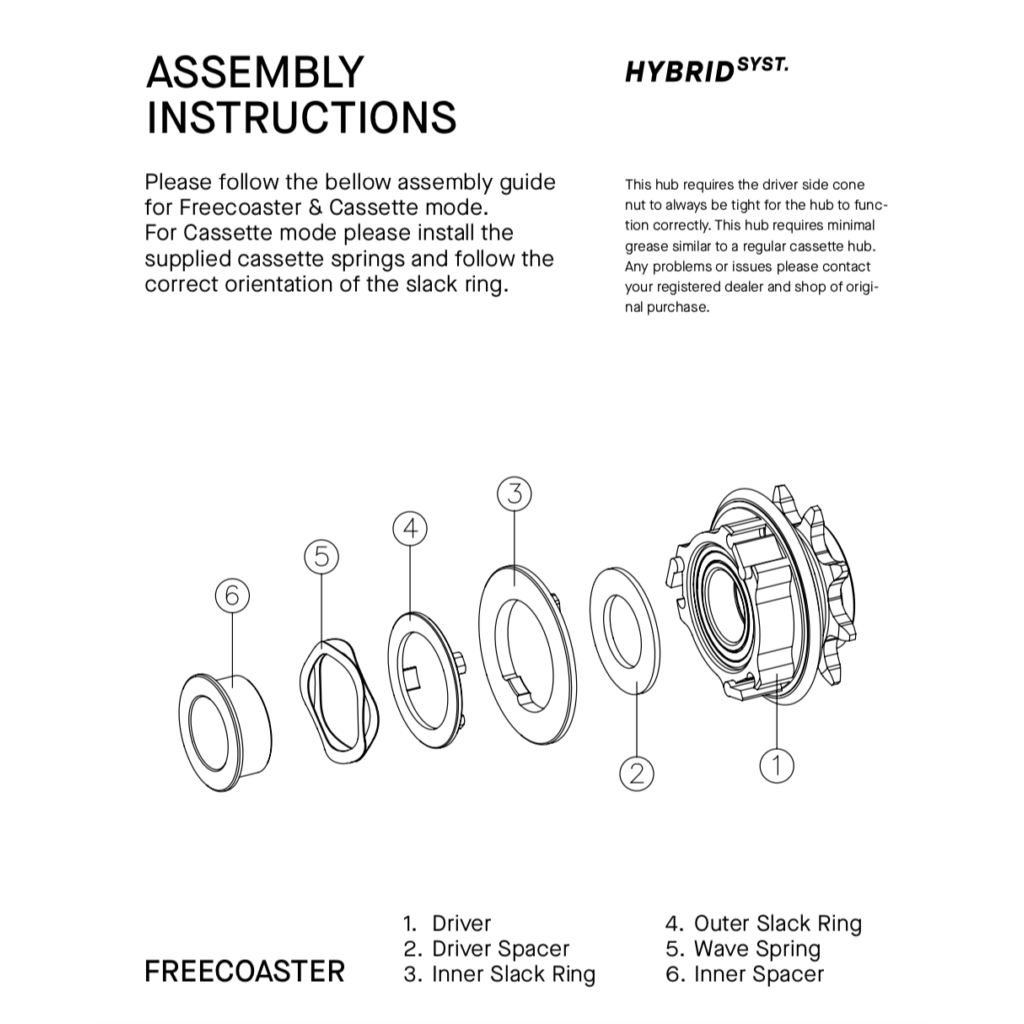

Super lightweight hub using Wethepeople patented “HYBRID SYSTEM” Internals
adjustable gap / slack
Zero drag system makes it one of the fastest hubs out
“MagnaDrive” Magnetic pawl retention system

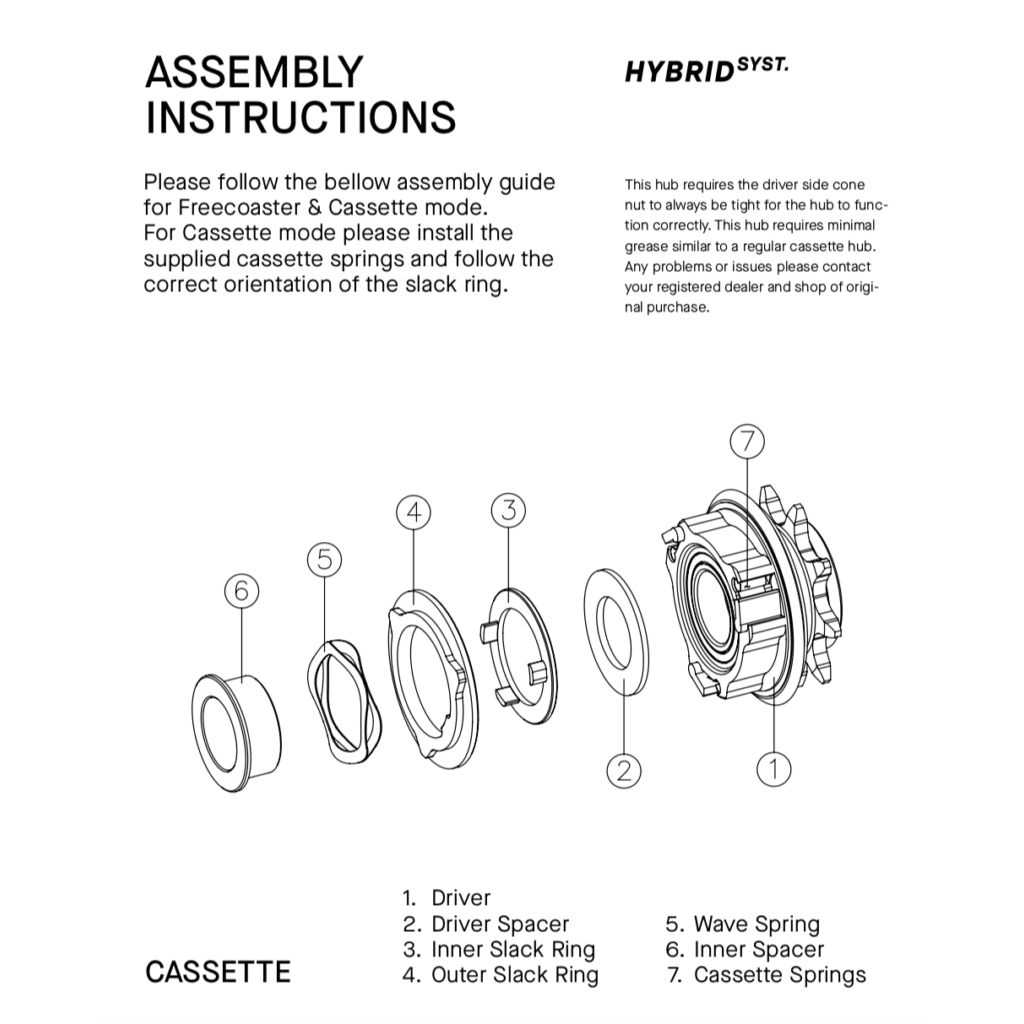

Easily convertible into a cassette hub (all parts incl.)

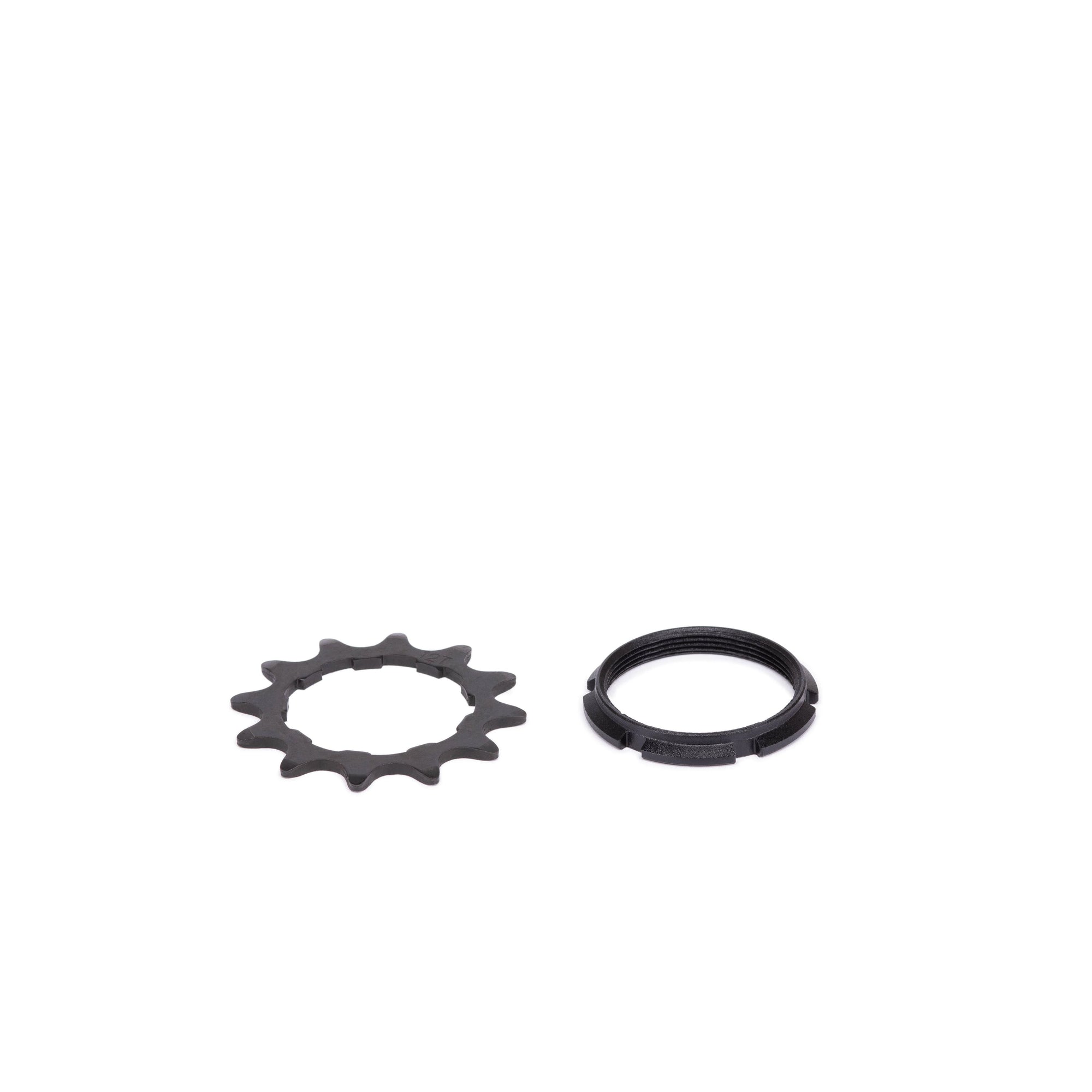

10t one-piece driver or Mini HG cog driver (inc. 12t cog)
6 bolt-disc mount
33% lighter than a conventional clutch style freecoaster hub
Incredibly durable and maintenance-free system
WEIGHT
• 457g / 16.1oz (12t)
• 442g / 15.6oz (10t)
