£299.00 Sale • Save
Colour Black
Length 155mm

Dispatch & delivery

Checking dispatch time…

Then add UK courier delivery: Standard tracked: 2–4 working days after dispatch FedEx Express: 1–2 working days after dispatch
Adding to Cart Added to Cart

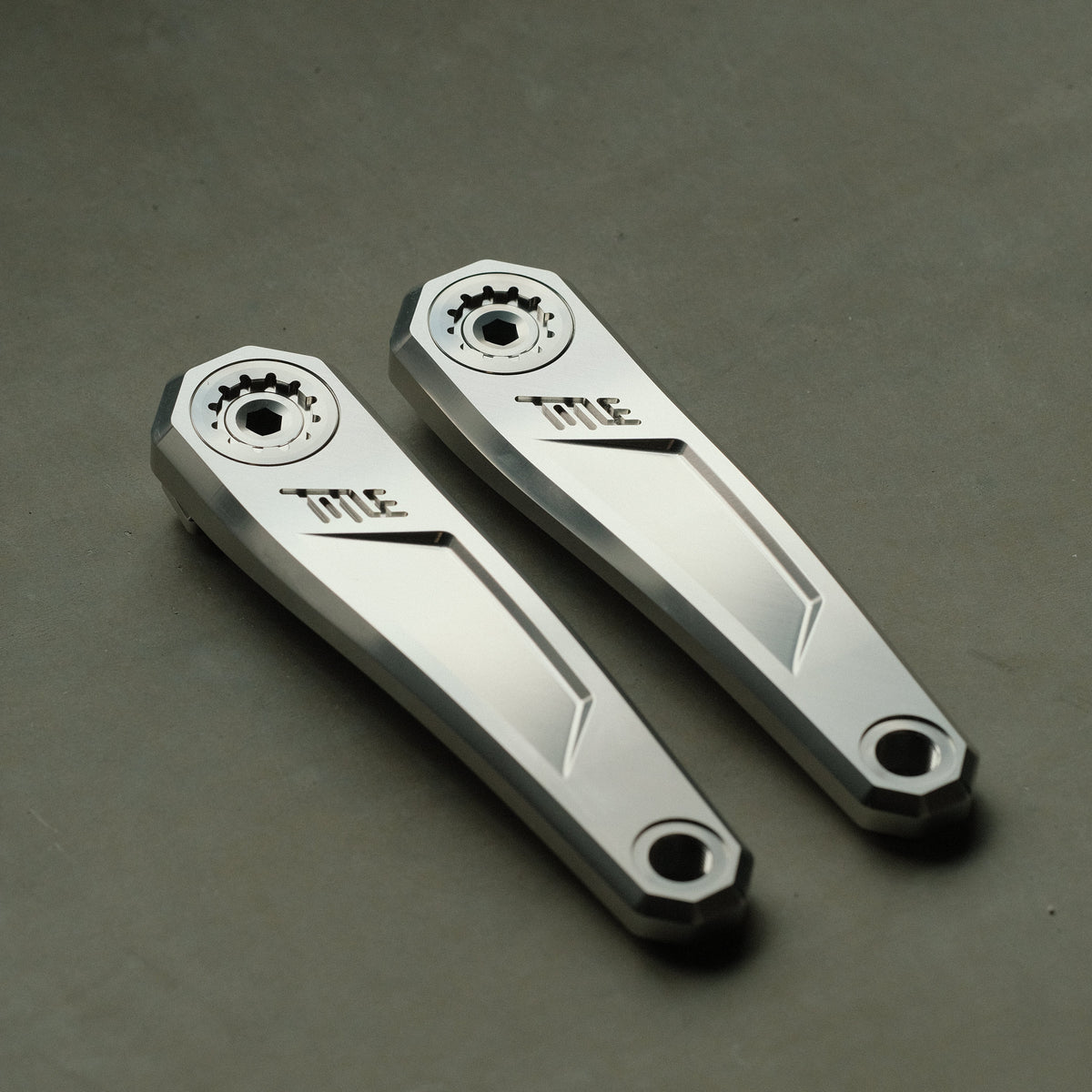

The TITLE MTB CR1 Crankset is a three-piece mountain bike crankset machined from 7075-T6 aluminium, built for strength and stiffness. It uses a 29mm spindle and fits SRAM 8-bolt direct mount chainrings and SRAM DUB 29mm bottom brackets only.

The spindle is sold separately. Choose the spindle width to suit your frame's rear hub spacing, drivetrain standard and chainstay clearance.

Features

  • Three-piece crank design
  • 29mm crank spindle diameter
  • Aluminium pre-loader
  • Machined from 7075-T6 aluminium
  • Anodised matte black or chrome finish
  • SRAM 8-bolt direct mount compatible only
  • Compatible with SRAM DUB 29mm bottom brackets only
  • Compatible with the TITLE CR1 spindle
  • Chainring not included

Spindle guide

  • 130mm spindle: 52mm chainline, 168.5mm Q-factor, 70.25mm arm clearance. Fits dirt jump, XC and trail frames with 135mm, 142mm or 148mm Boost rear spacing
  • 136mm spindle: 55mm chainline, 174.5mm Q-factor, 73.25mm arm clearance. Fits modern 29er trail and enduro frames with wide chainstays and increased tyre clearance. Required for SRAM T-Type drivetrains
  • 145mm spindle: 56.5mm chainline, 183.5mm Q-factor, 77.75mm arm clearance. Fits downhill and Super Boost+ frames with 157mm rear spacing. Requires a 6mm offset chainring to keep the correct chainline

Chain compatibility

  • SRAM T-Type: compatible exclusively with SRAM T-Type 12-speed drivetrains
  • Shimano HG12: compatible with Shimano HG 12-speed chains including XTR CN-M9100/M9200, XT CN-M8100/M8200 and SLX CN-M7100/M7200
  • Regular: compatible with most 9 to 12-speed drivetrains, including all SRAM 9/10/11/12-speed systems, Shimano 9/10/11-speed systems, KMC 9/10/11-speed chains and single-speed setups

Specifications

  • Crank length options: 155mm, 160mm, 165mm
  • 165mm CR1 crankset with 136mm spindle: 680g
