Radio Race Coblat Pro Complete BMX Bike - 20.75"
Radio Race Coblat Pro Complete Bike - 20.75"
- FRAME: 6061-T6 alloy frame, forged dropouts with int. chaintensioner
- FORK: crmo fork, 1-1/8" butted steerer, hi-ten fork legs, 30mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "COBALT" grips, diamond knurling, closed end, flangeless, 130mm length
- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy
- HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"
- BRAKE LEVER: PROMAX "XL-378" brake lever, rear
- BRAKE: PROMAX "TX-117" brake, rear
- CRANK: RADIO RACELINE "COBALT" 3pc crank, forged alloy, 175mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "COBALT PRO" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 44T, alloy
- DRIVER: ATA freewheel, 16T, 1/2" x 3/32", crmo

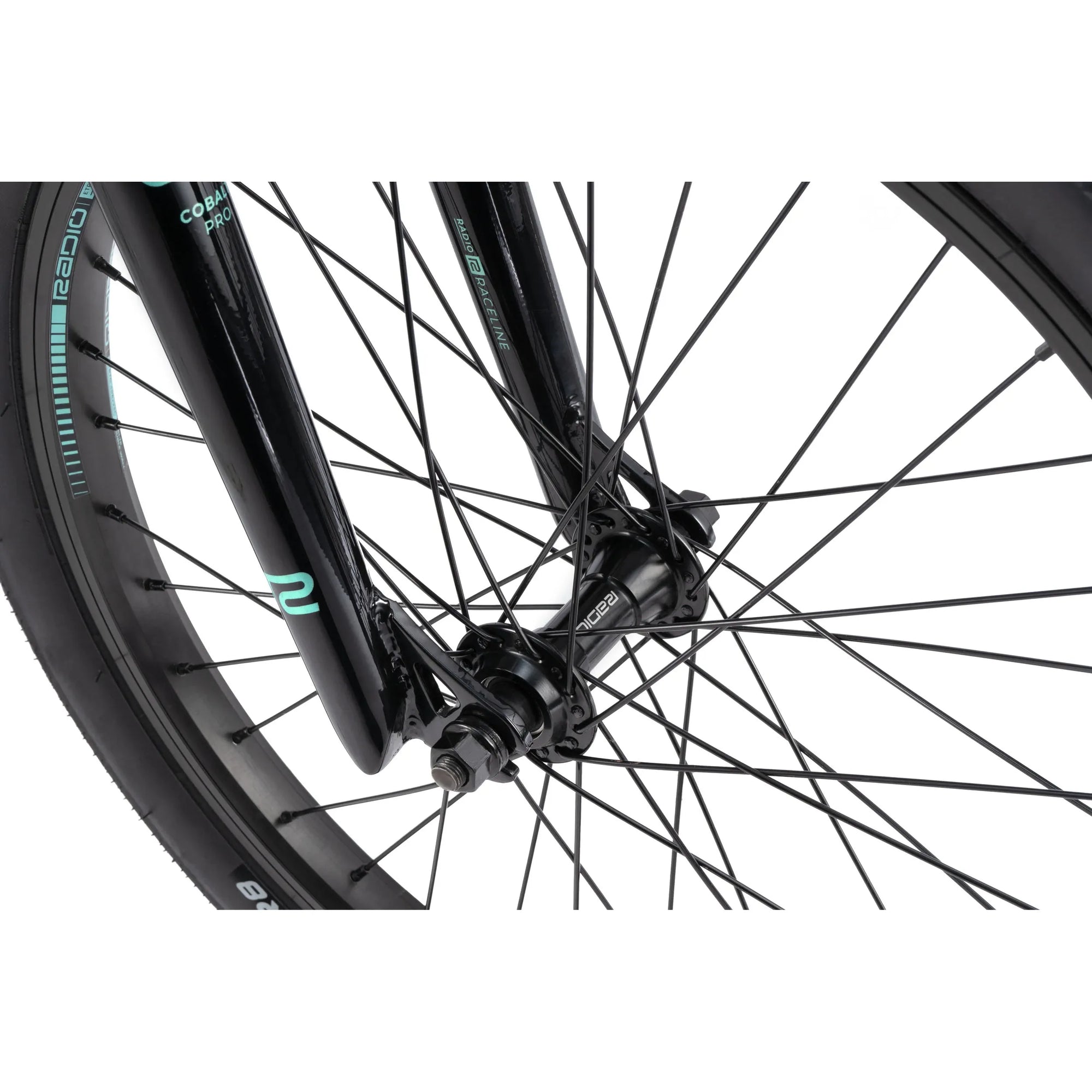

- FRONT HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle
- REAR HUB: RADIO RACELINE "COBALT" rear hub, alloy cnc, fully sealed, 36h, flip flop, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "BX-32" rim, double wall, 36h, alloy
- REAR RIM: RADIO RACELINE "BX-32" rim, double wall, 36h, alloy
- SEAT: RADIO RACELINE "COBALT PRO" combo seat
- SEAT POST: RADIO RACELINE seat post, 25.4mm, alloy
- SEAT CLAMP: RADIO RACELINE seat clamp, forged alloy
- TIRES: ARISUN "XLR8" tires, front: 20" x 1.95" and rear: 20" x 1.75"
Weight: 9.95kg / 21.93lbs
Frame Geometry:
| Top Tube Length | 20.75" |
| Chain Stay Length | 14" |
| Head Tube Angle | 73° |
| Seat Tube Angle | 72° |
| Bottom Bracket Height | 11.5" |
Handlebar Geometry:
| Rise | 7.5" |
| Width | 28" |
| Backsweep | 11° |
| Upsweep | 3.5° |
