Radio Bikes Revo 20 Pro FS BMX Complete Bike
Radio Bikes Revo 20 Pro FS BMX Complete Bike
The REVO line gives riders their first taste of the BMX world on a bike that’s both solid and well-designed. Every component has been carefully selected to ensure the bike rides great straight out of the box, is easy to maintain, and can be upgraded over time.
Despite its accessible price, the REVO range comes packed with quality features such as 25-9 gearing, tapered fork legs, and short, responsive, pro-inspired geometry – everything you need to start progressing with confidence.
The REVO 20" PRO FS builds on the popular REVO PRO 20” and adds a front U-brake and rotor setup, giving you everything you need to get riding freestyle right away – and plenty of room to grow your skills.
Specifications

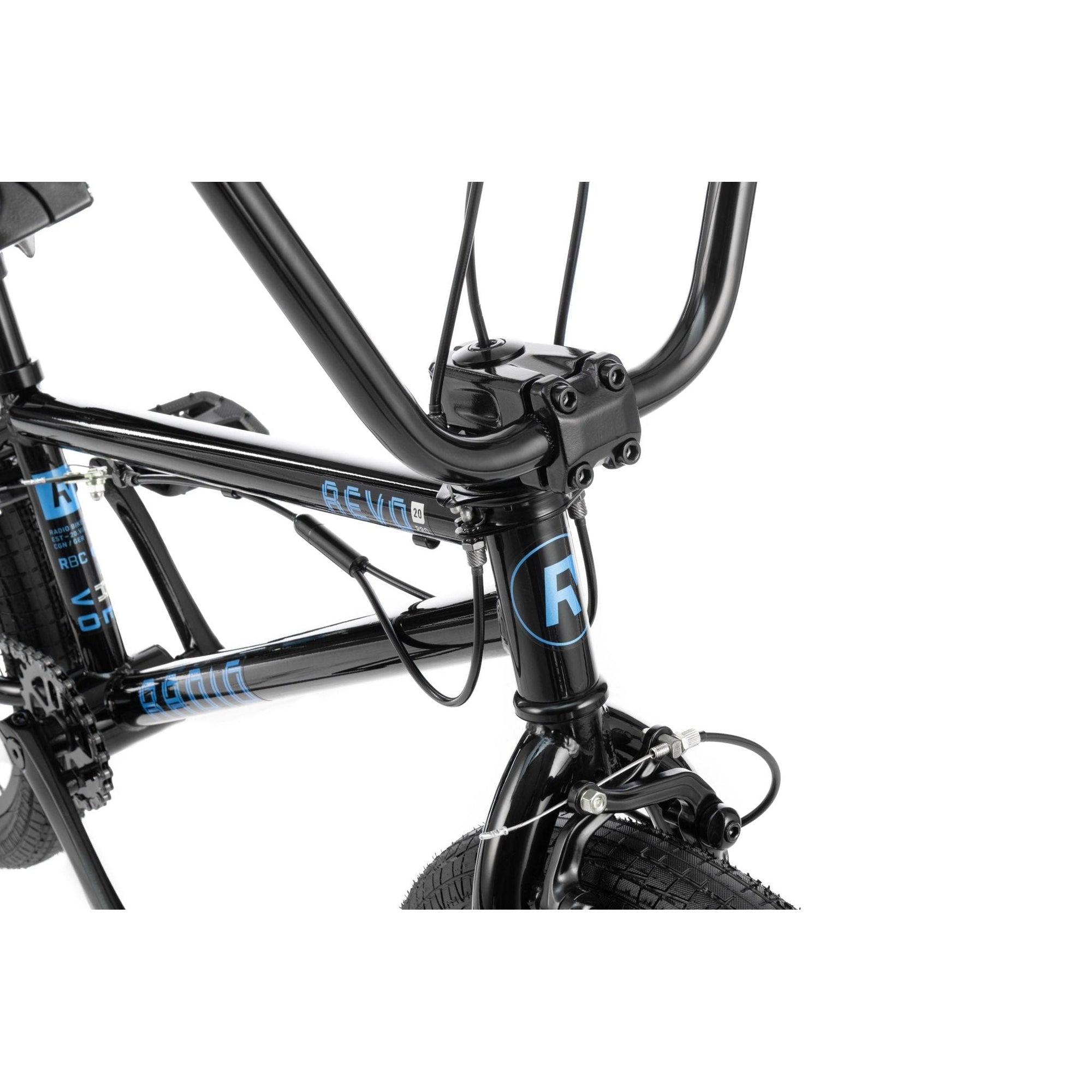

Frame: RADIO “REVO PRO FS 20” – full 1020 hi-ten steel
Fork: RADIO “AM 20” – 1020 hi-ten, crmo steerer, welded pivots

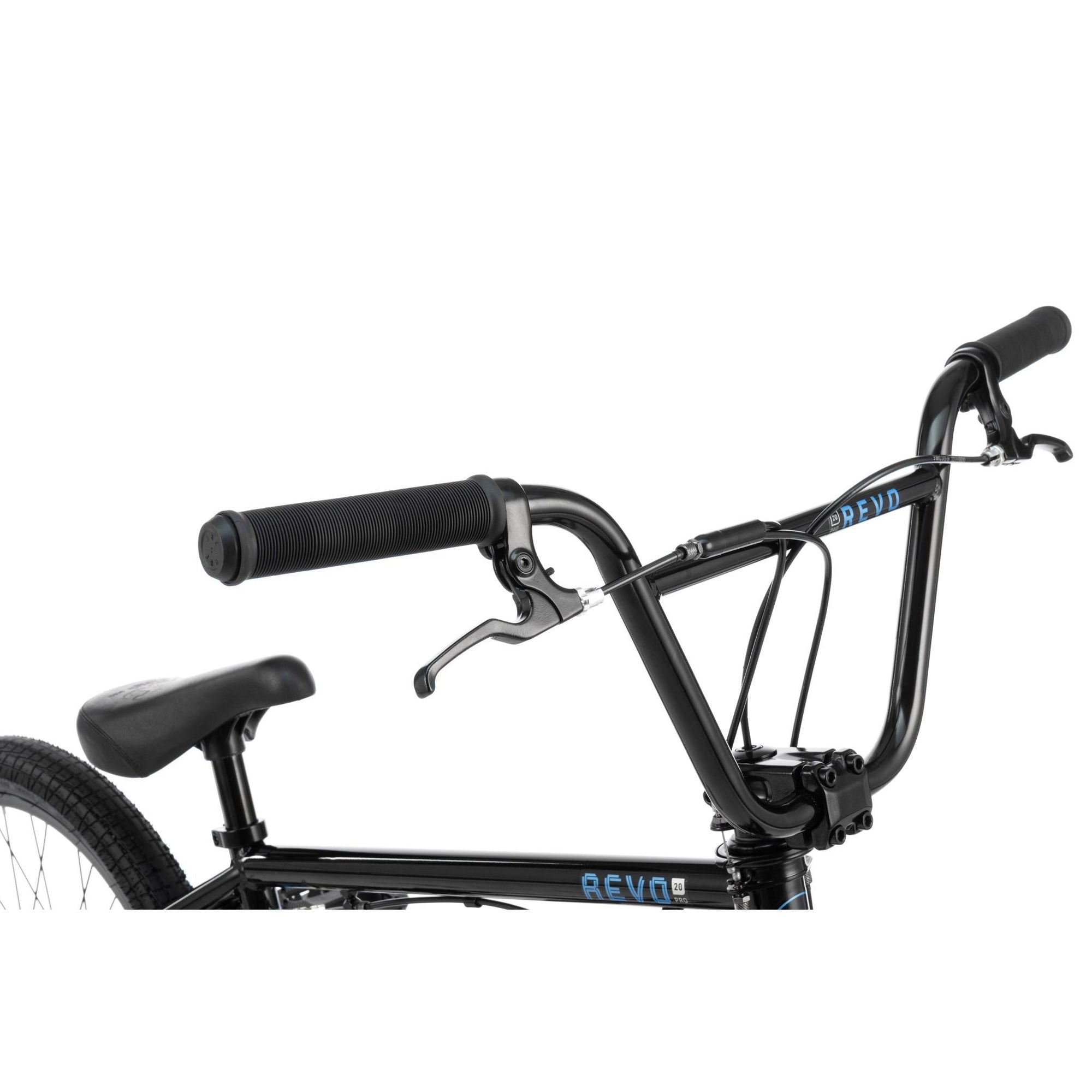

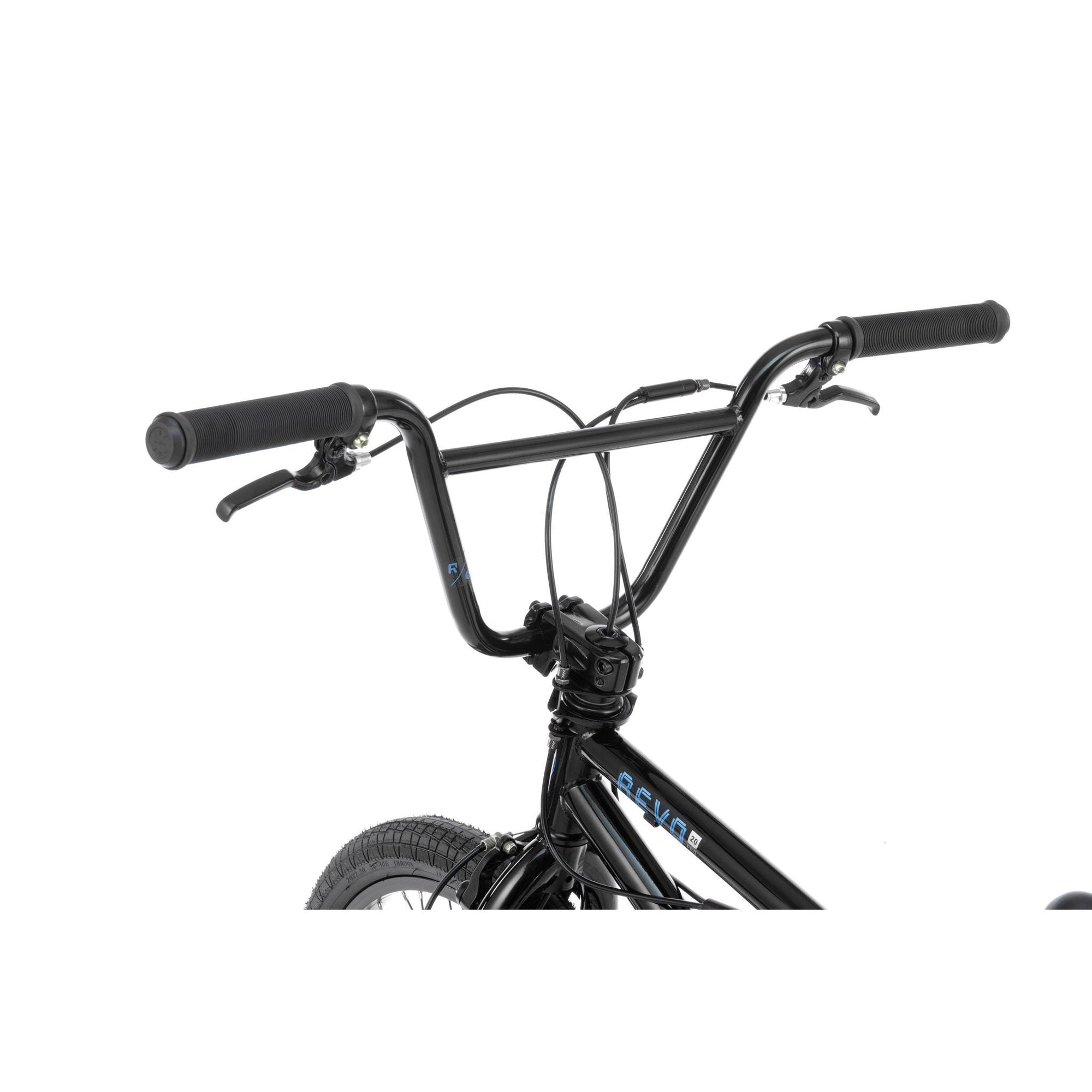

Handlebar: RADIO “REVO PRO FS 20” – hi-ten
Grips: RADIO “AM” – flangeless, 150mm
Rotor: SALT “AM” rotor with SALT “AM” rotor cables

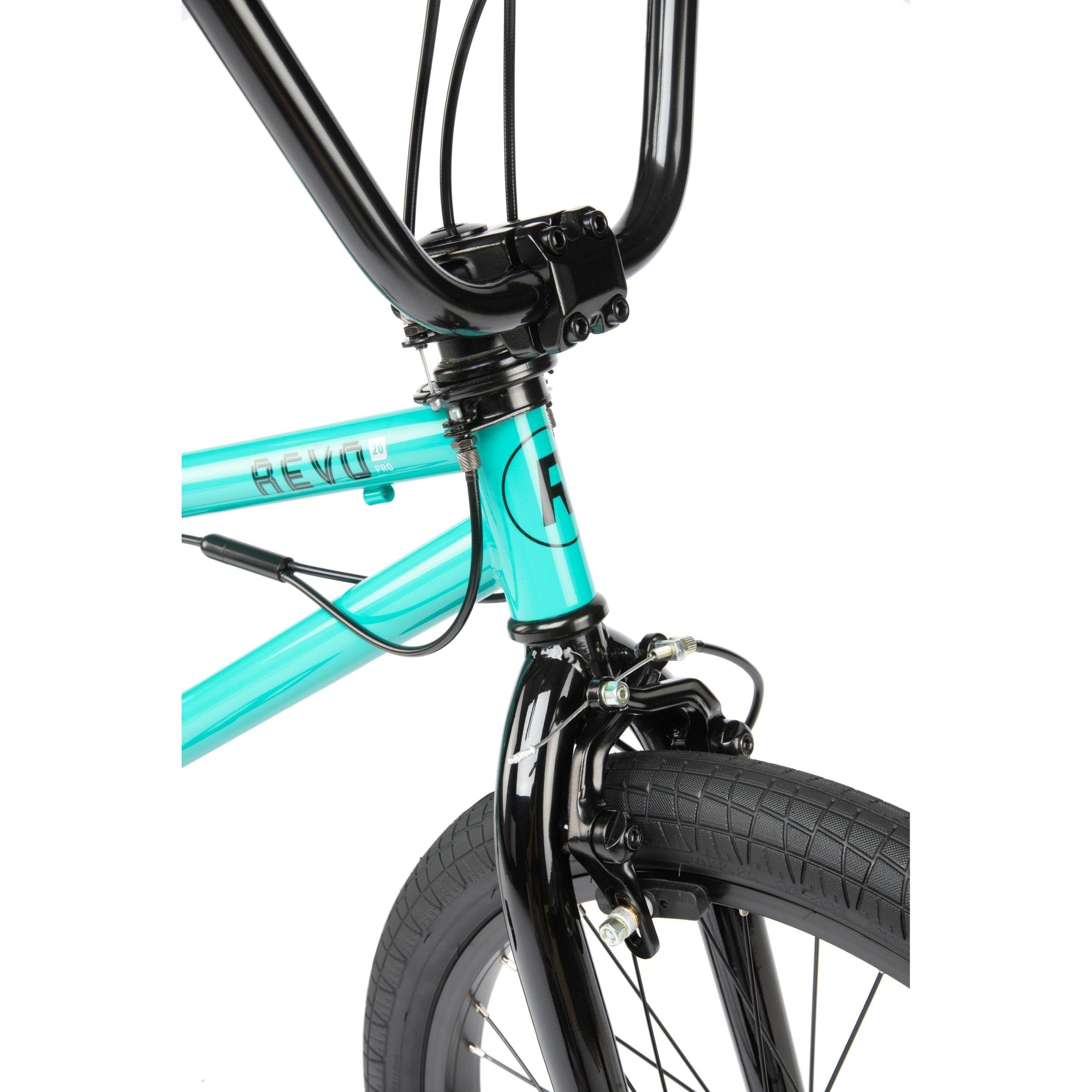

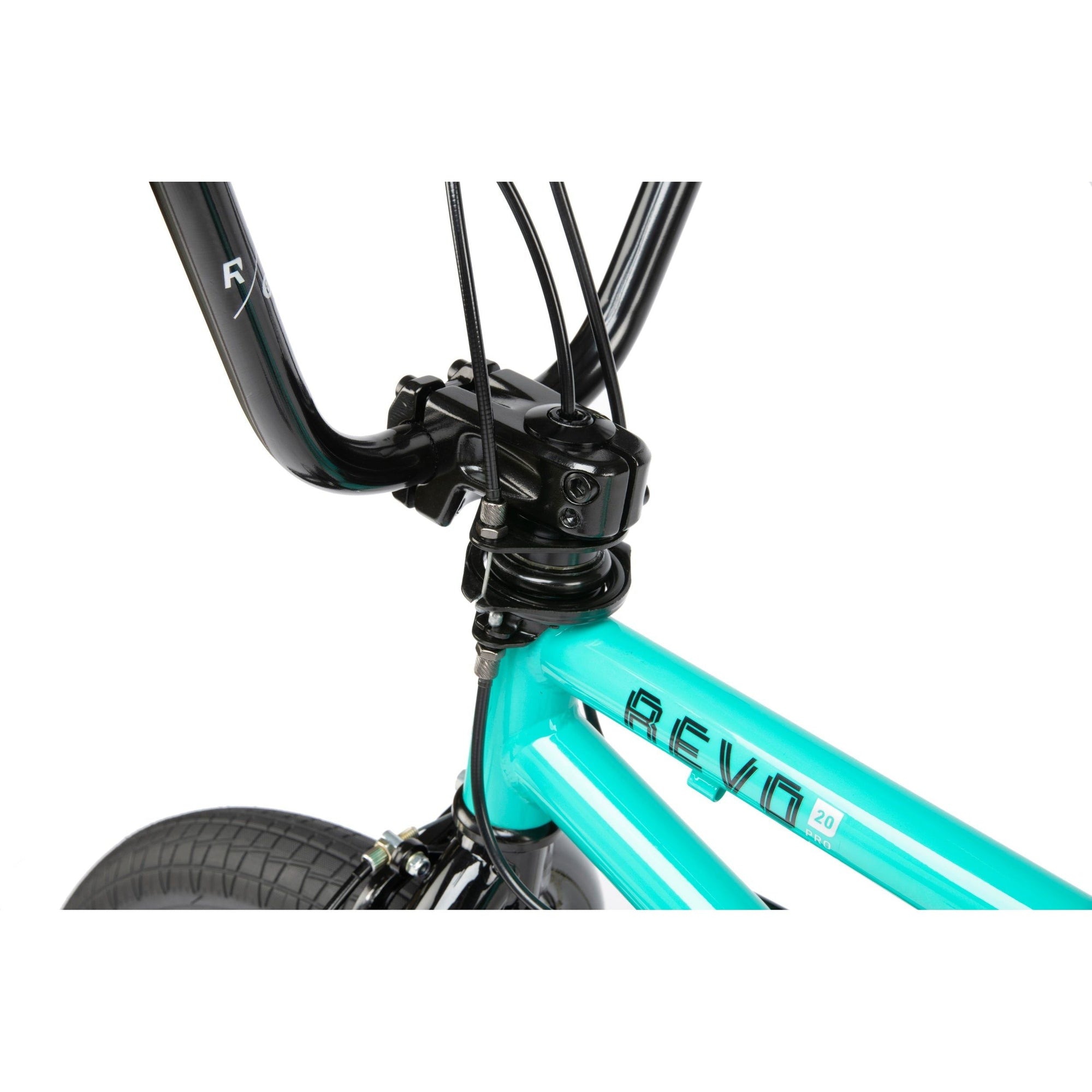

Stem: SALT “AM” frontload – 48mm reach
Headset: FSA A-headset – loose ball
Brake Levers: RADIO “AM” – alloy, front & rear

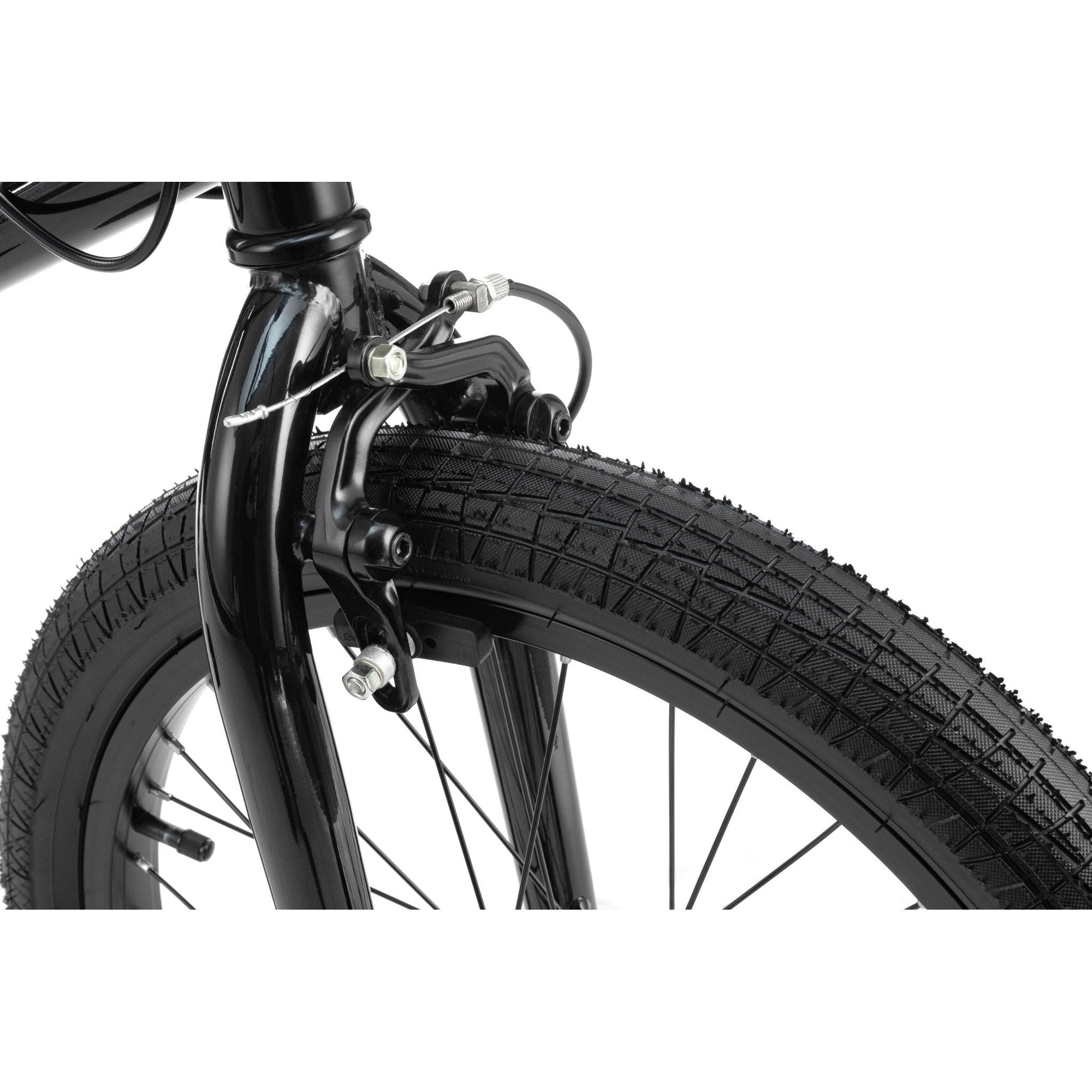

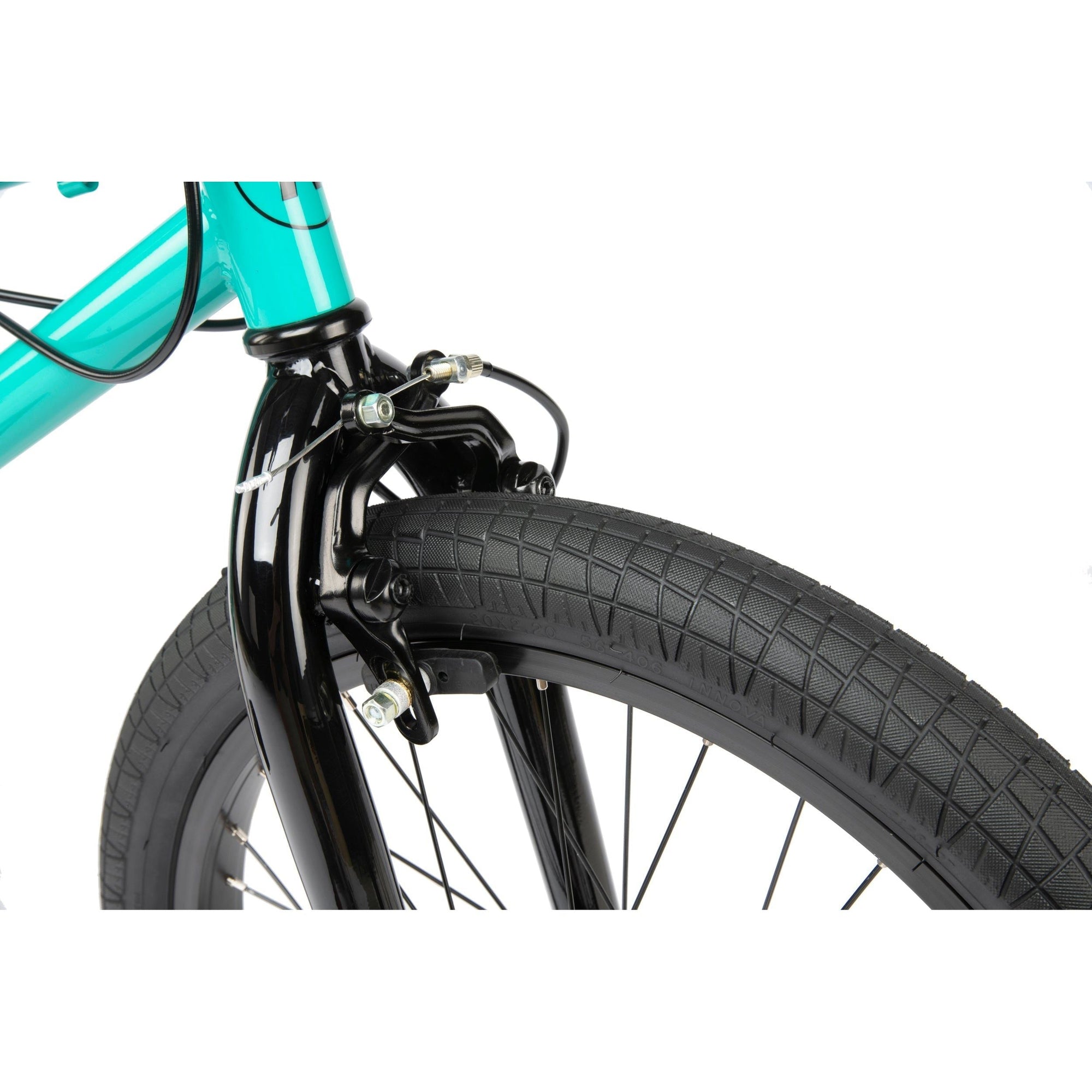

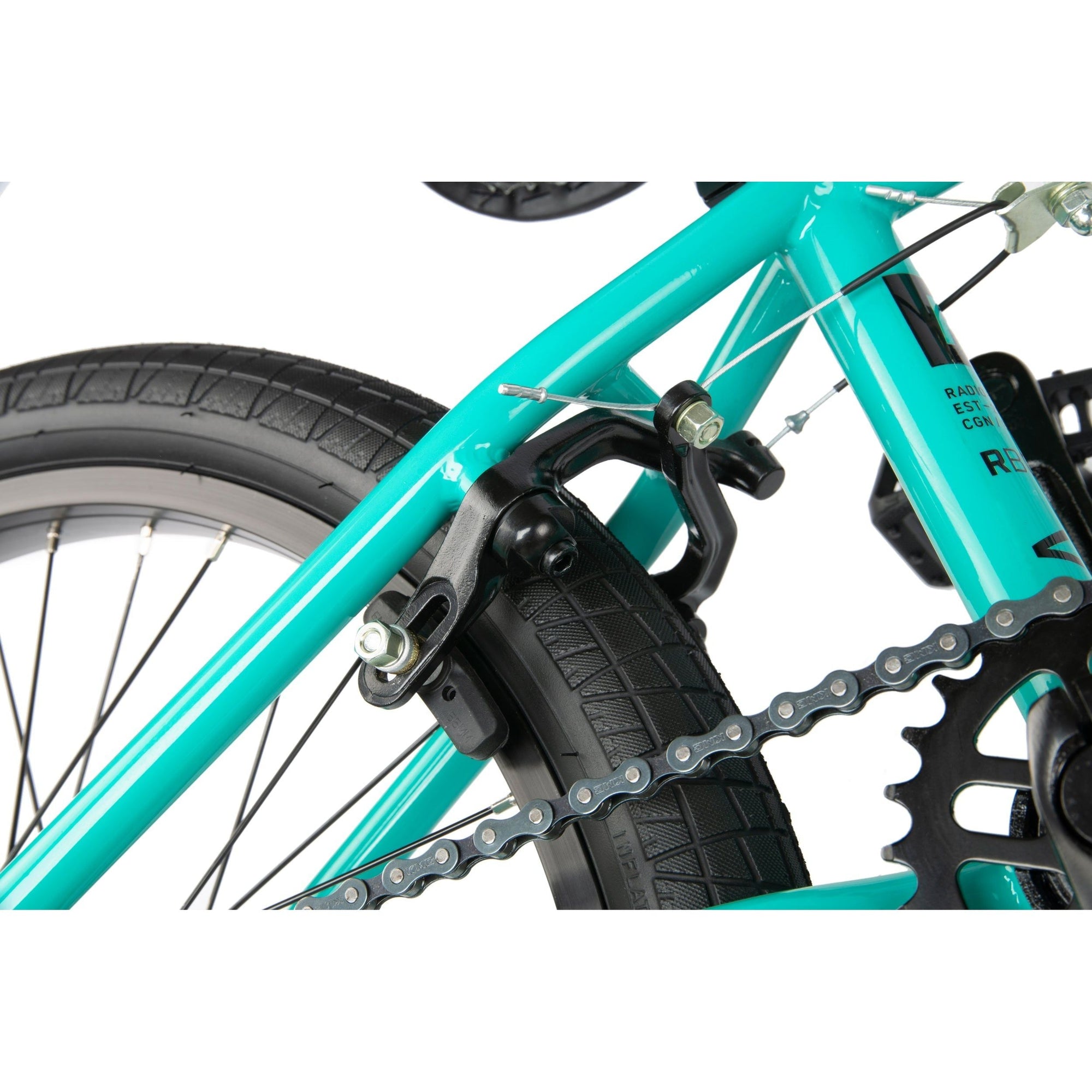

Brakes: RADIO “AM” U-brakes – alloy, front & rear

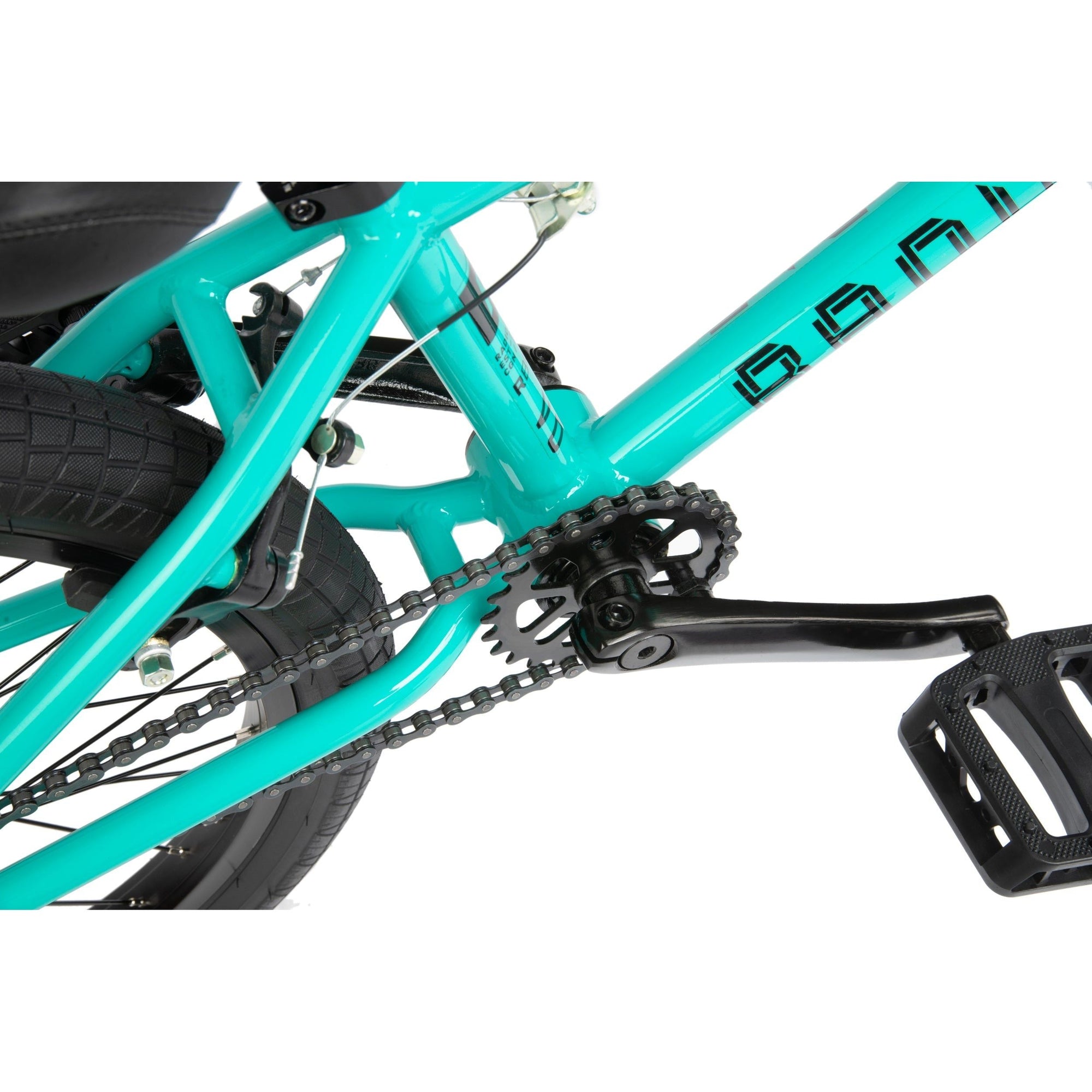

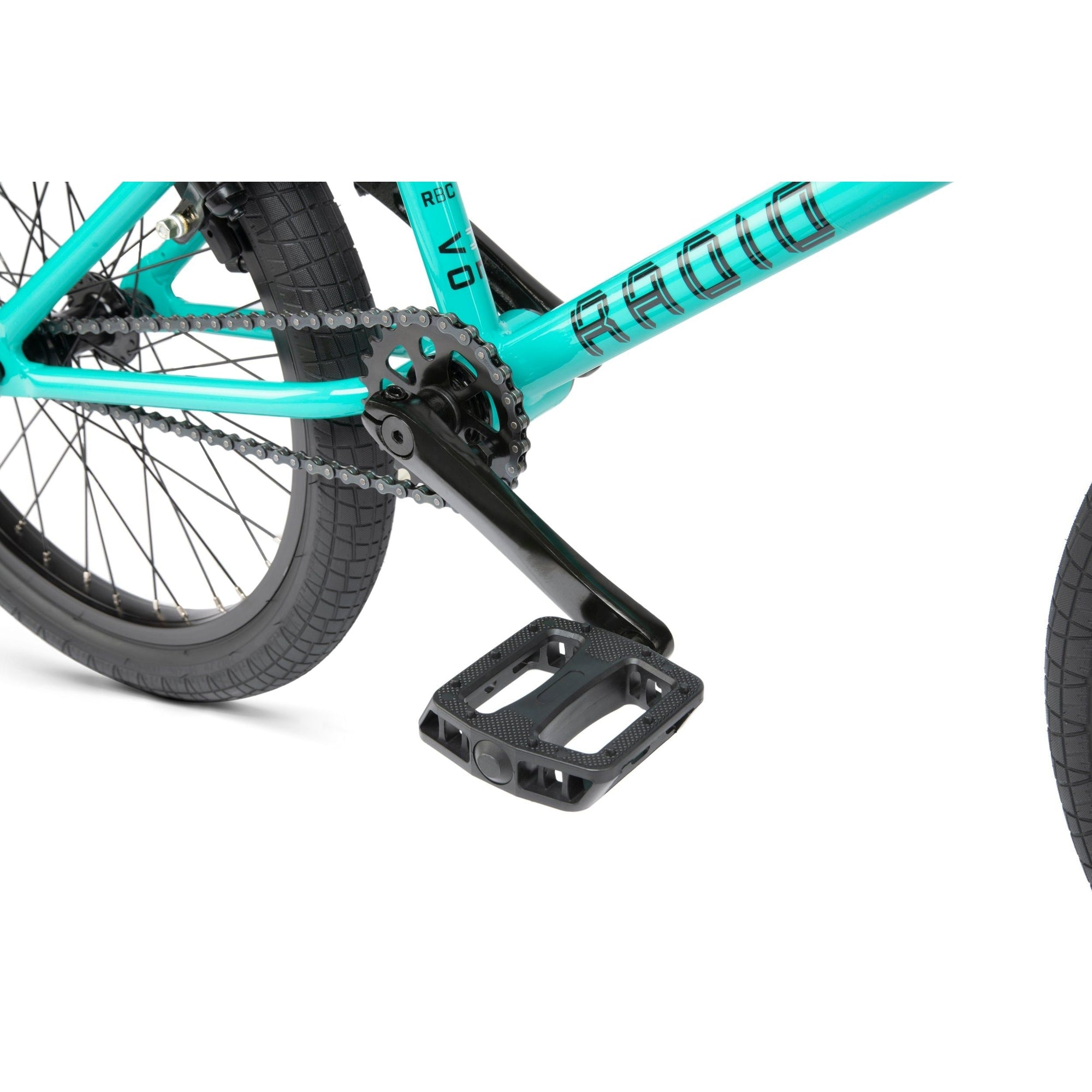

Crank: RADIO “ROOKIE” 3-piece – forged crmo, 170mm
Bottom Bracket: RADIO “US” – loose ball

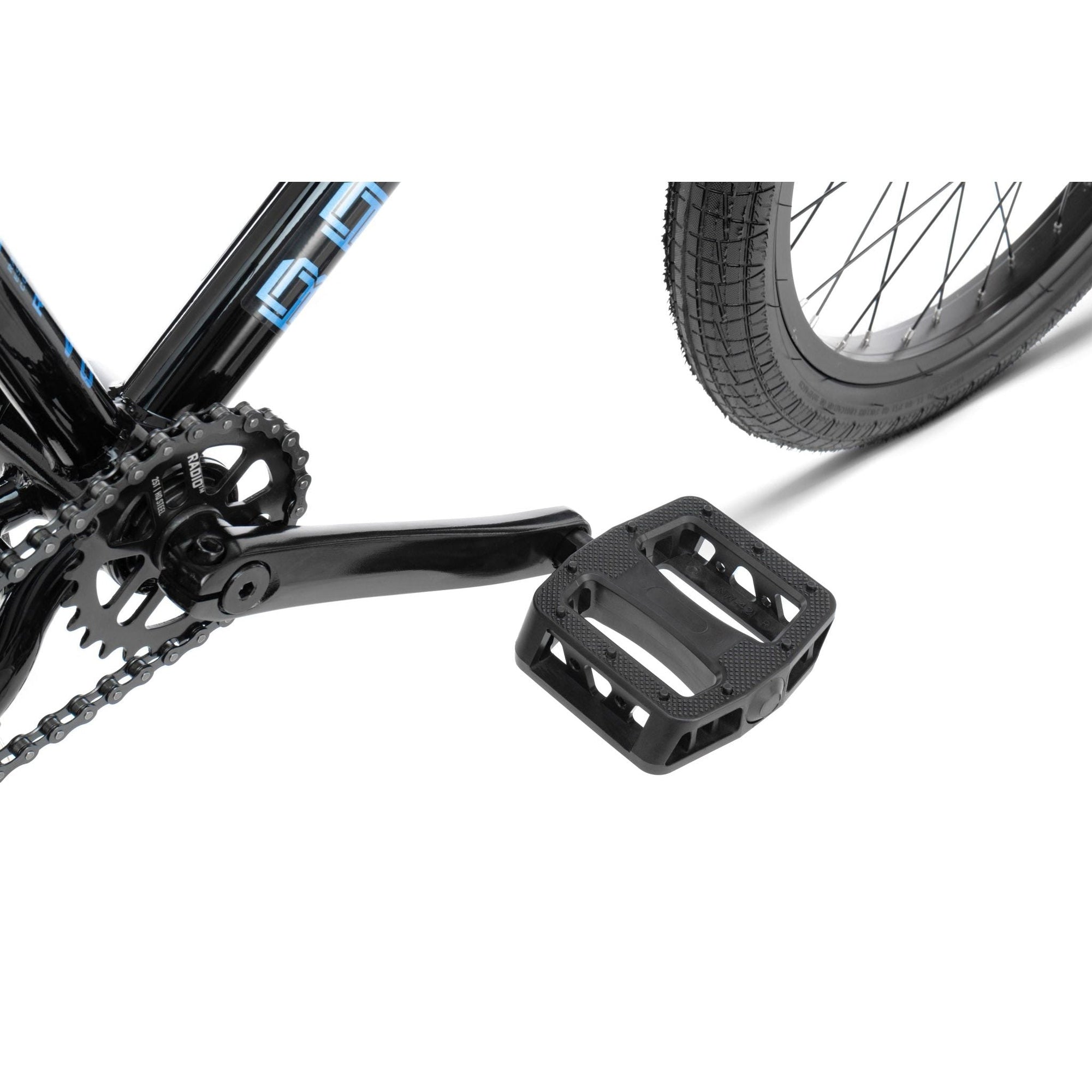

Pedals: RADIO “ROOKIE” – nylon
Chain: KMC “S1”

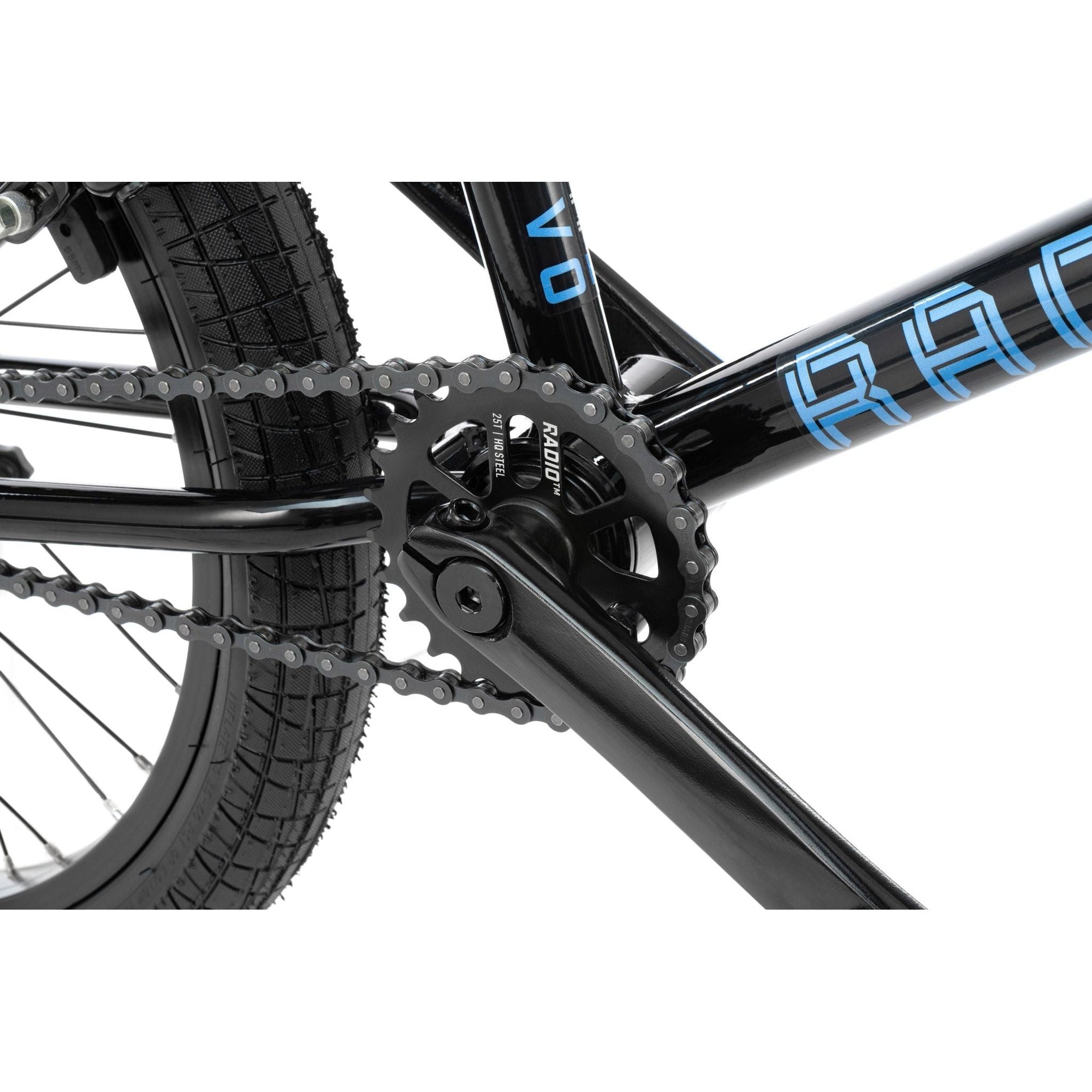

Sprocket: RADIO “ROOKIE” – steel, 25T
Driver: Cassette driver, 9T

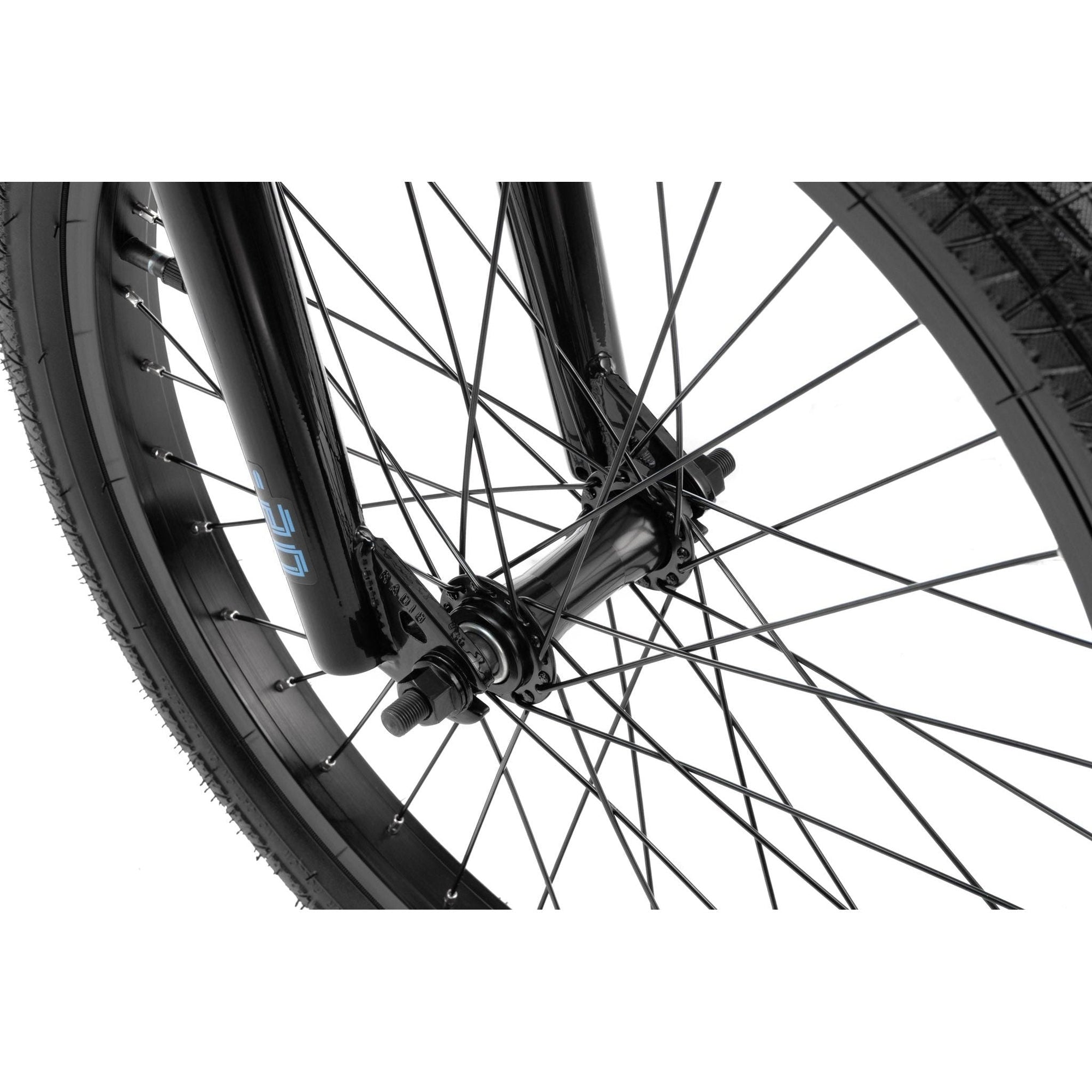

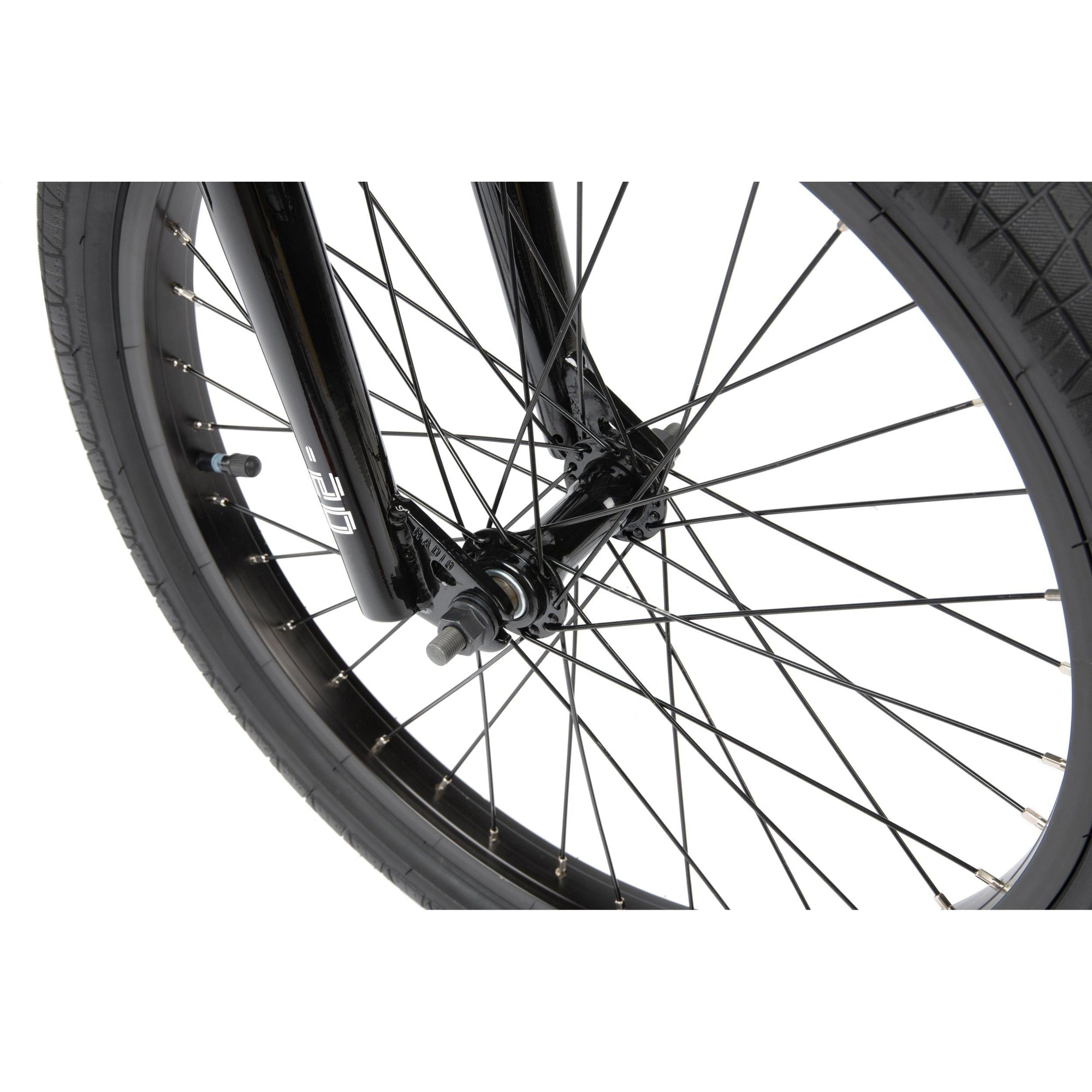

Front Hub: RADIO “ROOKIE” – steel, loose ball, 3/8", 36h

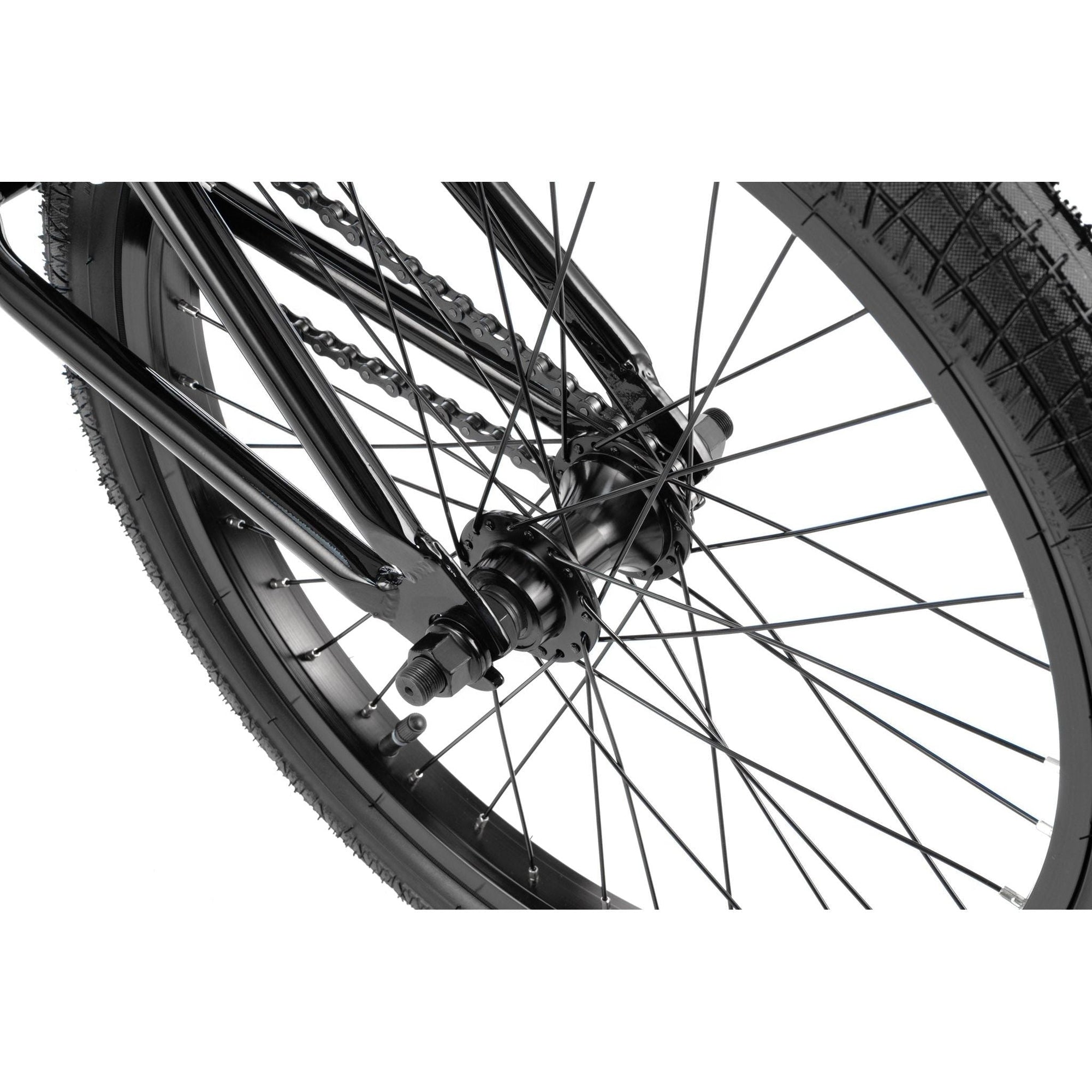

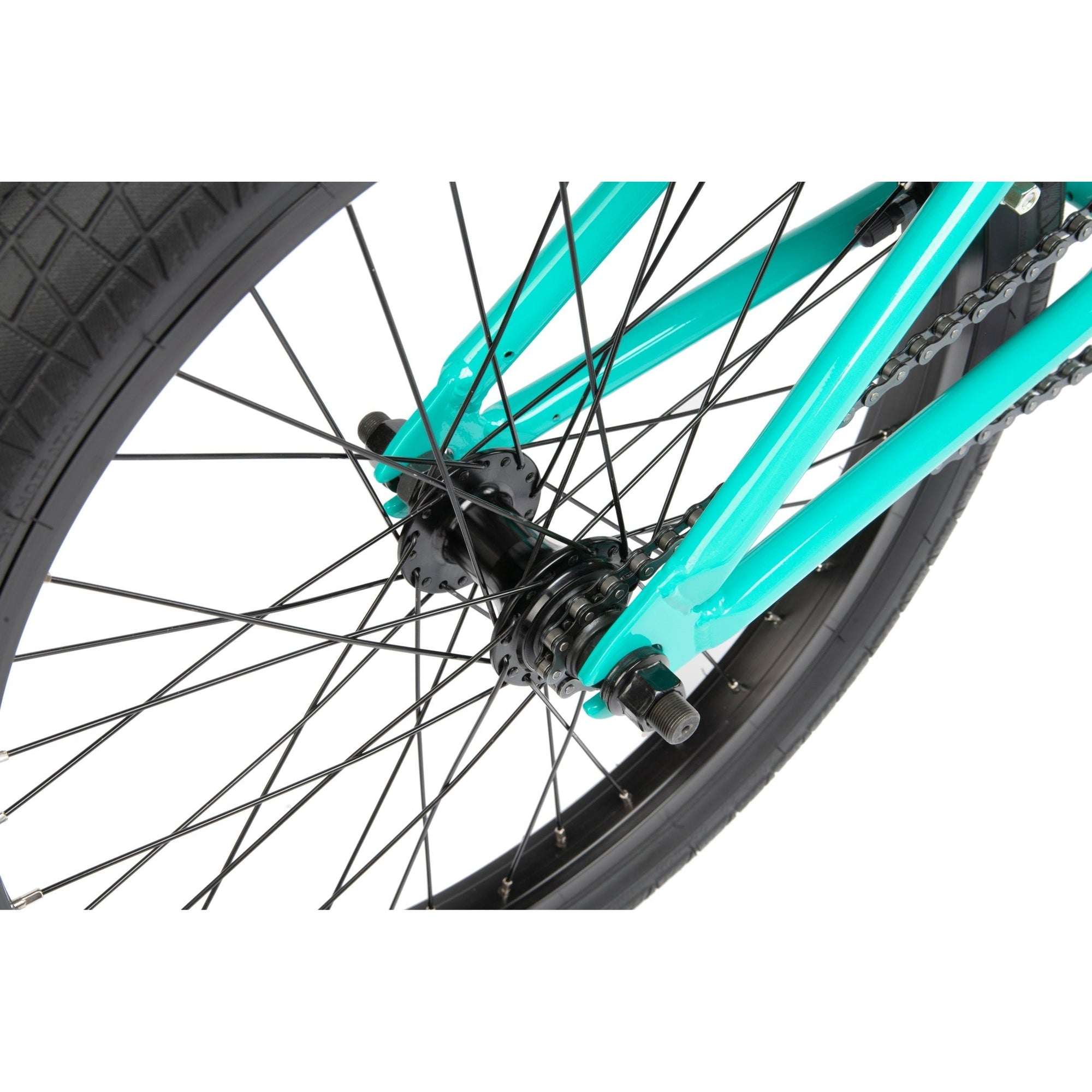

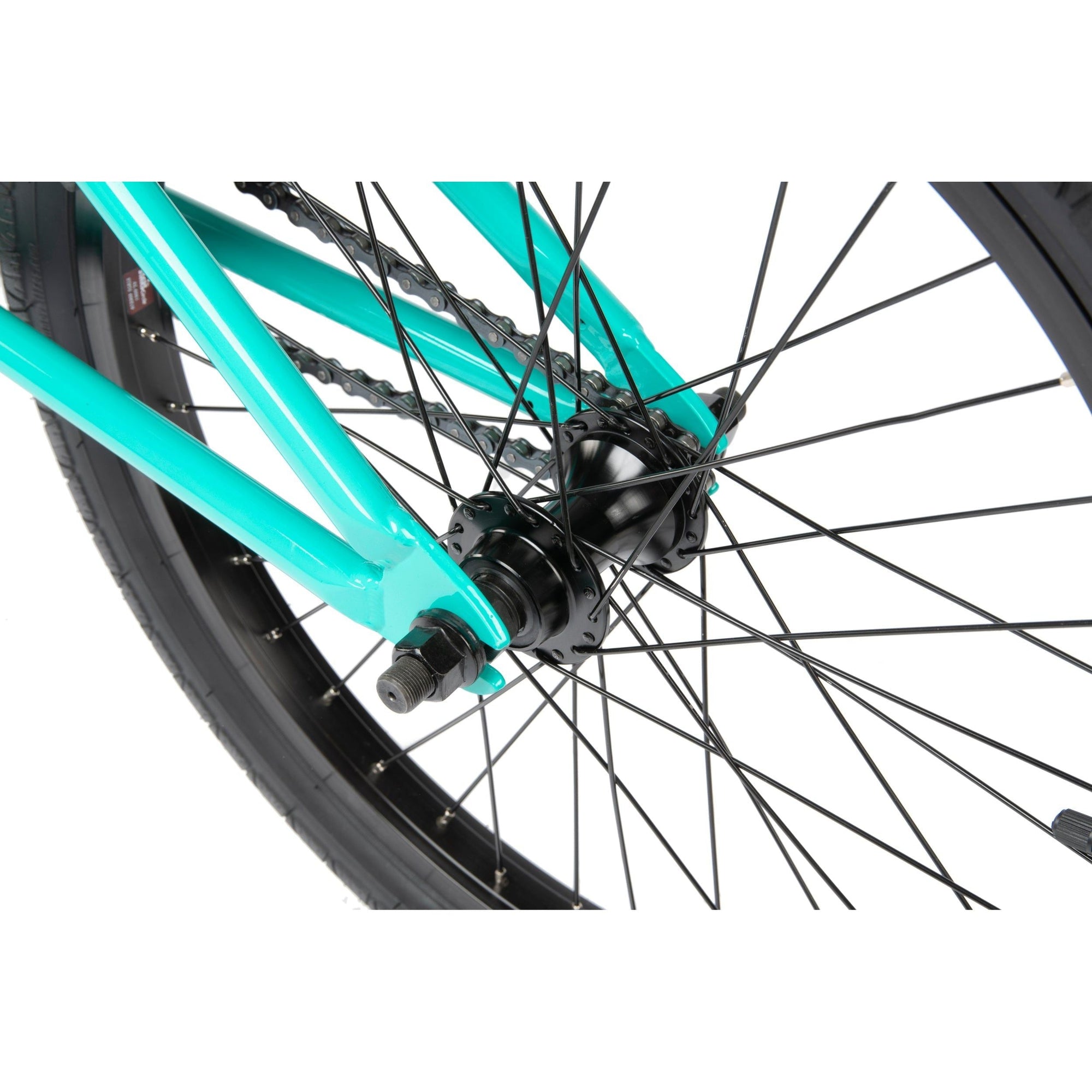

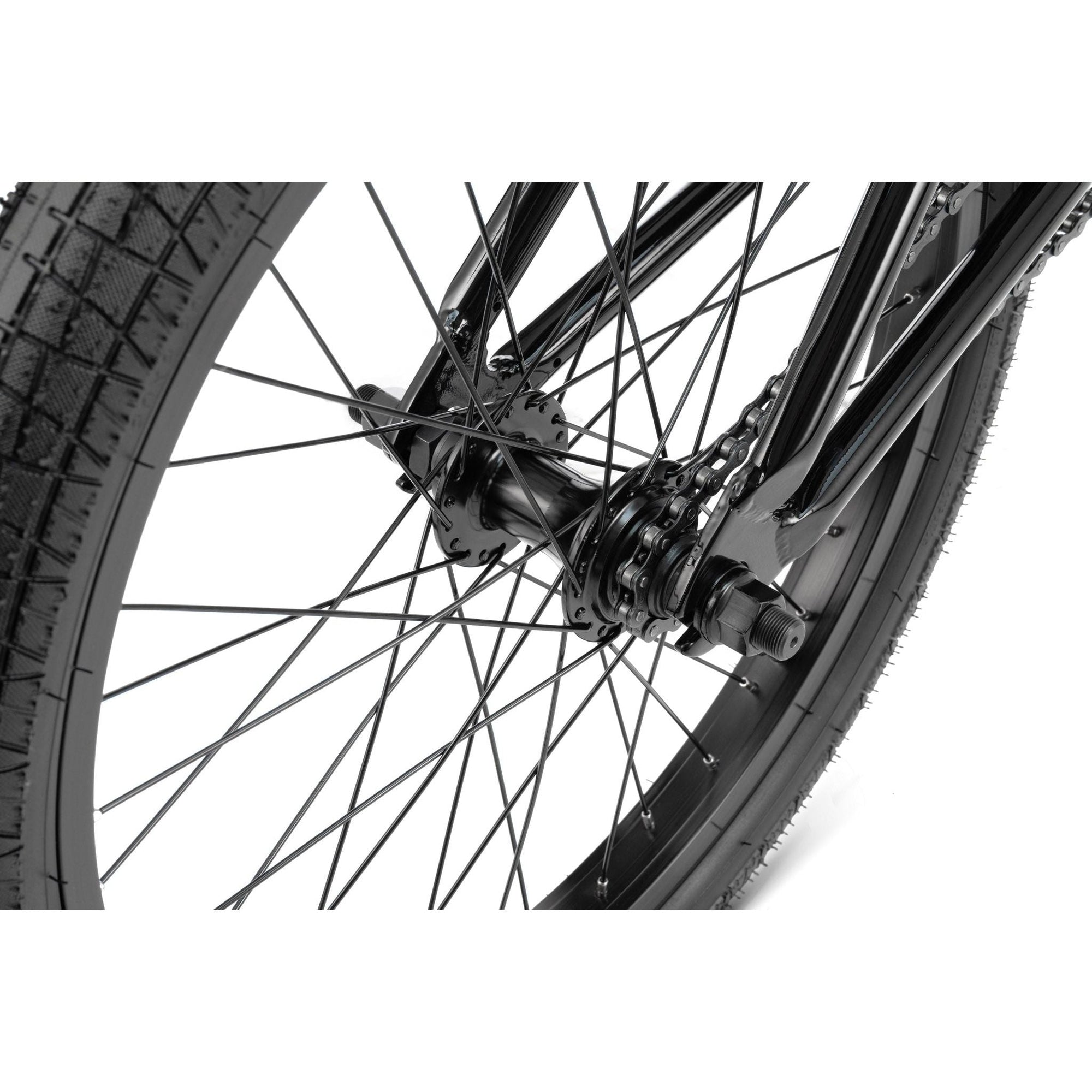

Rear Hub: RADIO “ROOKIE” cassette – steel, loose ball, 14mm axle, 36h
Rims: SALT “AM” straight single-wall, 36h (front & rear)

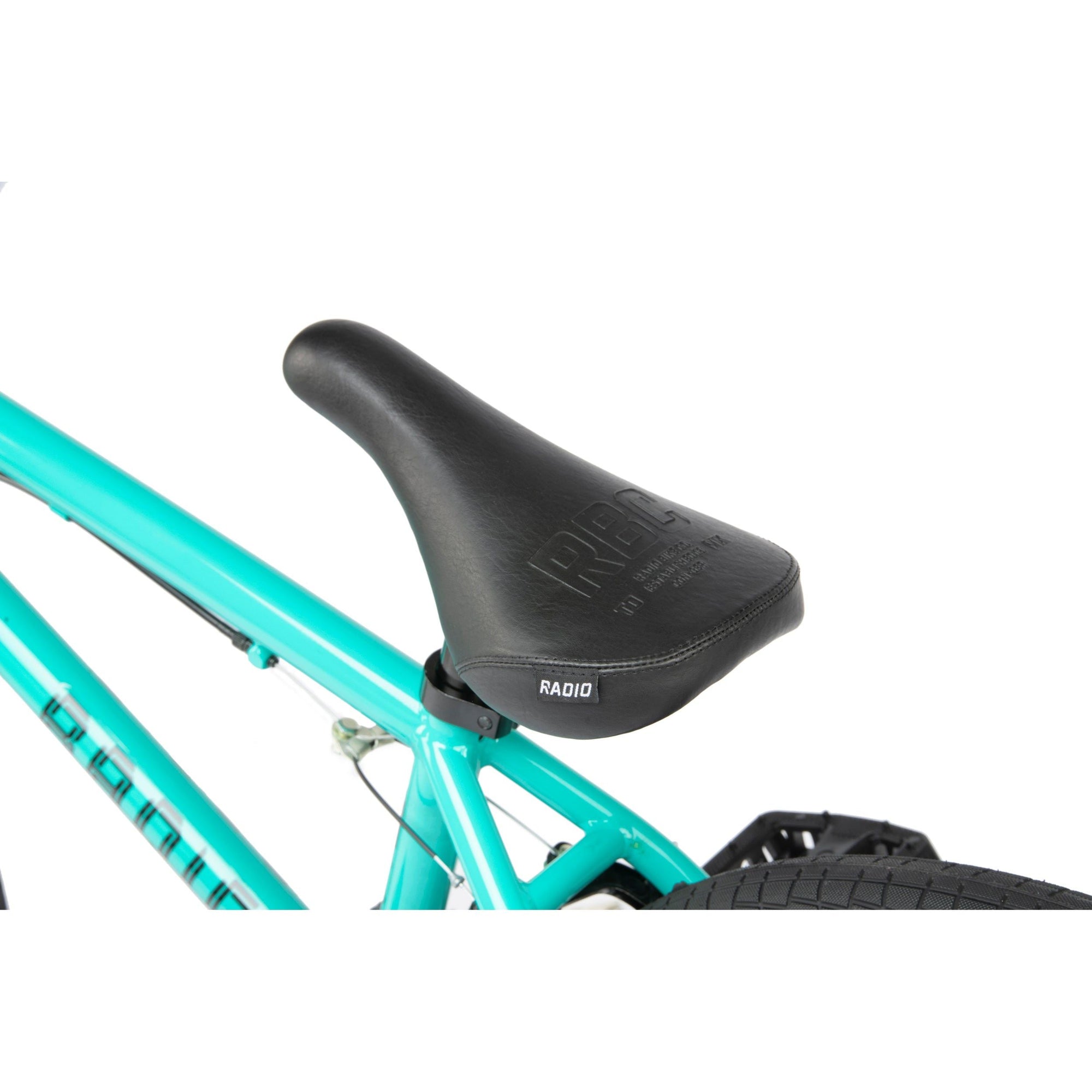

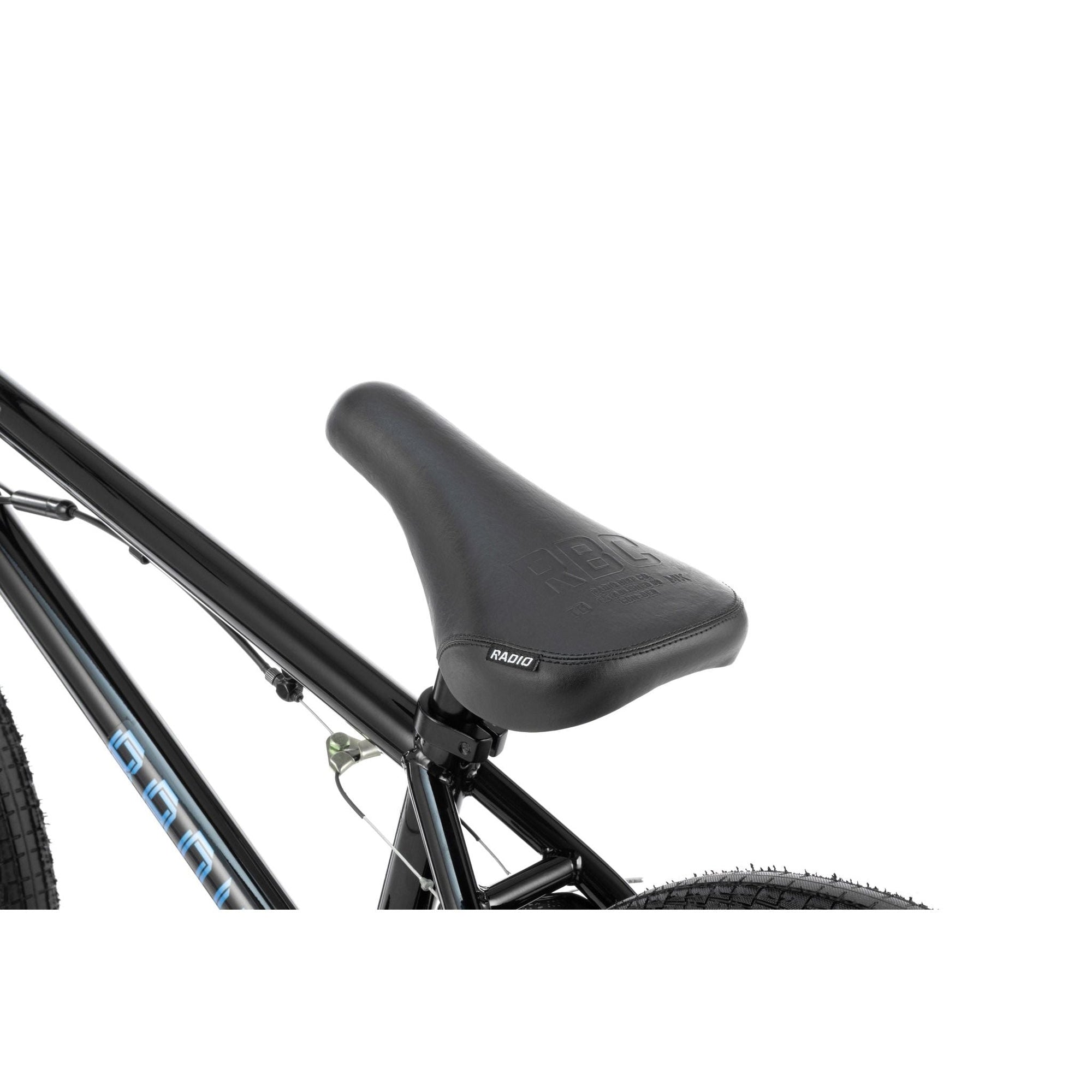

Seat: RADIO “CENTURY” combo – slim padded
Seat Clamp: RADIO – slim alloy
Tires: RADIO “ROOKIE” – 20"x2.2" (front & rear)
Weight: 13.04 kg / 28.74 lbs
Frame Geometry
| Measurement | Specification |
|---|---|
| Top Tube Length | 20" |
| Chain Stay Length | 13" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 7.8" |
Handlebar Geometry
| Measurement | Specification |
|---|---|
| Rise | 8.75" |
| Width | 29" |
| Backsweep | 11° |
| Upsweep | 2° |
