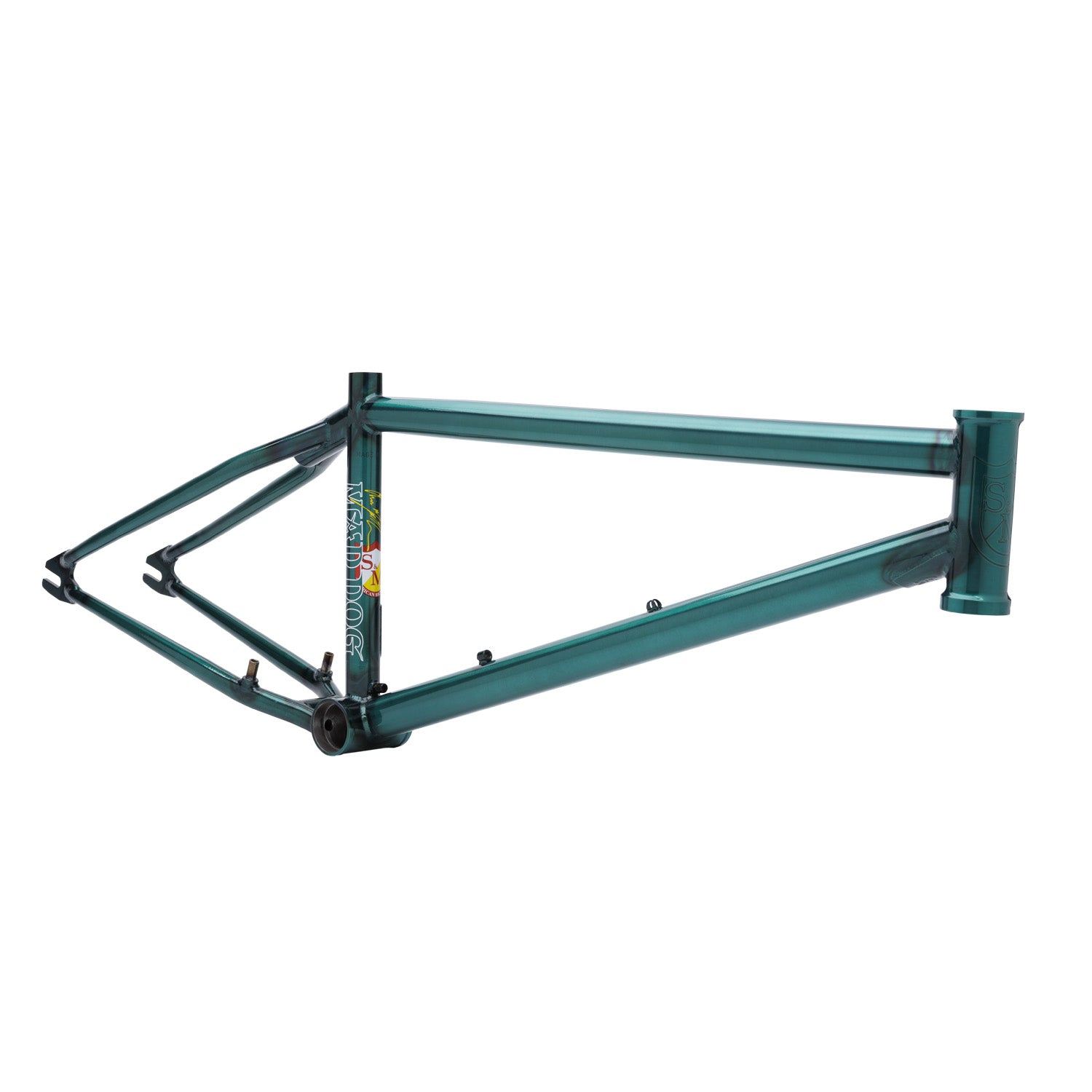

S&M Mad Dog 22" Frame 990 Mounts Trans Teal
S&M Mad Dog 22" Frame 990 Mounts Trans Teal
Throw a dog a wishbone, chain-stay 990 mounts and a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.
Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube
Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm and accepts 3/8″ axle.
| TOP TUBE LENGTHS | 21.75″, 22″, 22.25″, 22.5″ |
| REAR END LENGTH | 14.15″ |
| HEAD TUBE ANGLE | 74.25° |
| STANDOVER HEIGHT | 10″ |
| B.B. HEIGHT | 11.8″ |
| SEAT TUBE ANGLE | 71° |
| HEAD TUBE | 5″ Tall Integrated Campy Style |
| B.B. STYLE | Mid |
| BRAKE MOUNTS | Chain-stay 990 |
| DROPOUTS | 3/8″ |
| SEAT POST SIZE | 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp |
| WEIGHT | 5.1 lbs |
| MAX TIRE | 22X2.35″ |
| MAX SPROCKET | 39T |
