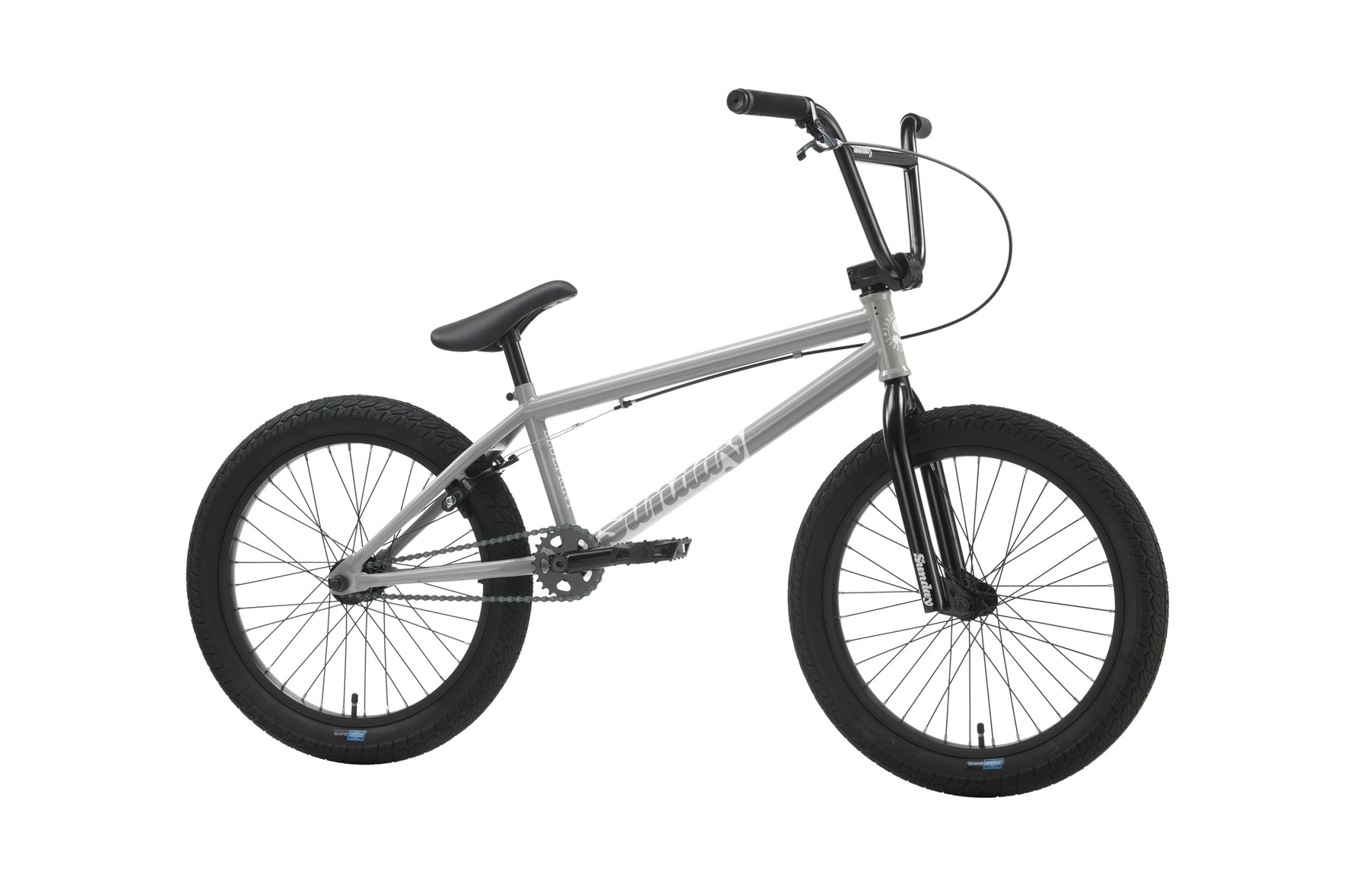

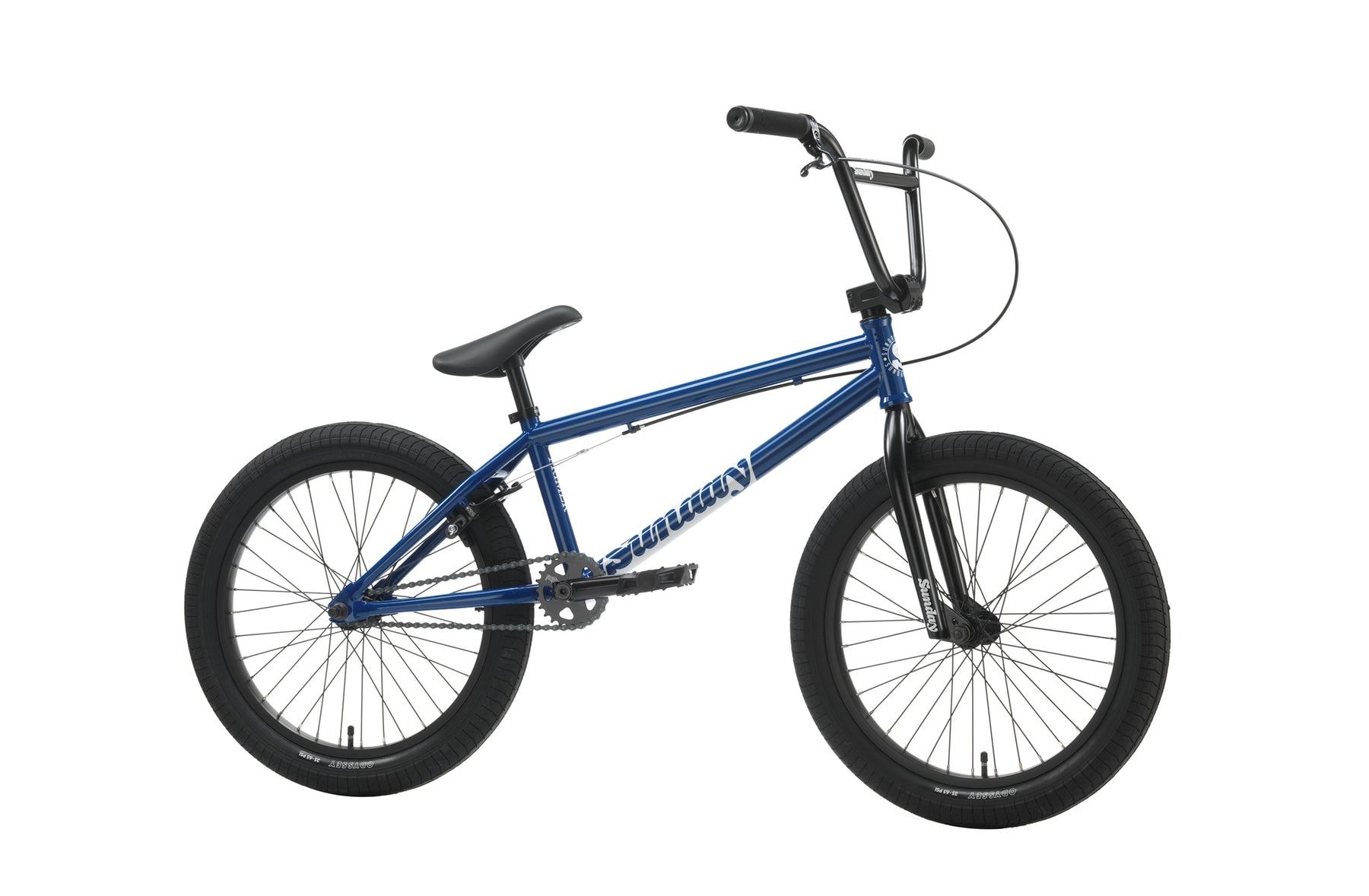

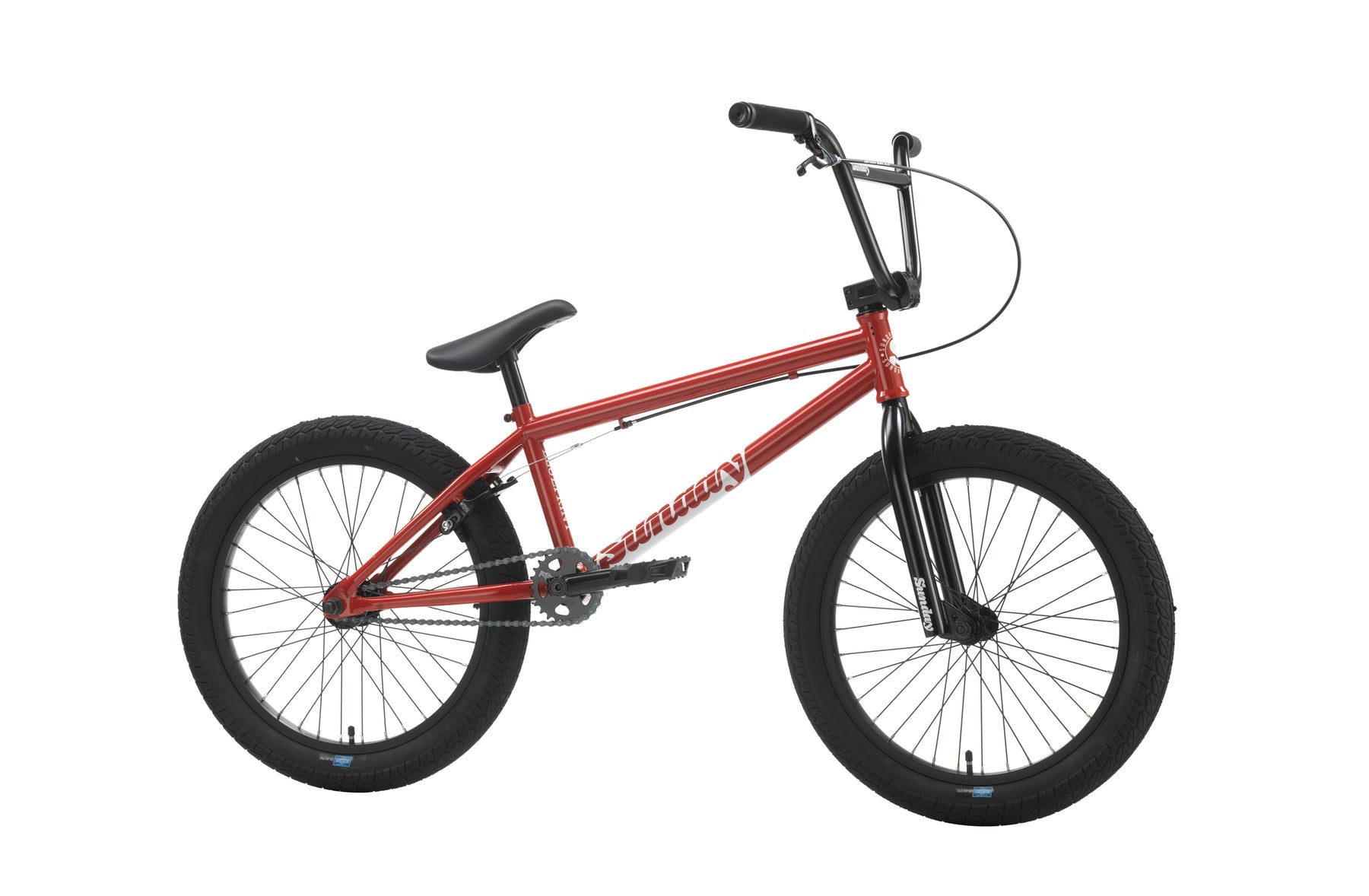

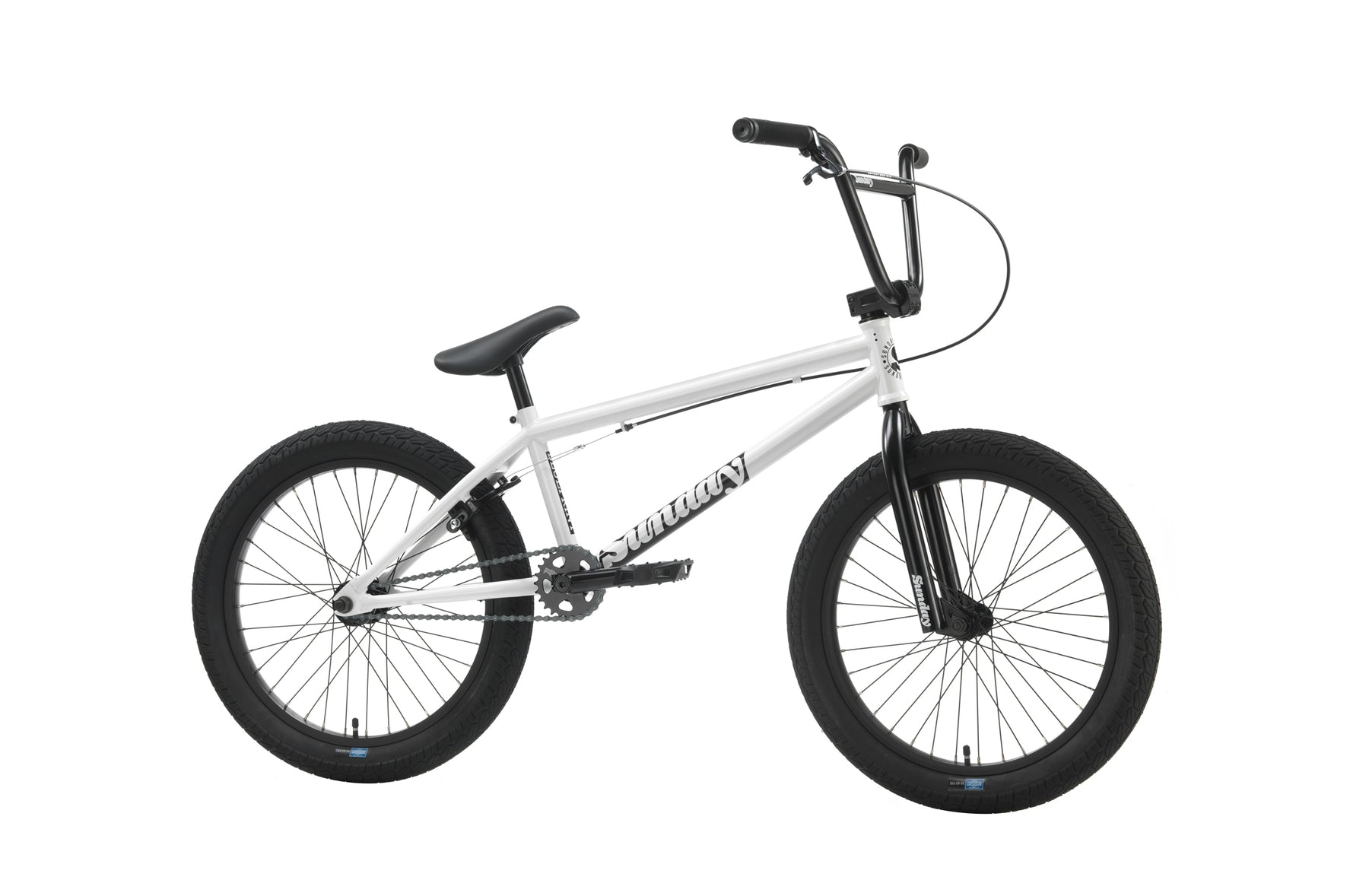

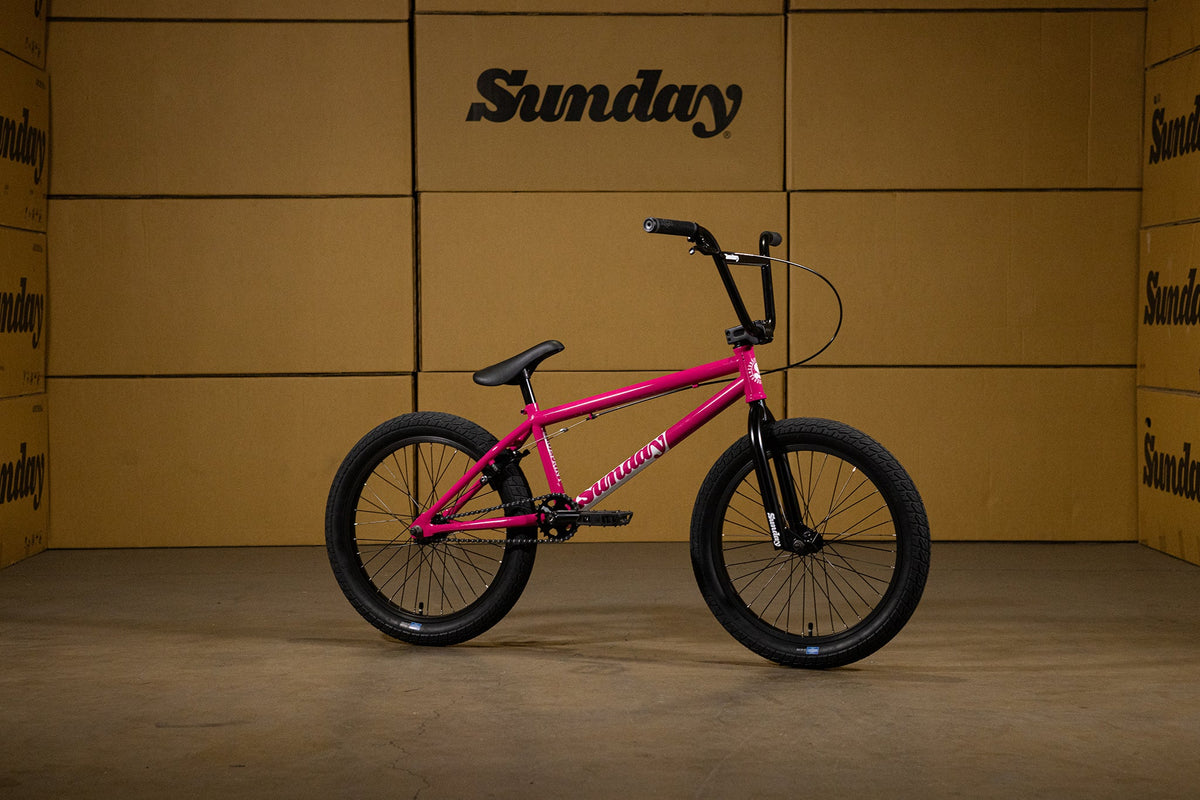

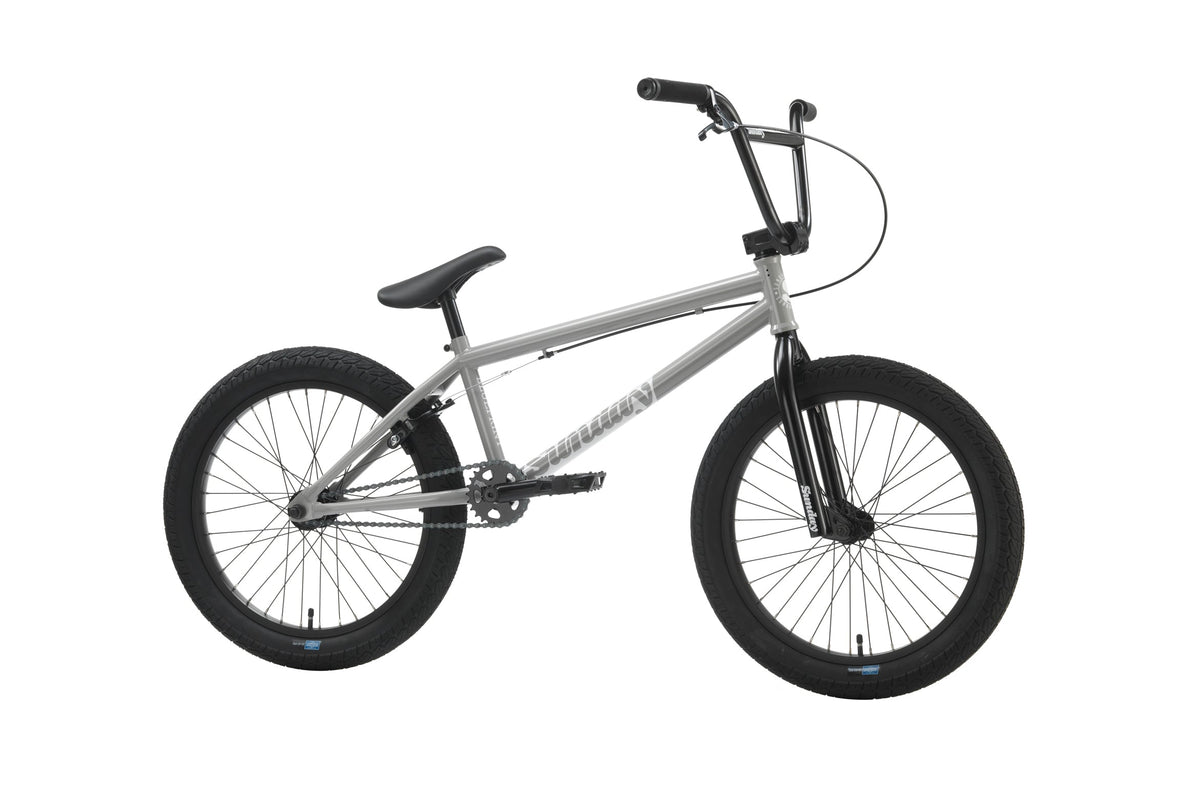

Sunday Blueprint 20" Complete BMX Bike
The Sunday Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.
This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you focused on the important part - riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.
Key Features
- Sunday Current 2.4"
- Odyssey Springfield Brakes
- FSA Integrated Headset
- Sunday Cornerstone Grips
- Sunday Freeze Front Load Stem
- Sunday Sabretooth Sprocket
- KMC S1 Chain
Specifications

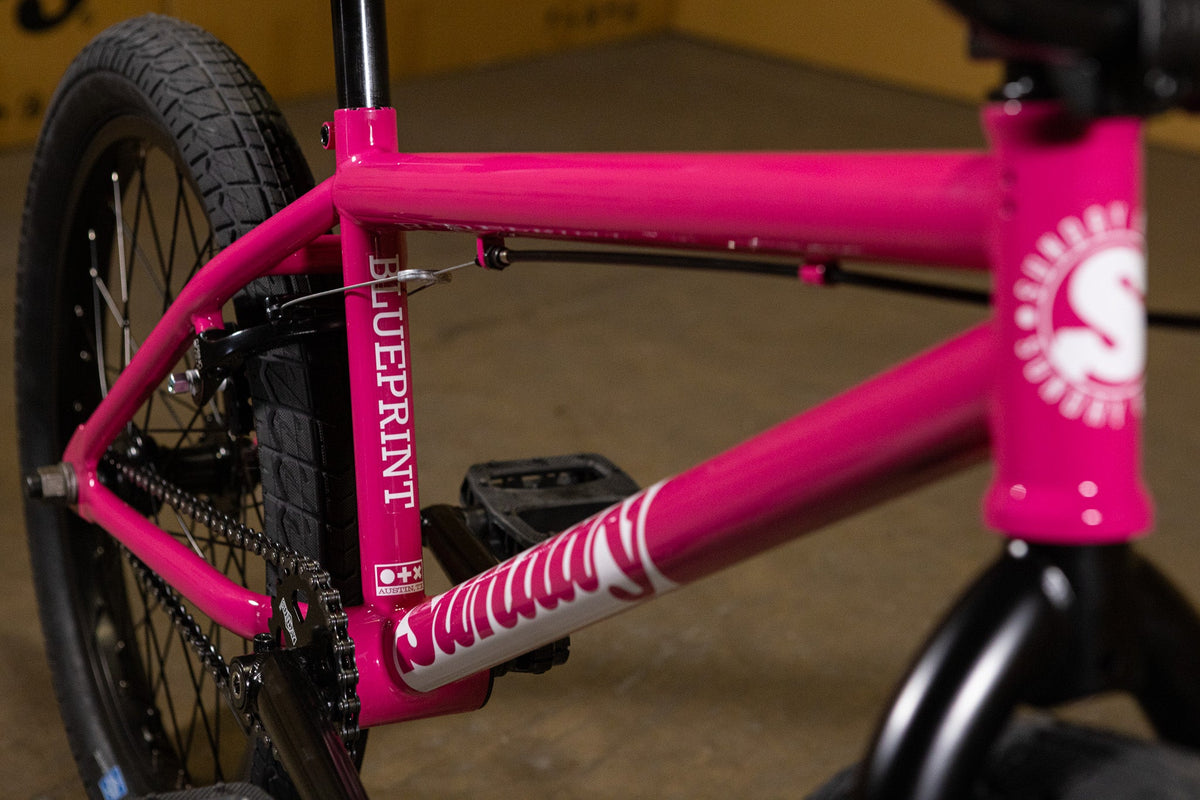

Frame: Sunday Blueprint, 20" or 20.5" top tube, integrated 1-1/8" head tube
Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load

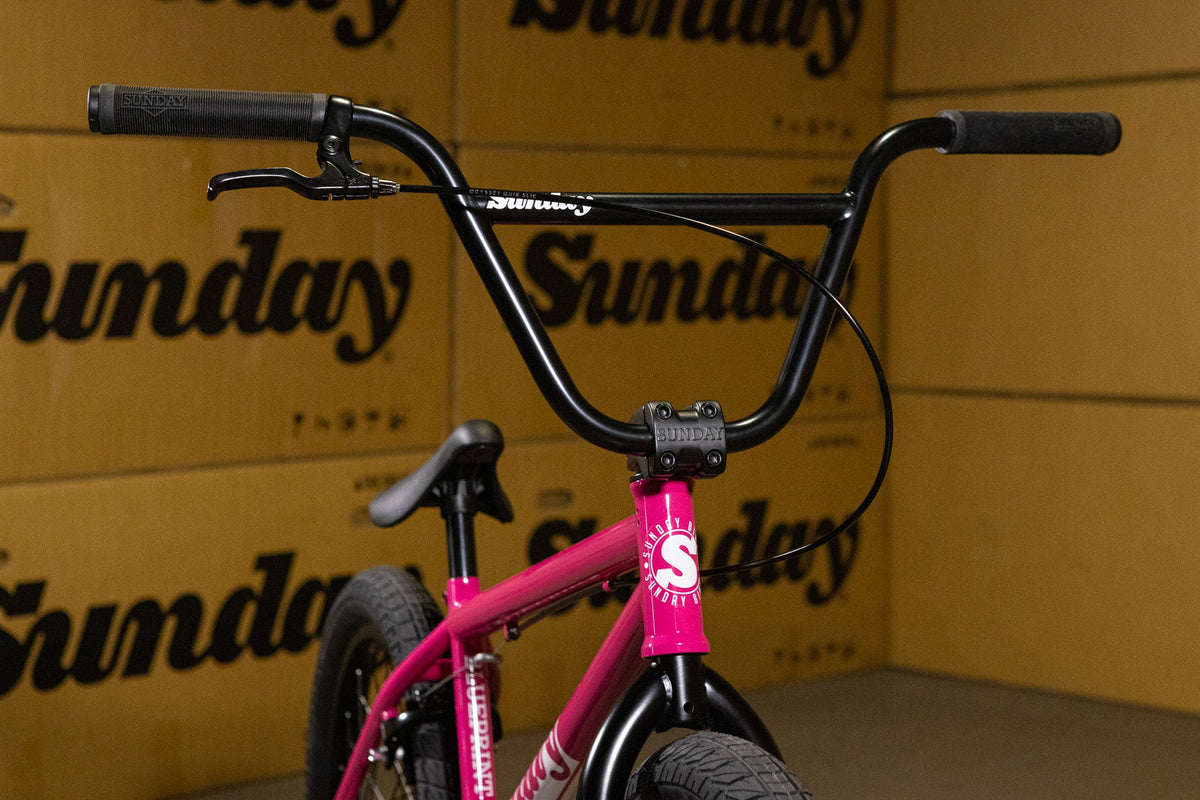

Handlebar: Sunday, 2-piece

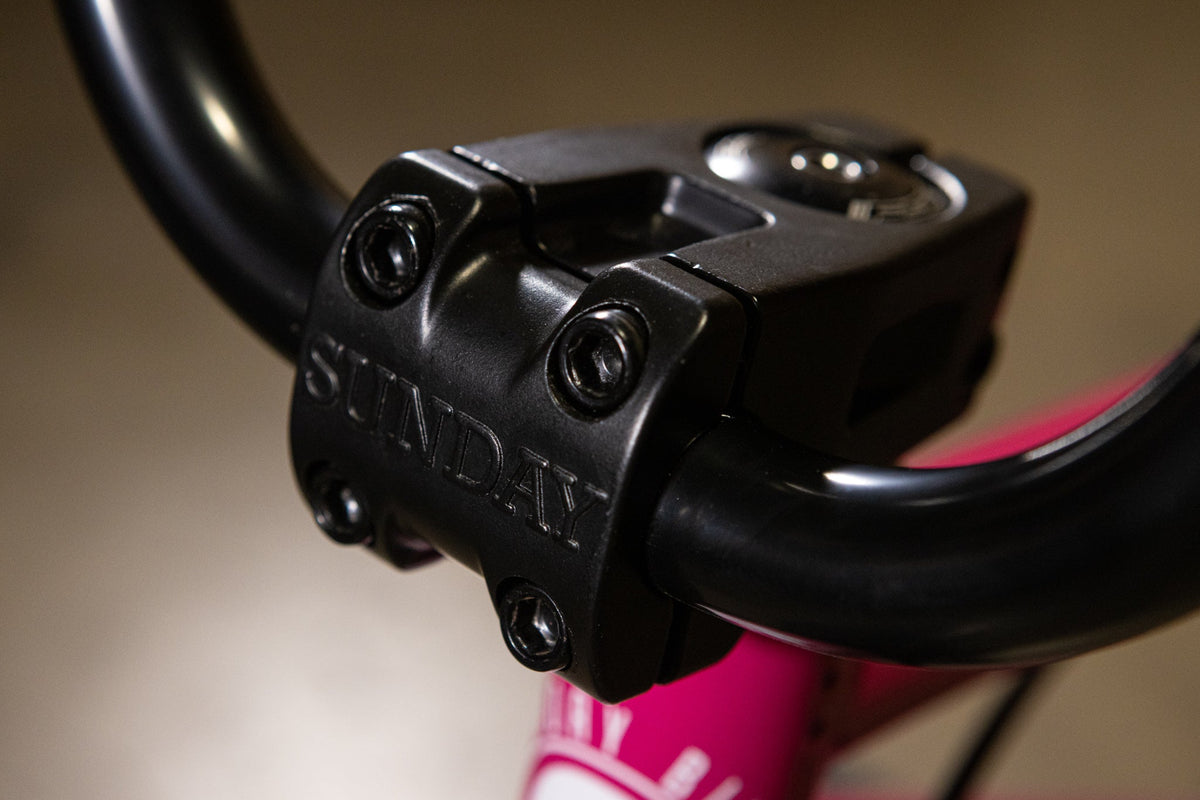

Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminum cap
Brake Lever: Aluminum, U-brake compatible

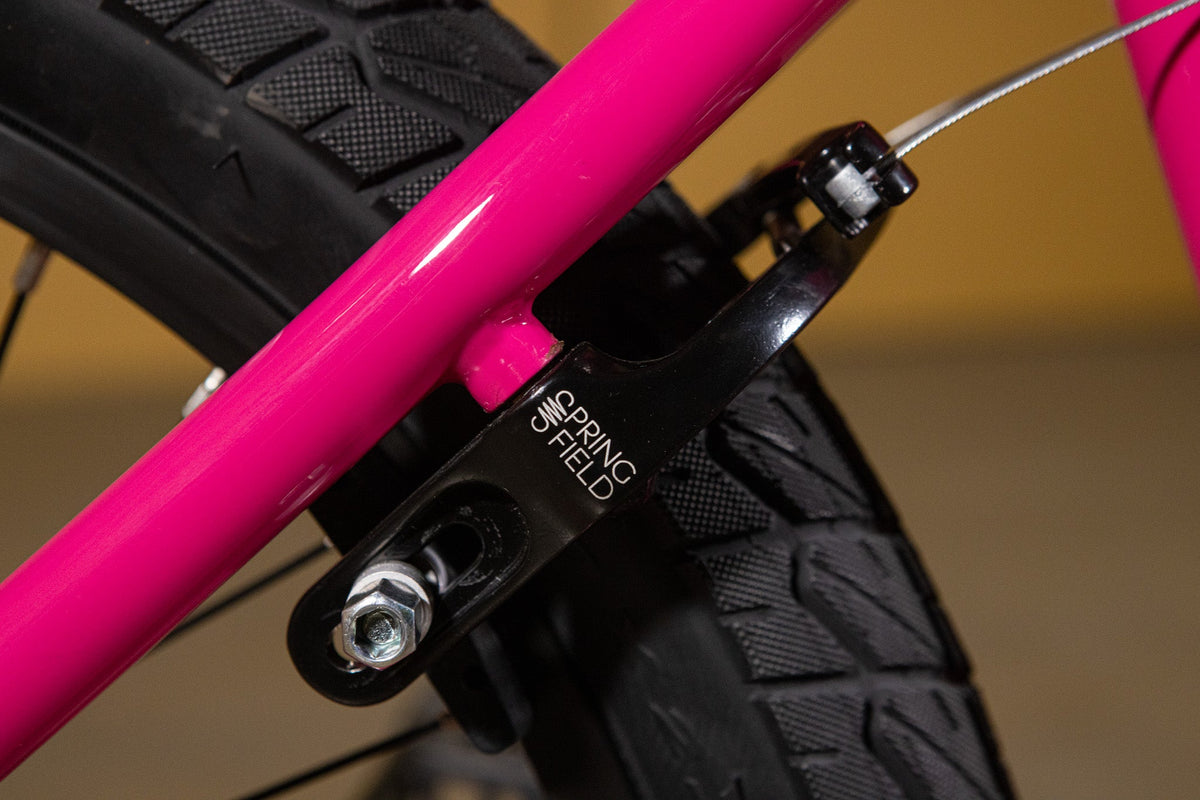

Brakes: Odyssey Springfield U-brake

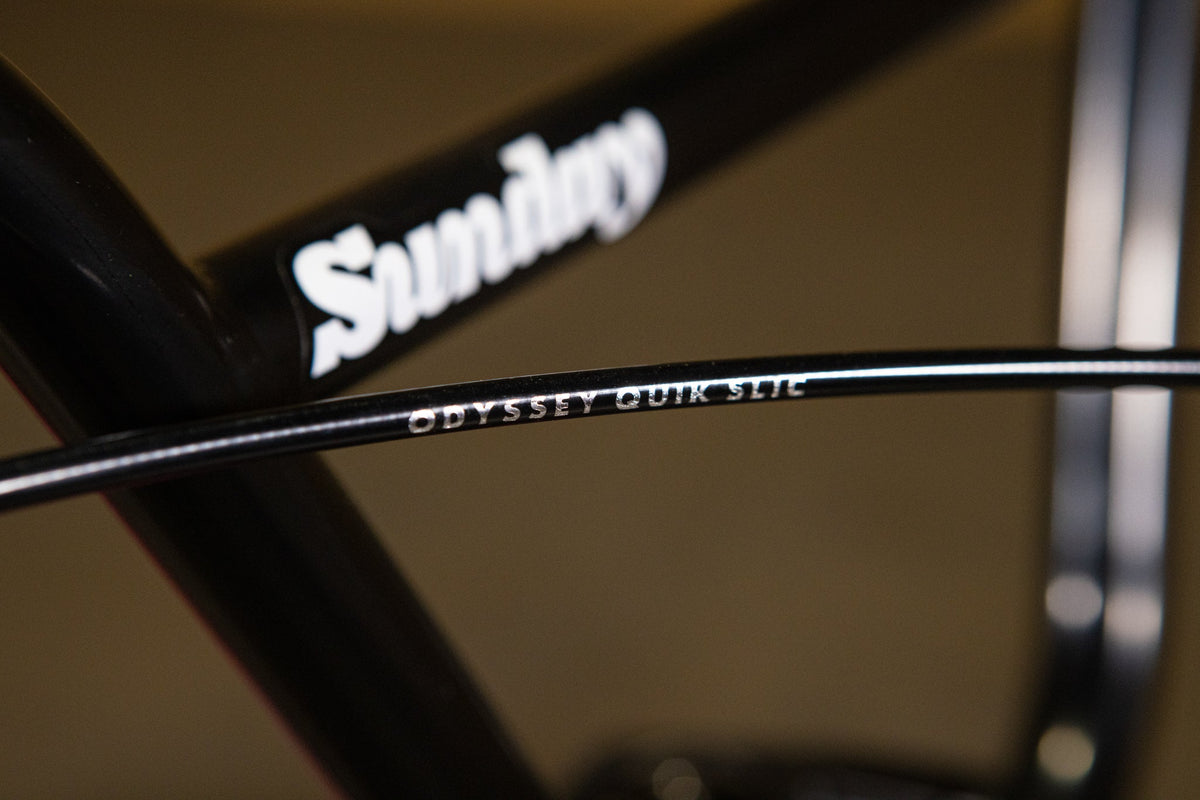

Brake Cable: Odyssey Quik Slic

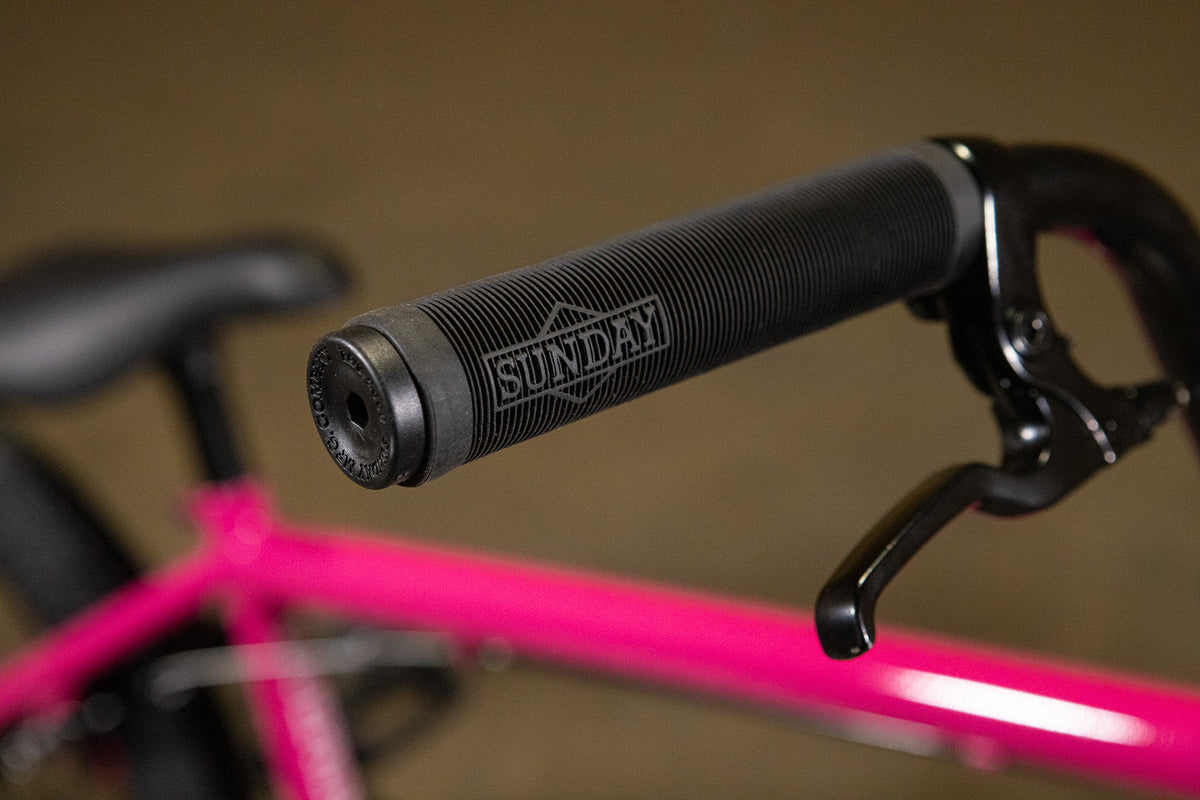

Grips: Sunday Cornerstone

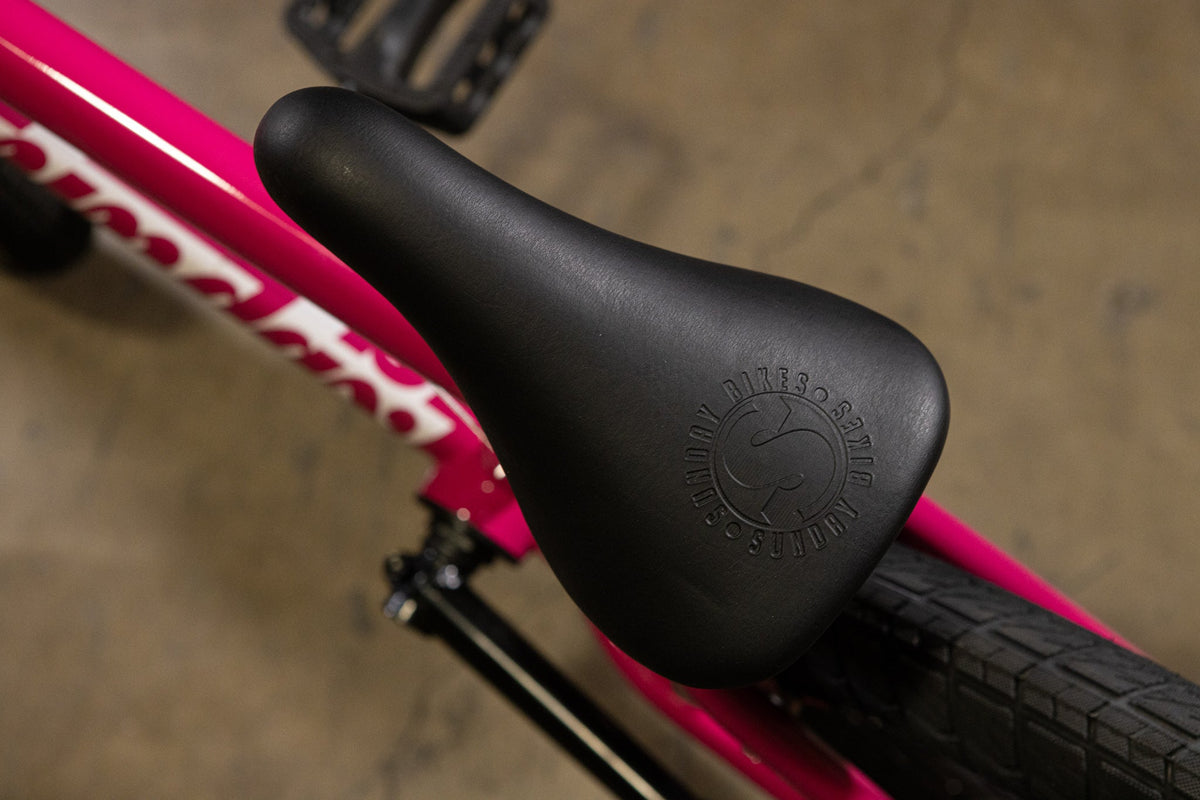

Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Integrated

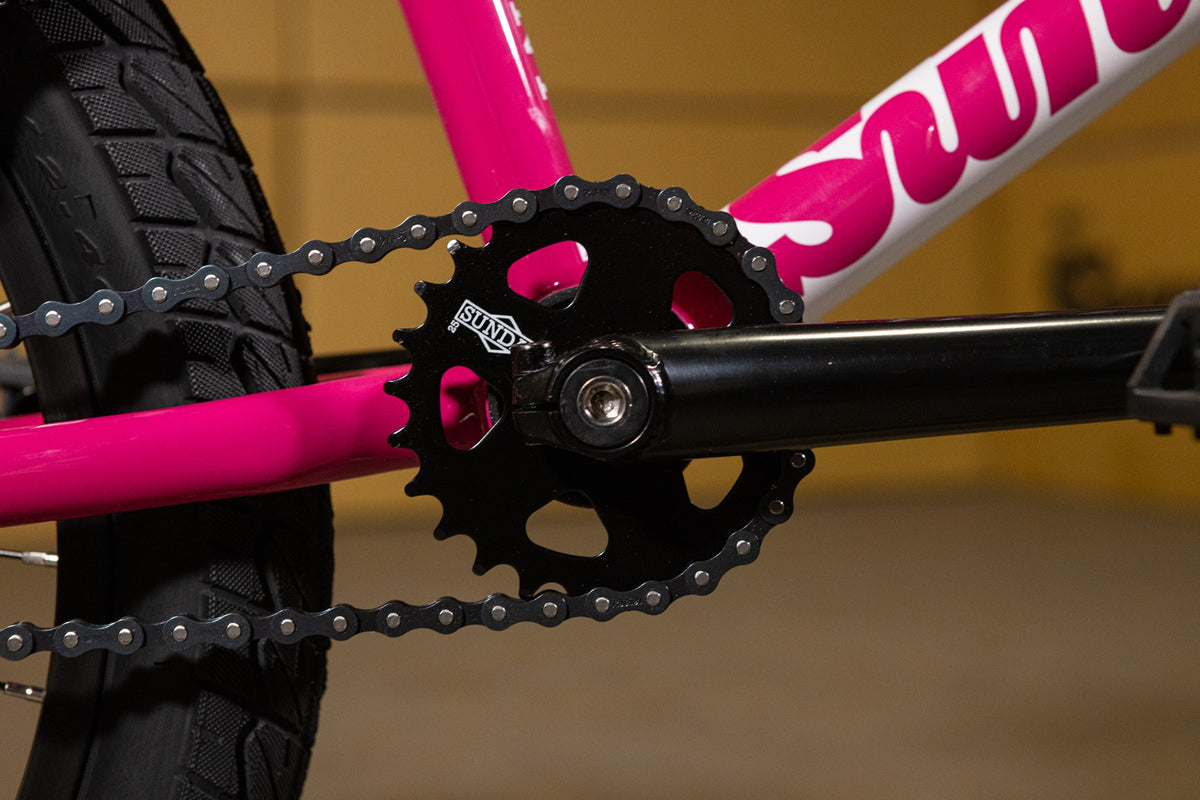

Sprocket: Sunday Sabretooth V2, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Loose-ball, American, 19mm

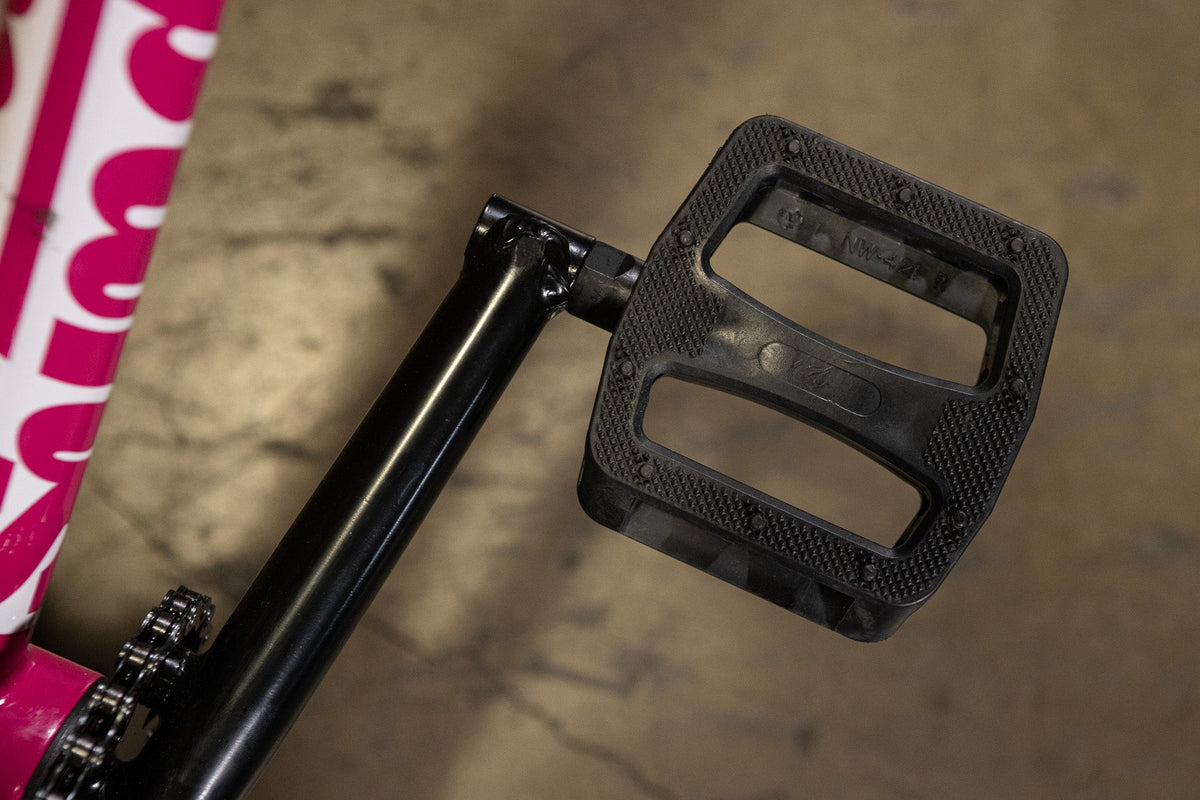

Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 20", 36H

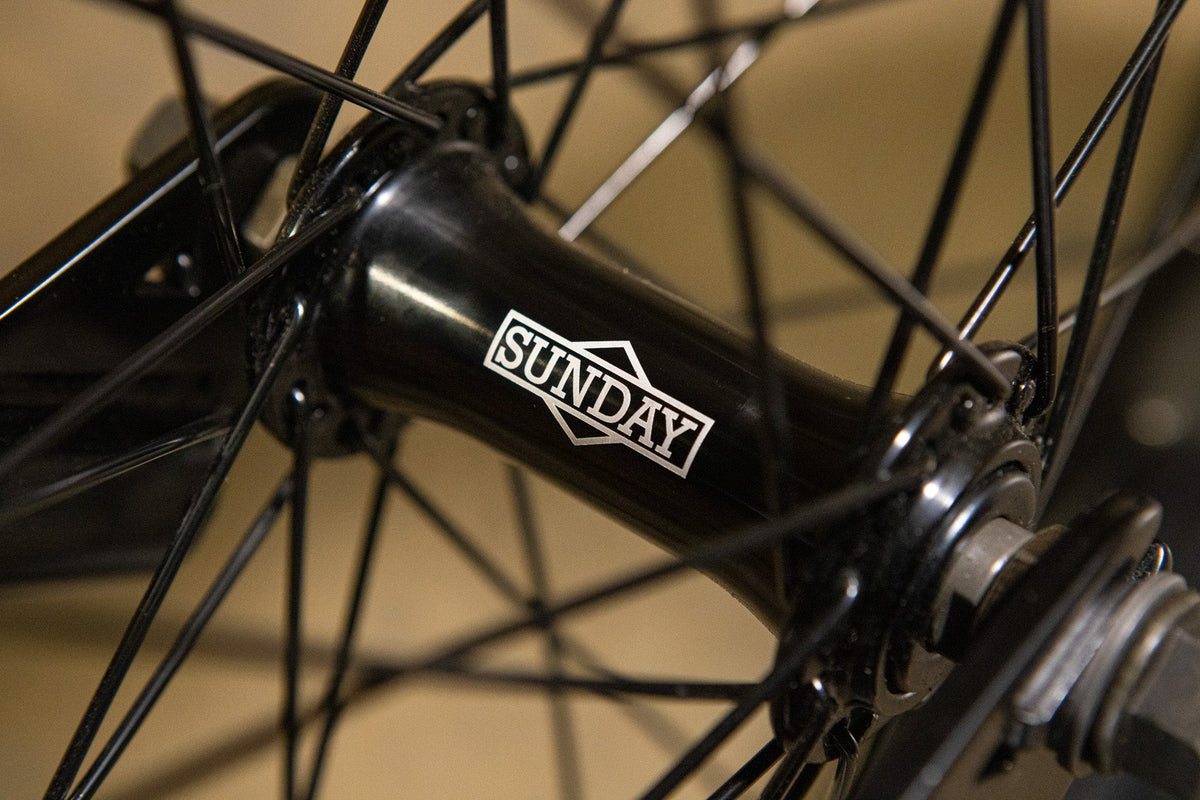

Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle
Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
Spokes: 14g steel, black

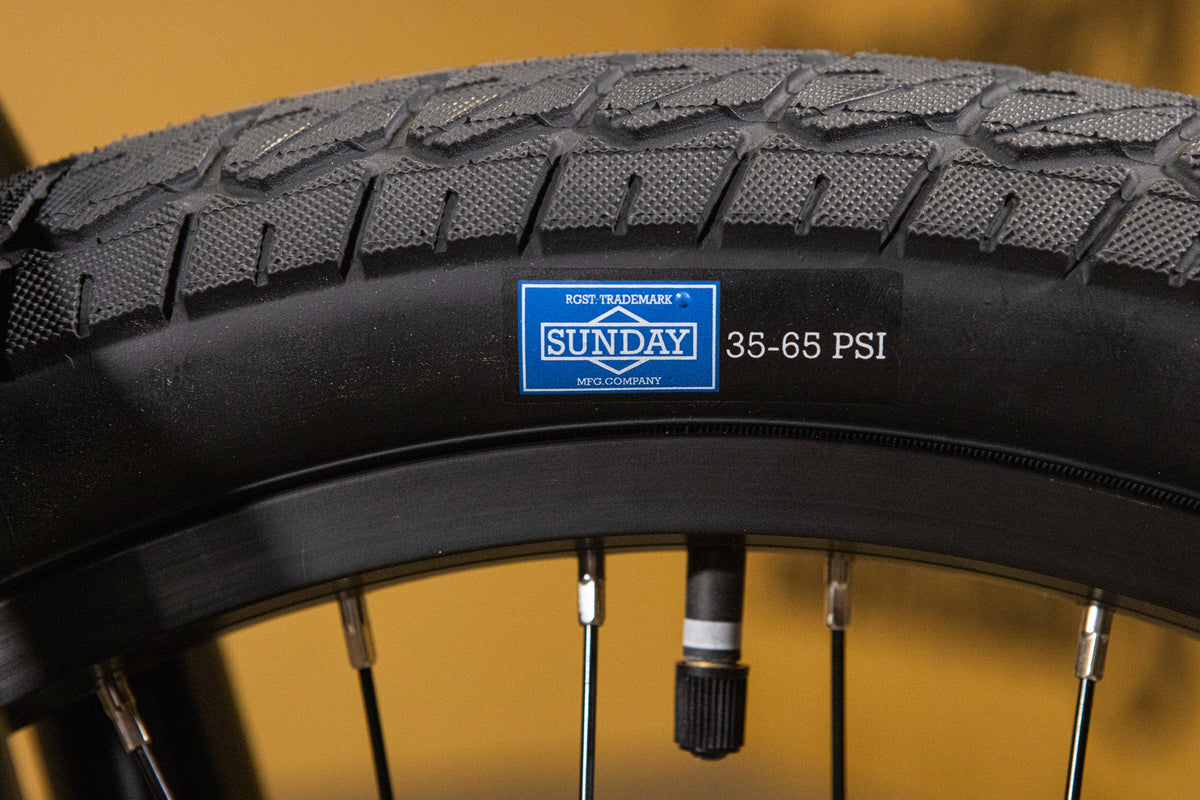

Tires: Sunday Current, 20 x 2.4" (F & R)
Chain: KMC S1
Approx. Weight: 26lbs (with brakes)
Frame Geometry
Top Tube Length: 20" or 20.5"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 8.75"
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
