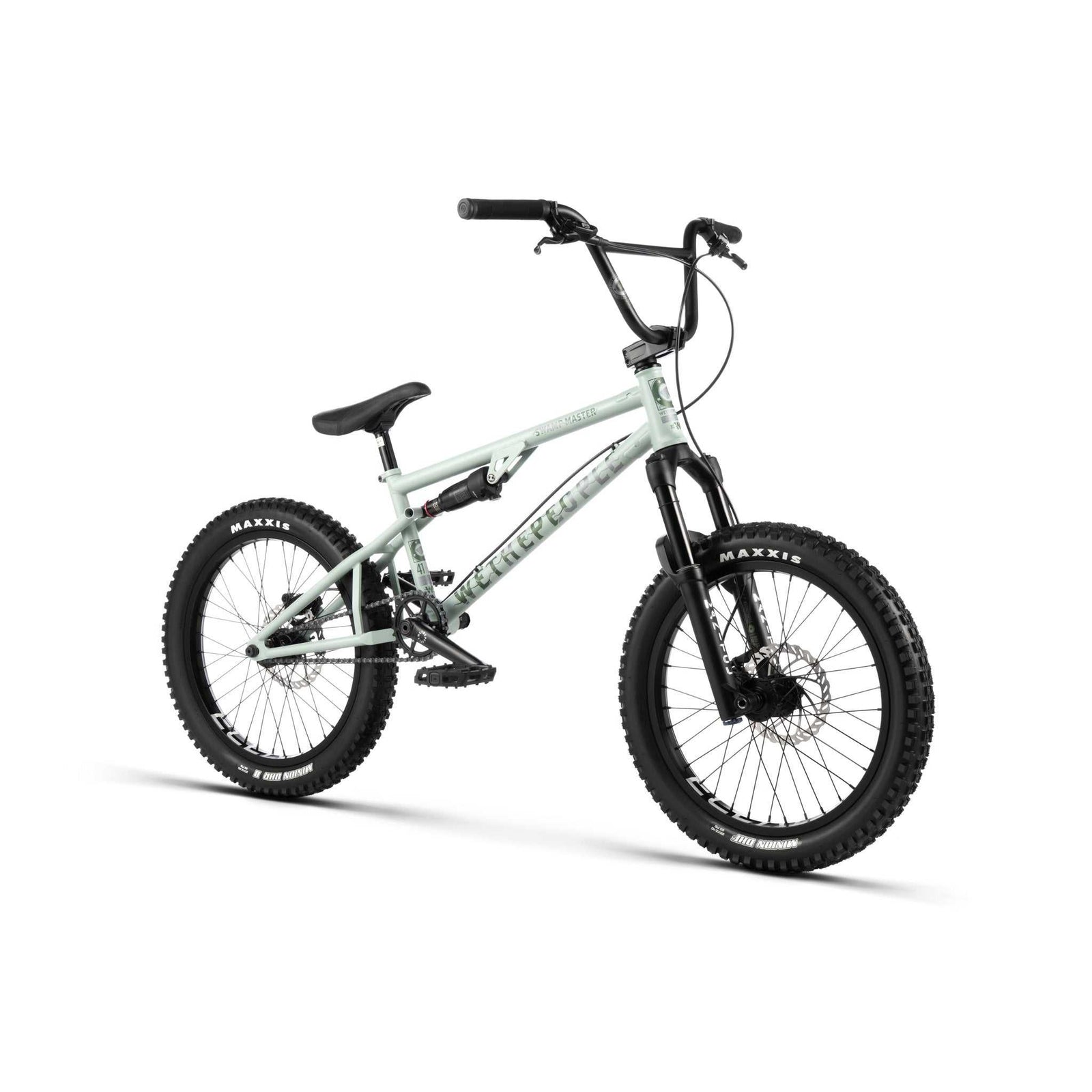

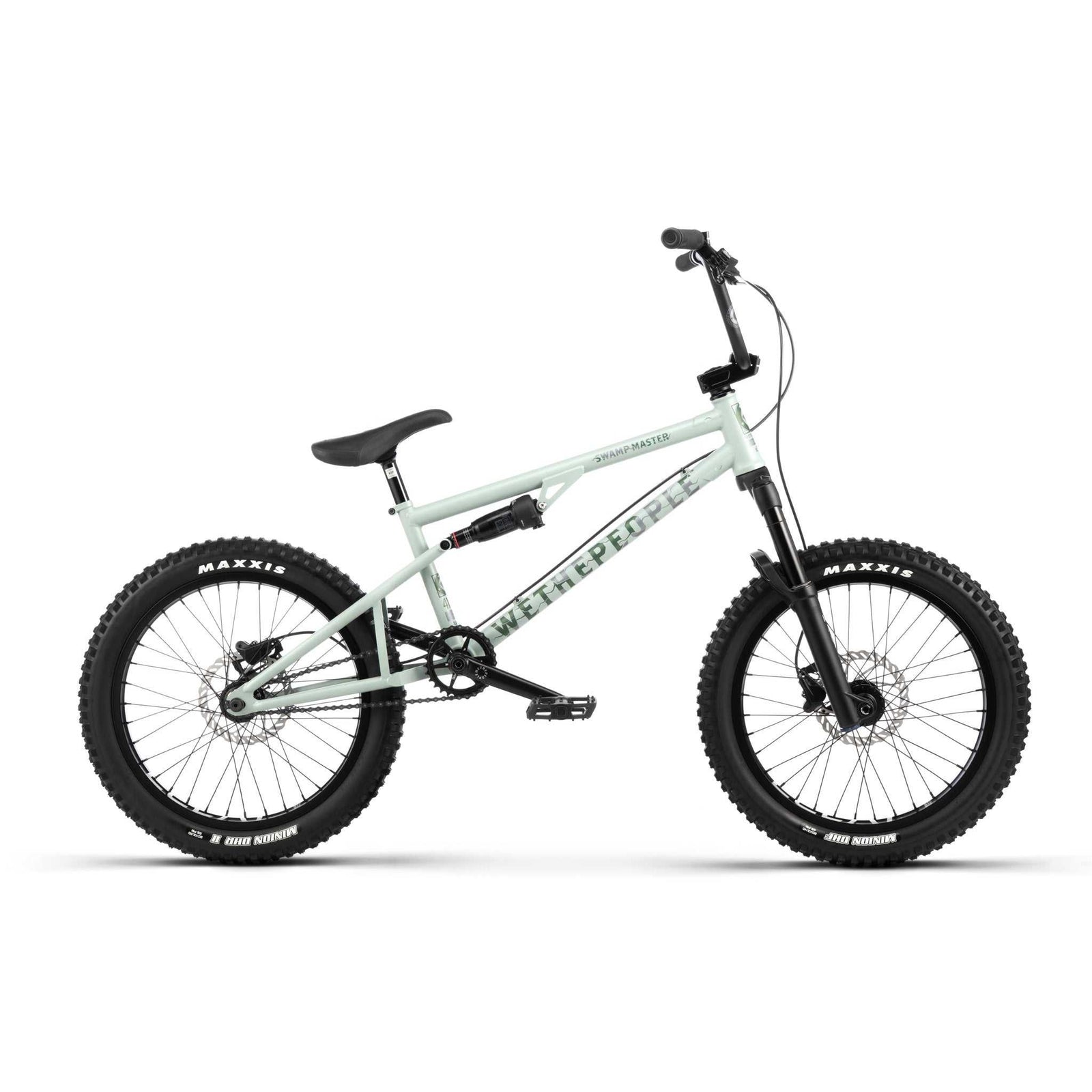

Wethepeople Swampmaster 20" Complete Bike
WeThePeople Swampmaster 20" Complete Bike
The WETHEPEOPLE SWAMPMASTER combines MTB versatility with BMX handling in one full-suspension package. German-engineered with premium BMX and MTB components from Maxxis and Manitou, it excels at both bike parks and dirt jumps, pioneering a new category in cycling design.

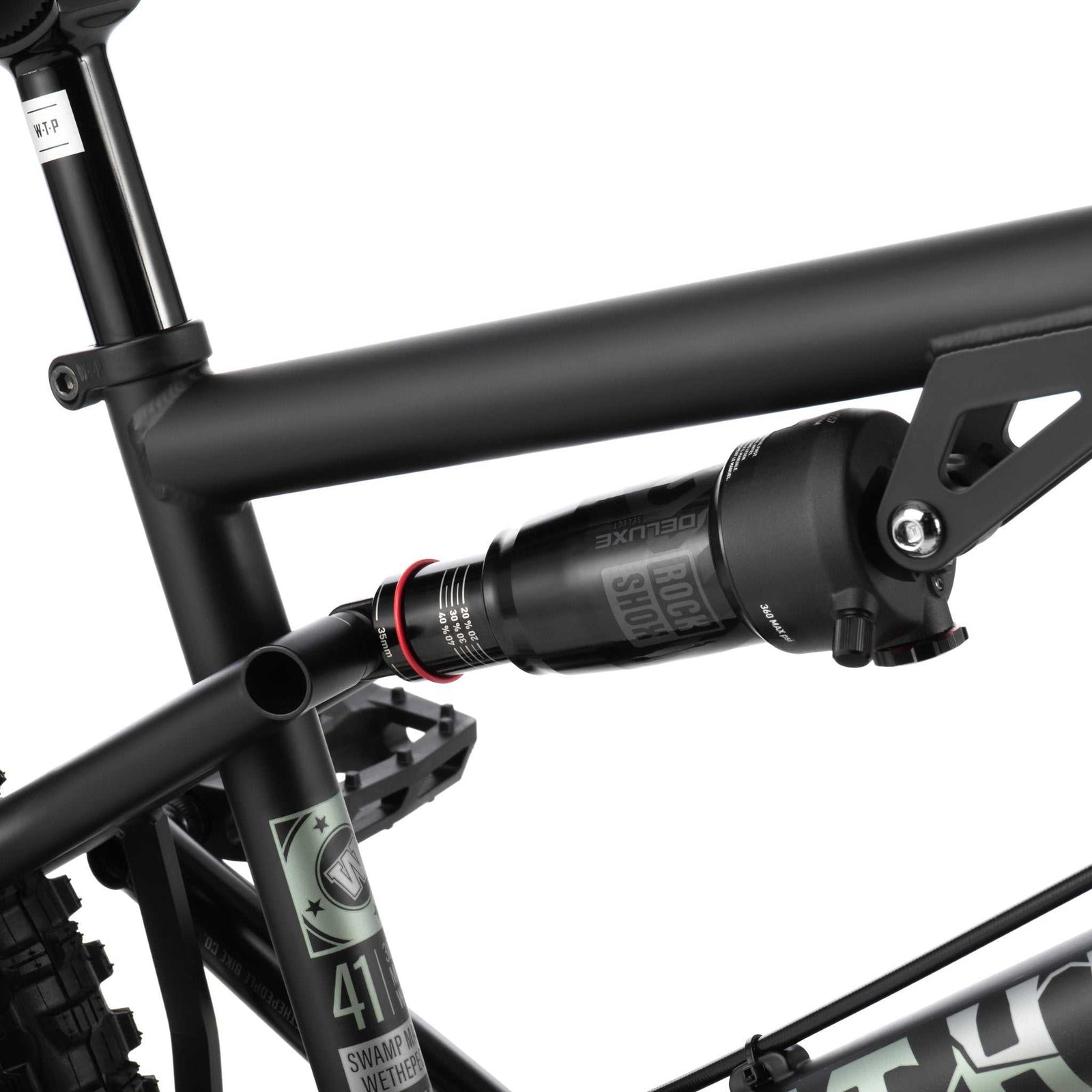

- FRAME: WETHEPEOPLE "SWAMP MASTER" frame, 4130 full crmo, Rockshox Deluxe Select 170x 35mm

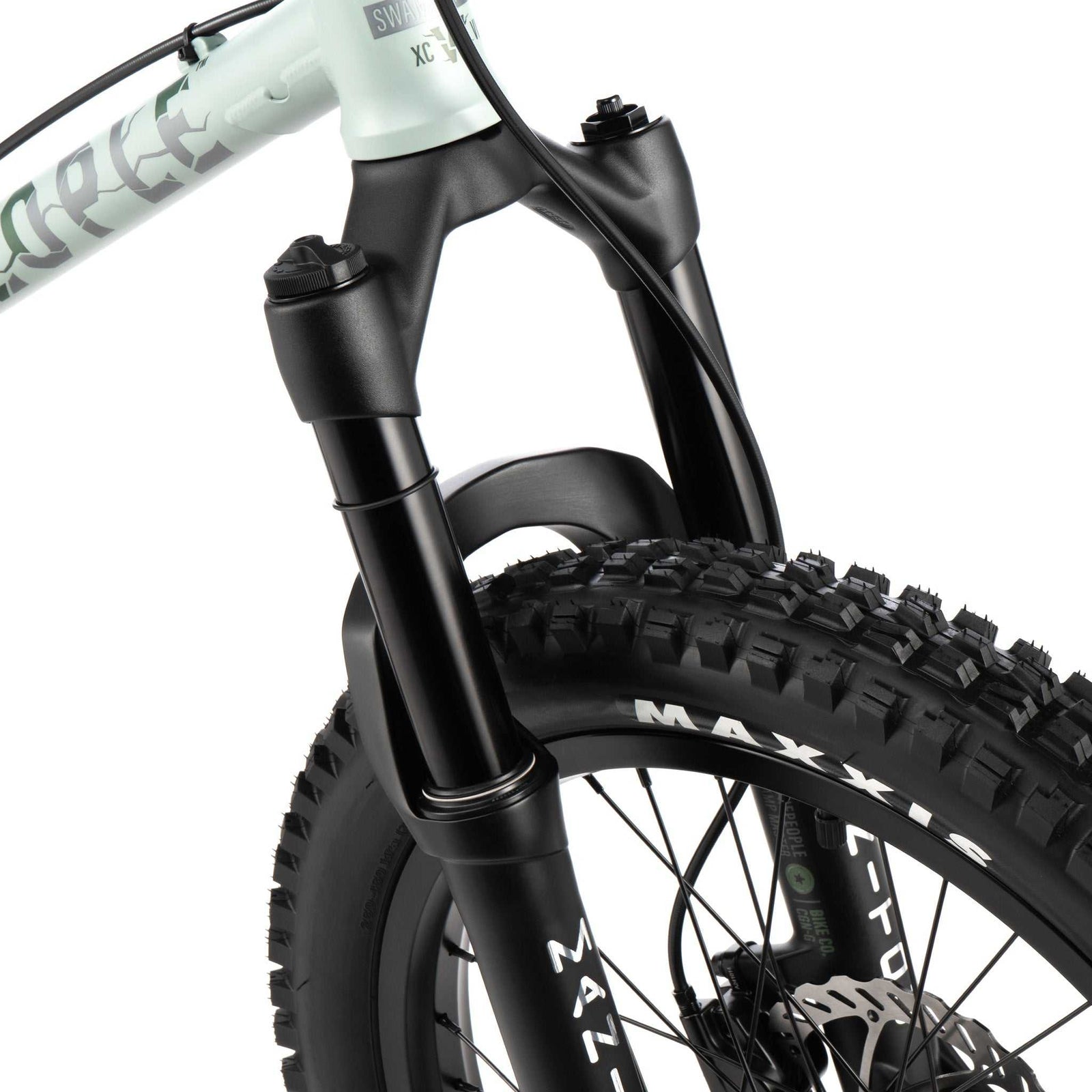

- FORK: MANITOU "MACHETE J-UNIT EXPERT" fork, adult tuning , 100mm Travel
- BARS: WETHEPEOPLE "SWAMP MASTER" bar, post liquid heat-treated 4130 crmo
- GRIPS: SALT "EX" grips, 154mm, flangless
- STEM: ÉCLAT "BURNS" topload stem, cnc alloy, 50mm reach, 23mm rise
- HEADSET: WETHEPEOPLE "COMPACT" tapered int. headset, sealed bearing
- LEVER: BENGAL "ARES 3" disc brake levers
- BRAKES: BENGAL "ARES 3" hydraulic disc brakes, 160 mm rotors
- CRANKS: WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
- BB: WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
- PEDALS: WETHEPEOPLE "LOGIC" pedals, nylon/fiberglass
- CHAIN: ÉCLAT "DIESEL" chain
- SPROCKET: WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 28t
- DRIVER: 1pc cassette driver, 9t, sealed bearing
- FRONT HUB: ÉCLAT "EXILE" disc front hub, BOOST 120mm, fully sealed, 15mm thru axle, 36h
- REAR HUB: ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h
- FRONT RIM: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
- REAR RIM: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
- SEAT: ÉCLAT "BIOS" pivotal seat, slim padded
- SEAT POST: WETHEPEOPLE "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy
- SEAT CLAMP: integrated seat clamp
- TIRES: MAXXIS "MINION DHF" 20x2.4 front, MAXXIS "MINION DHR II" 20x2.3 tires
- WEIGHT: 14.5kg / 21.97lbs
- Matt Black 21.5"TT
FRAME GEOMETRY
- TOP TUBE LENGTH: 21.5"
- CHAIN STAY LENGTH: 14.1"-14.8"
- HEAD TUBE ANGLE: 71°
- SEAT TUBE ANGLE: 70°
- BOTTOM BRACKET HEIGHT: 12.15°
- STAND OVER HEIGHT: 9.5"
- HANDLEBAR GEOMETRY
- BAR RISE: 8"
- BAR WIDTH: 29.15"
- BAR BACK SWEEP: 11°
- BAR UPSWEEP: 2.5°
